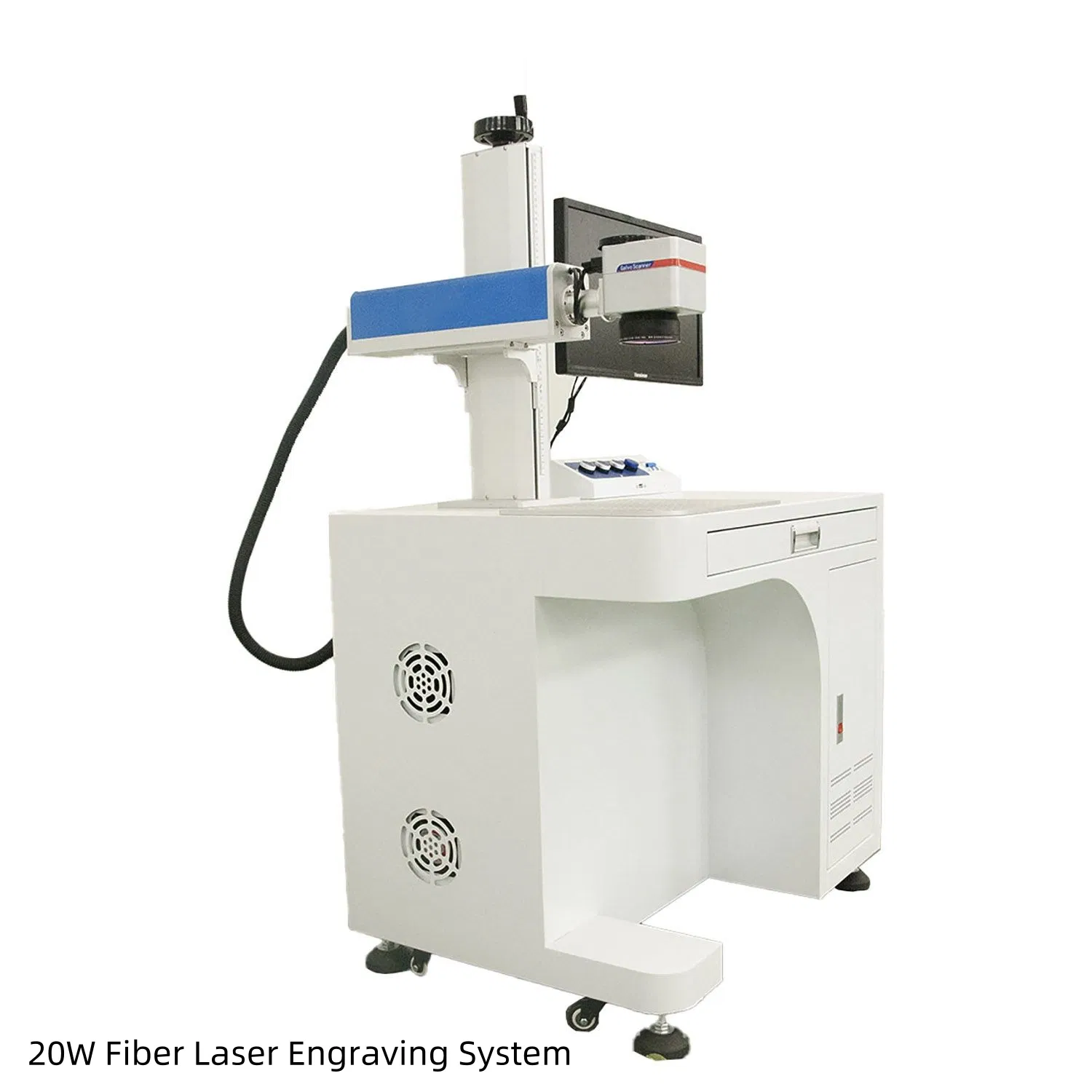

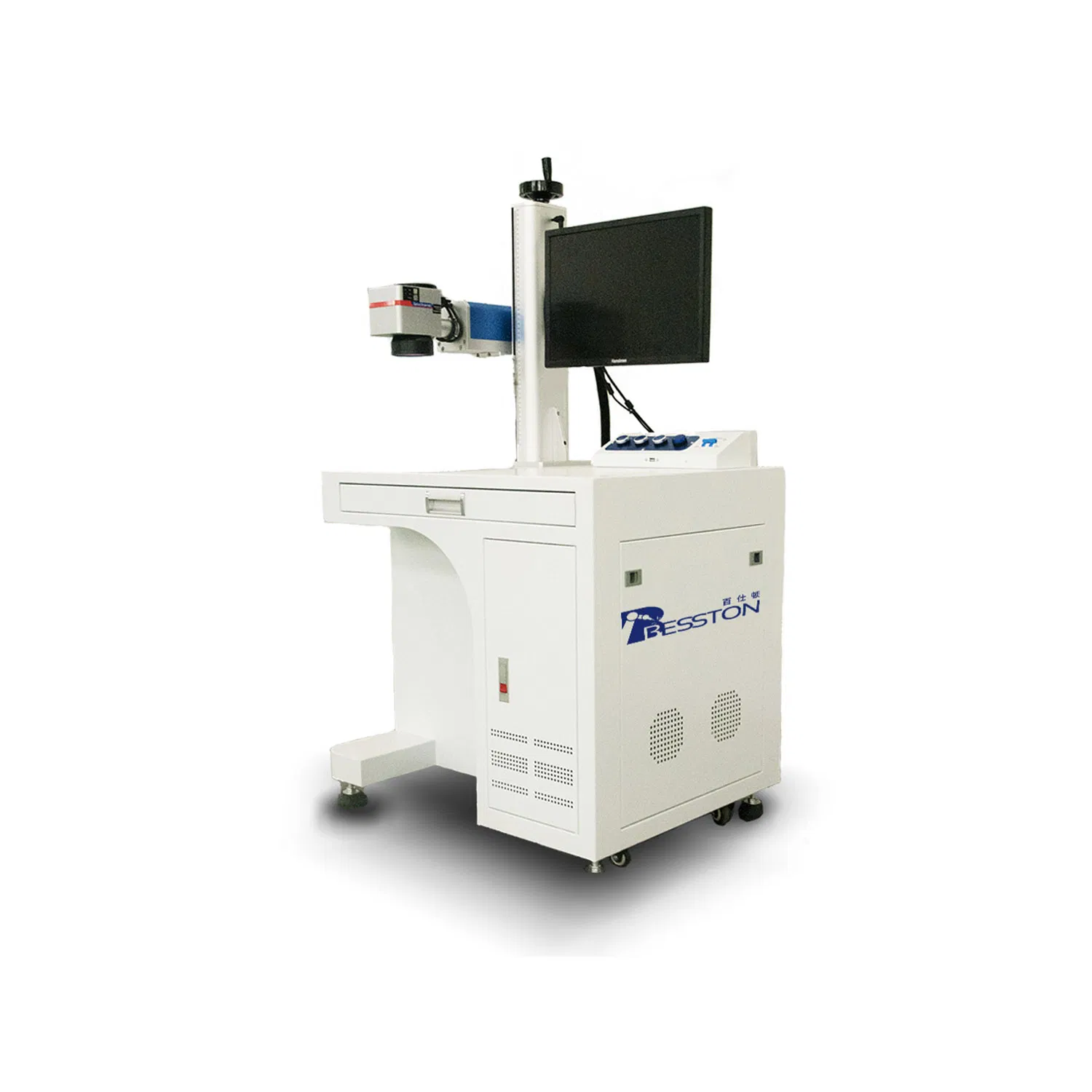

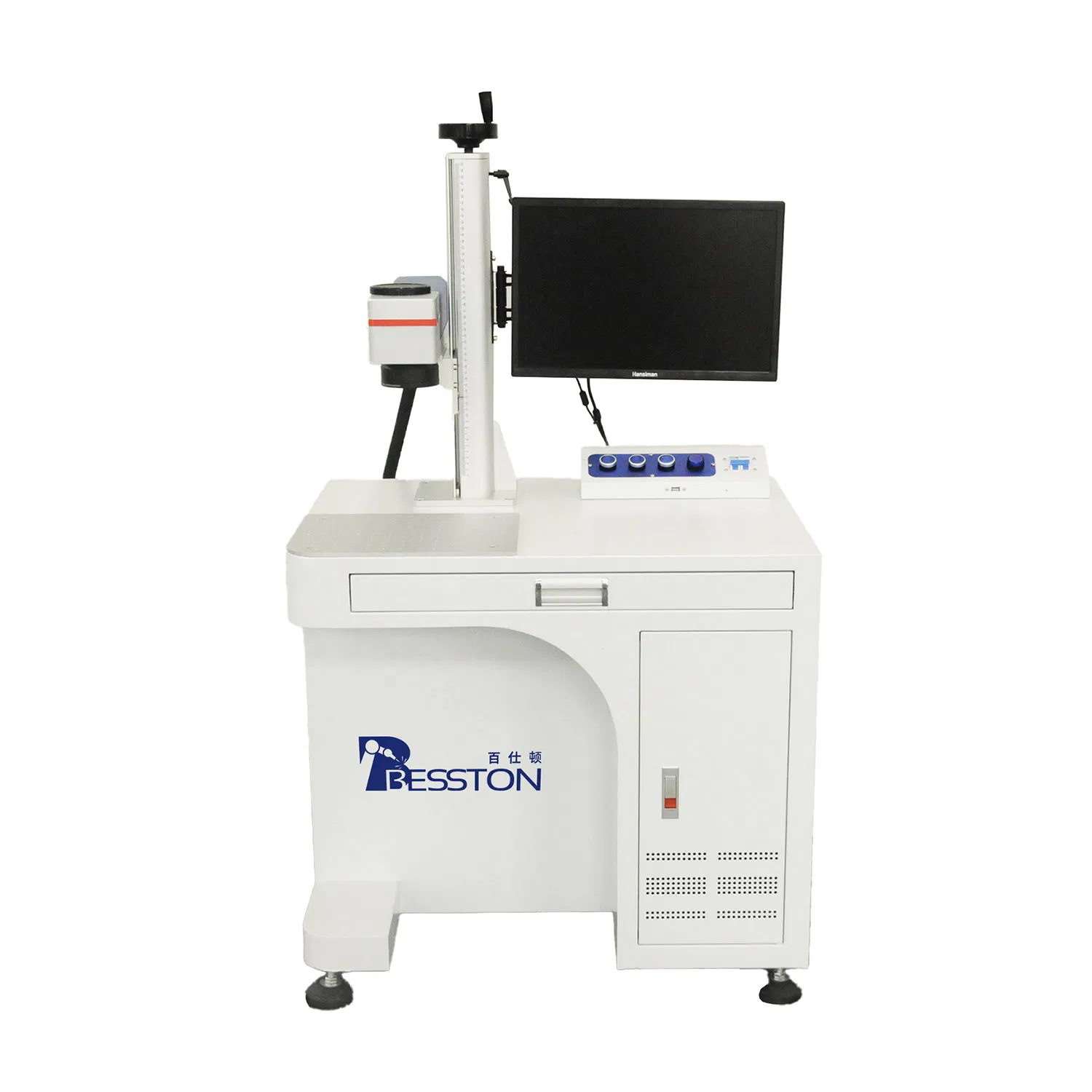

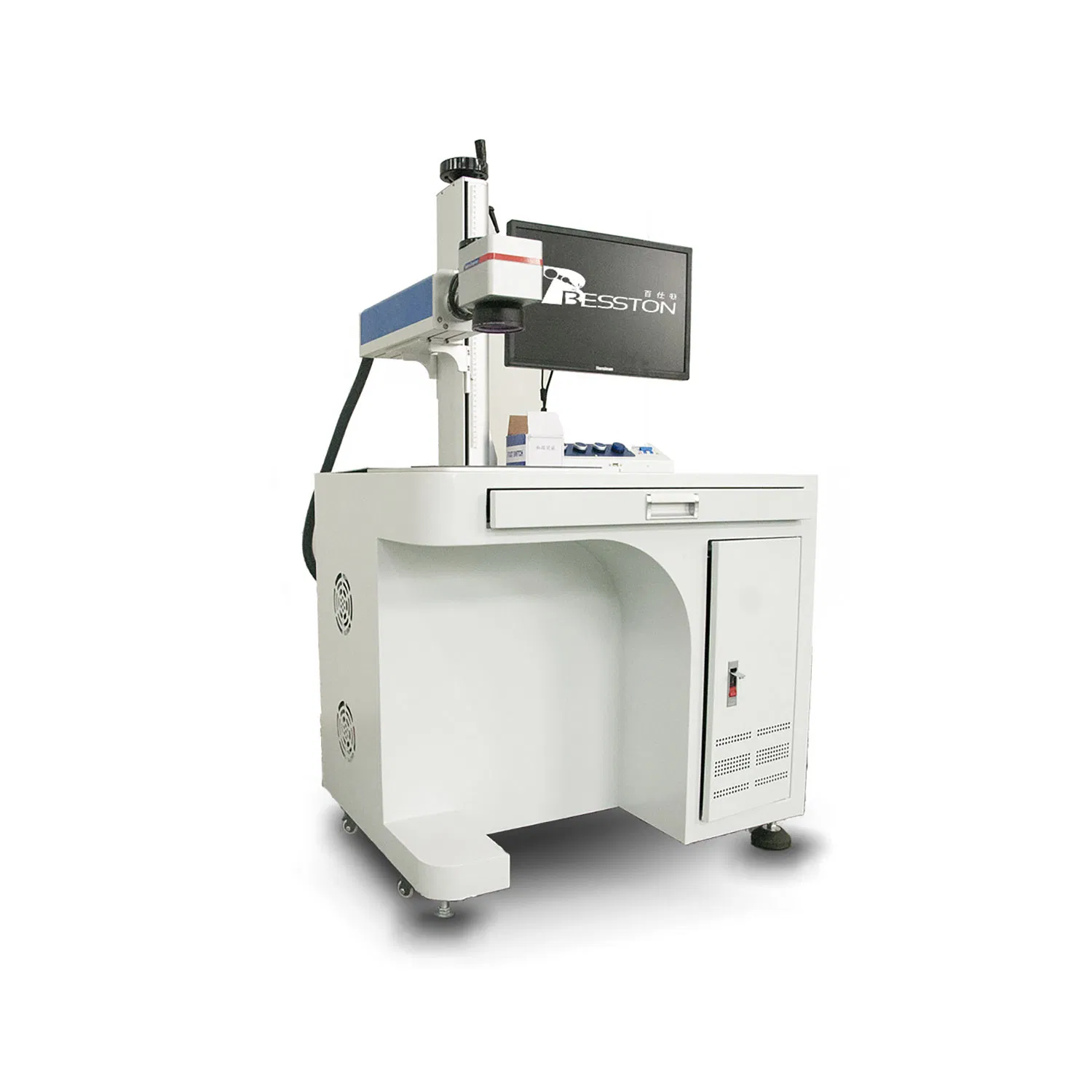

Professional Grade 20W Fiber Laser Engraving System Flm-20W

1 / 5

Professional Grade 20W Fiber Laser Engraving System Flm-20W

Customization:	Available
After-sales Service:	24-Hour After-Sales Service
Warranty:	a Year

Send Inquiry

Product Description

Basic Information

Model NO.

FLM-20W

Laser Visibility

Invisible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

Fiber Laser

Marking Method

Scanning Marking

Average Power

20W

Marking Depth

0.01-0.4mm

Repeatability

0.002mm

Origin

China

HS Code

8472909000

Logistics Info:
Package Size: 86.00cm * 73.00cm * 119.00cm | Gross Weight: 120.000kg | Transport Package: Wooden Box

Product Description & Specifications

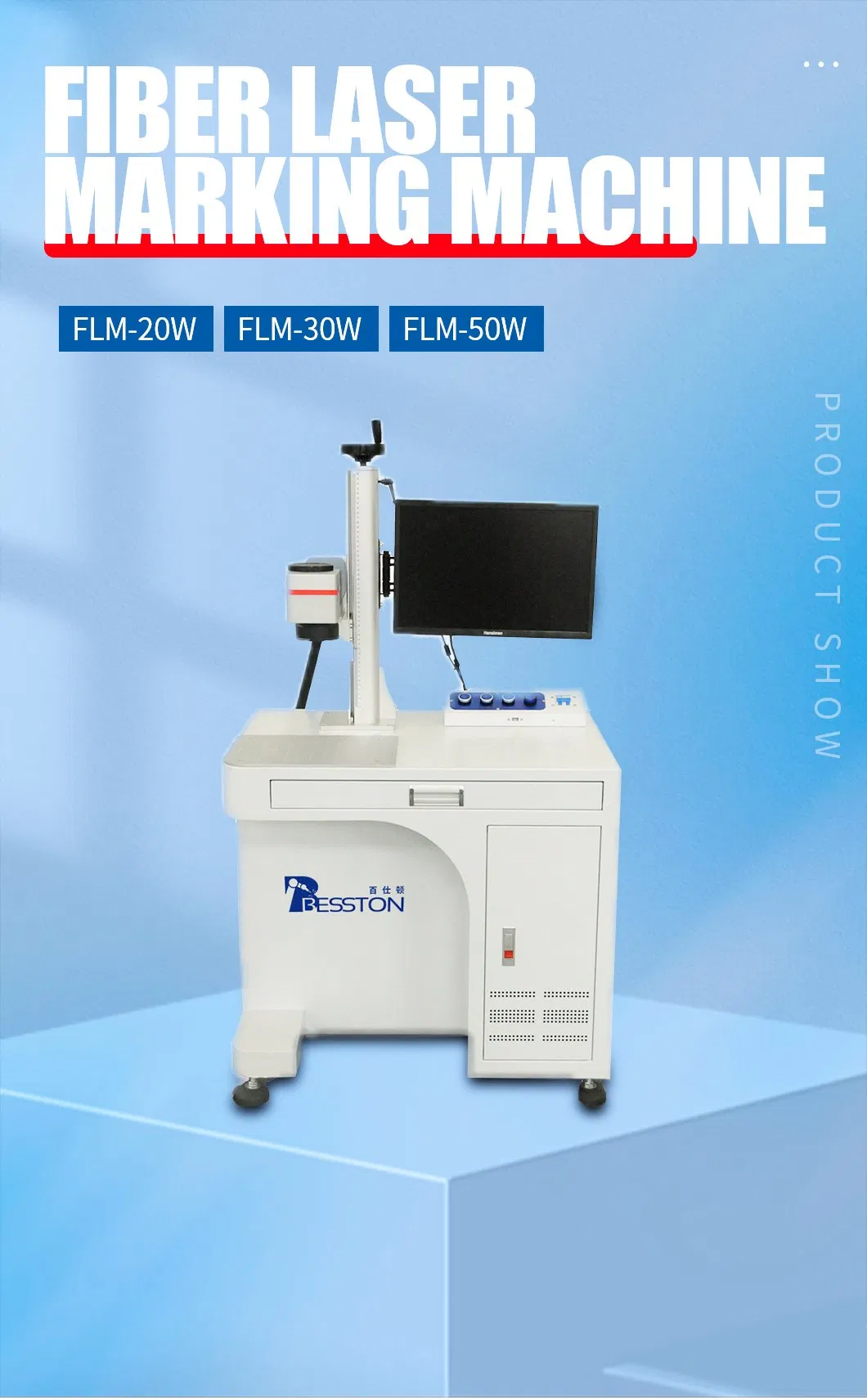

Model	FLM-20W	FLM-30W	FLM-50W
Average Output Power	20W	30W	50W
Marking Width	70mm×70mm / 110mm×110mm / 150mm×150mm / 175mm×175mm
Marking Depth	0.01-0.4mm	0.01-0.4mm	0.01-0.6mm
Repeatability	0.002mm	0.002mm	0.002mm
Min Line Width	0.01mm	0.01mm	0.01mm
Marking Speed	>800 standard characters/second
Beam Quality	<1.5M2	<1.5M2	<1.5M2
Power Supply	220V Single Phase / 50HZ / <350W		220V Single Phase / 50HZ / <400W

Application Showcase

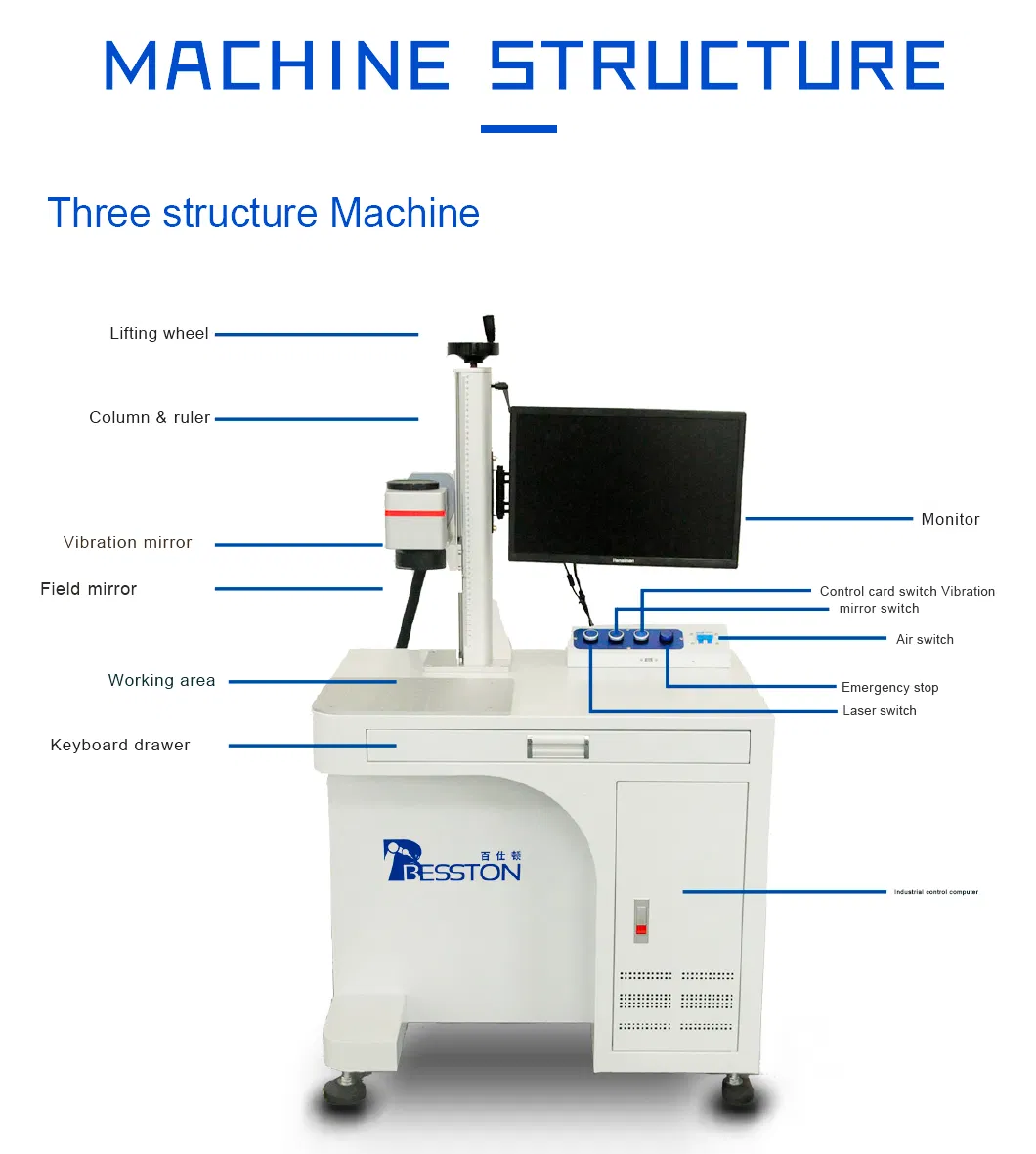

System Details

Frequently Asked Questions

Q1: What materials are compatible with the FLM-20W fiber laser? A: It is primarily designed for marking and engraving various metals (stainless steel, aluminum, brass, titanium) and certain high-contrast plastics.

Q2: Does the machine require frequent maintenance? A: No. Fiber lasers are virtually maintenance-free with a laser source lifespan of up to 100,000 hours and an air-cooling system that requires no water changes.

Q3: Is the laser beam safe to look at during operation? A: The fiber laser wavelength is invisible and can be harmful to eyes. Proper safety goggles or protective enclosures must be used during operation.

Q4: What is the maximum marking speed? A: The system can achieve speeds of over 800 standard characters per second, making it ideal for high-volume industrial production.

Q5: Can the marking area be adjusted? A: Yes, by changing the F-theta lens, you can achieve different marking fields such as 70x70mm, 110x110mm, or 175x175mm.

Q6: What software is used for designing the marks? A: The system typically supports professional marking software that is compatible with common file formats like PLT, DXF, AI, and BMP.
