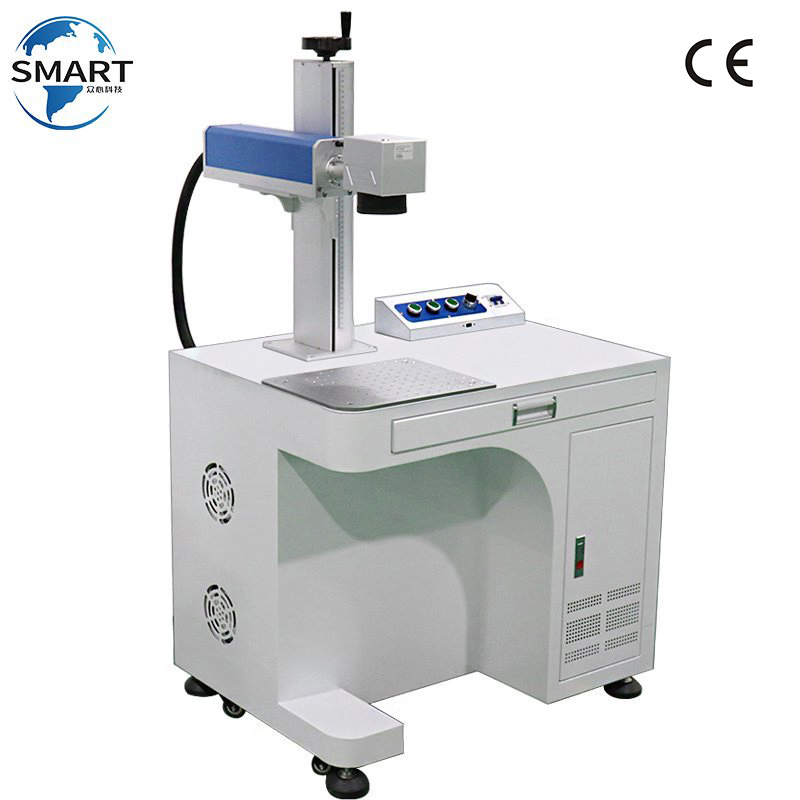

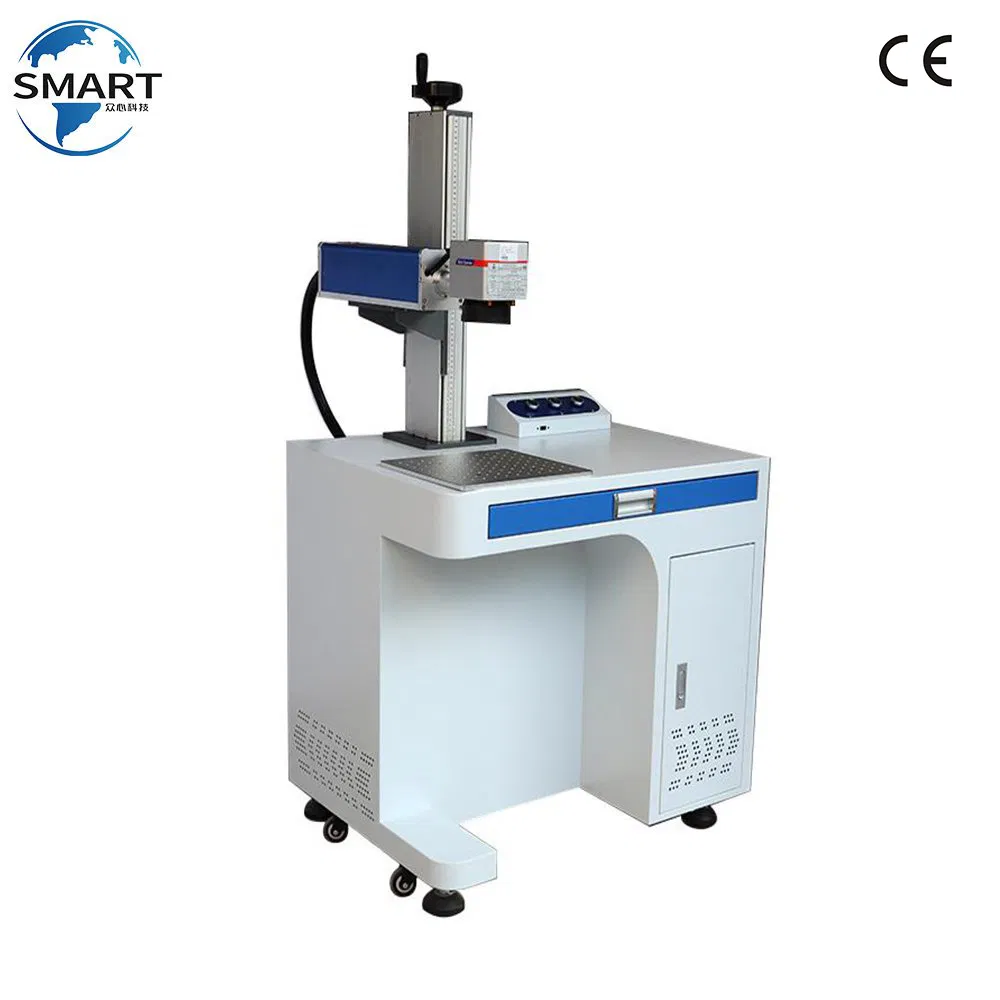

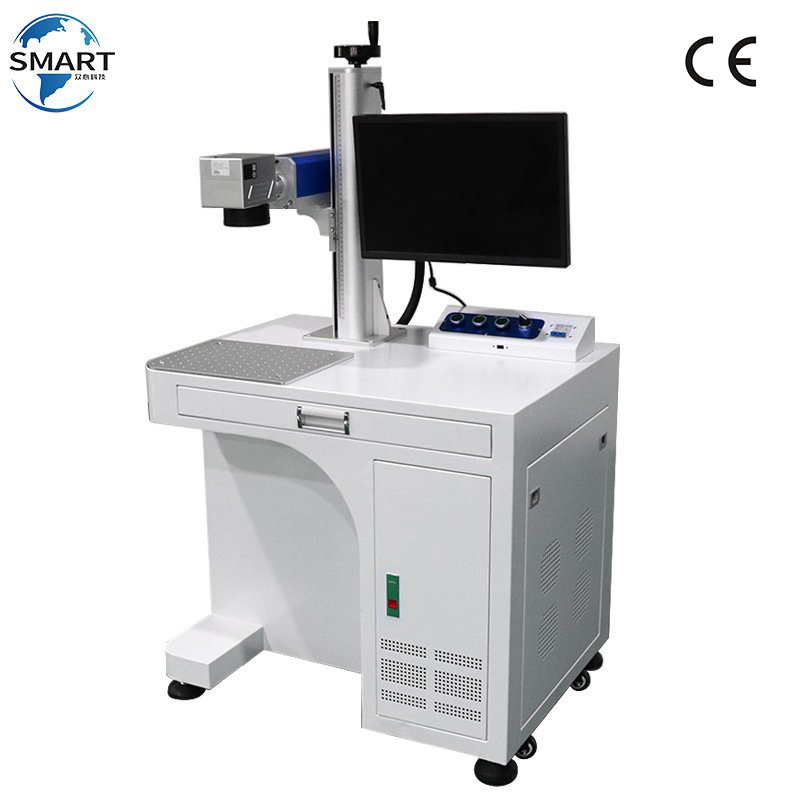

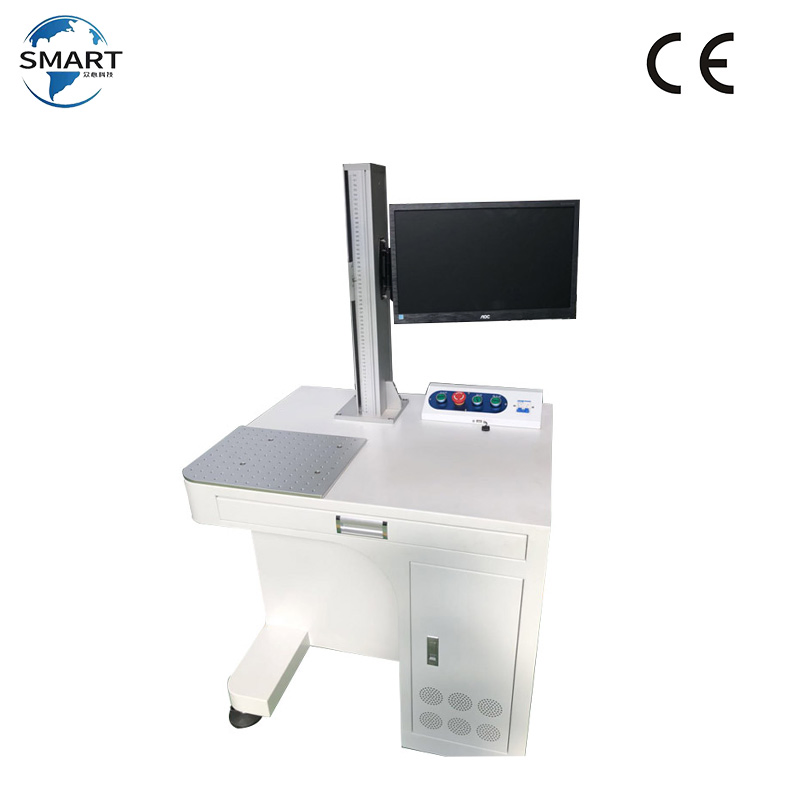

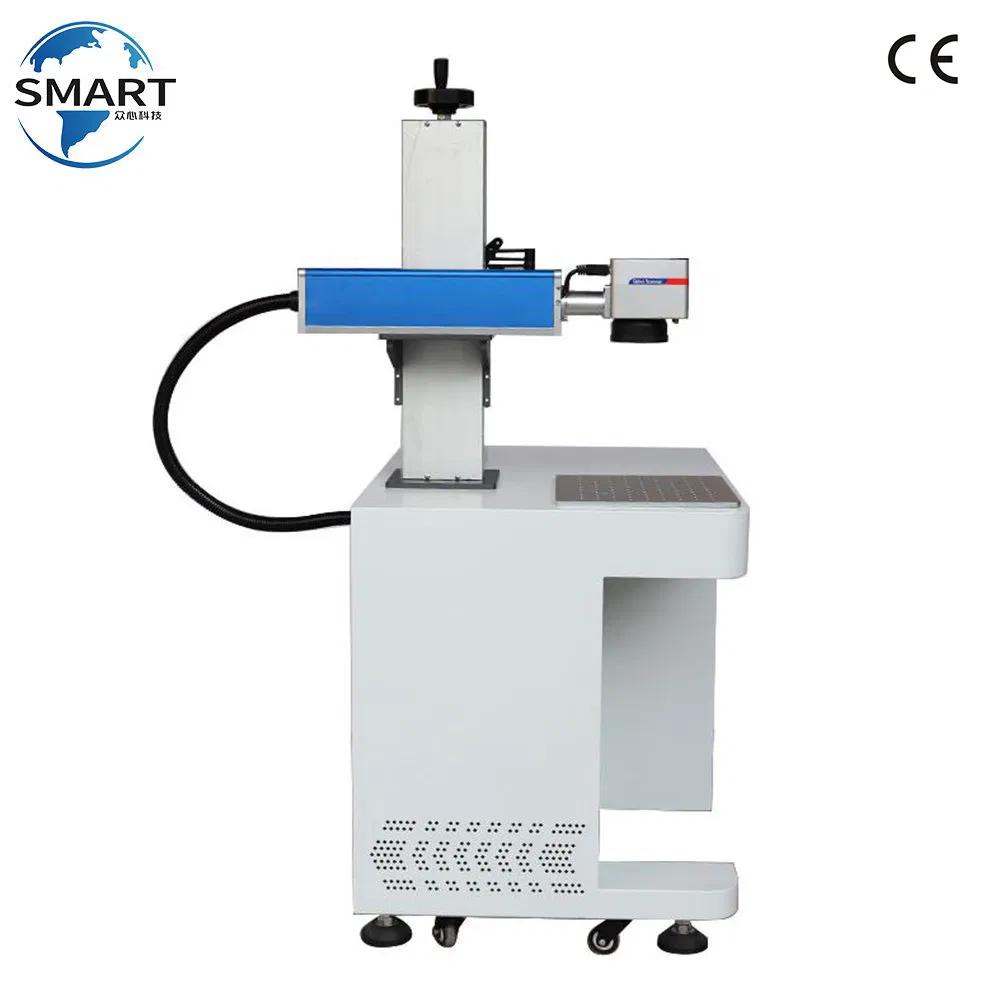

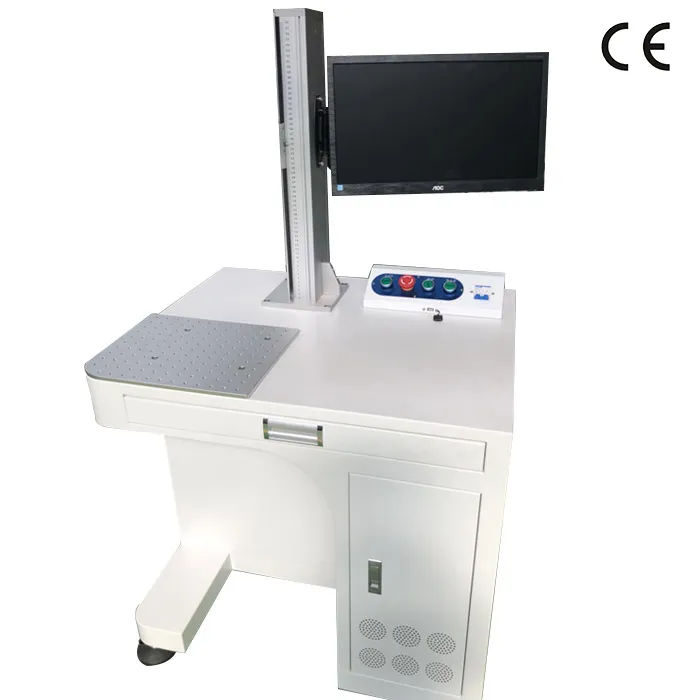

STYRL Laser
1 / 5
Mode: ZXJN-30WFB
Marking depth: 0.01-0.5mm
Engraving line speed: 10-7000mm/s
Repeatability: ±0.002mm
Repeat frequency: 20-100KHZ
Total power: 500W
Lifespan: ≥100,000 hours
| No. | Item | Description |
|---|---|---|
| 1 | Ambient temperature | 15-30ºC |
| 2 | Working humidity | <65% |
| 3 | Power demand | AC 220V/50-60Hz |
| 4 | Power | 500W |
| 5 | Dimensions | 700*900*1500mm |
| 6 | Net weight | 80KG |
Various metals (stainless steel, iron, copper, aluminum, magnesium, zinc, rare metals, alloys, etc.), engineering plastics, electroplating materials, coating materials, spraying materials, inks, ABS, plastic rubber, epoxy resin, etc.
| Laser Type | Wavelength | Applicable Products | Features |
|---|---|---|---|
| UV | 355nm | √ Metal, √ Plastic, √ Glass, √ Ceramics | Cold light source, small spot, fine marking. |
| Fiber | 1064nm | √ Metal, √ Partial Plastic, √ Leather | High efficiency, air-cooled, long life. |
| CO2 | 10.6um | √ Wood, √ Paper, √ Rubber, √ Glass | Permanent marking, fast, low cost. |

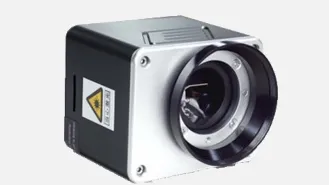

Equipped with high-performance micro motor, fast marking speed, stable operation, high precision and longer service life.
High-performance lenses with good light perception, uniform lighting, and resilience to environmental challenges.
High-performance rulers for accurate positioning. Stable and smooth benchmarks for precise adjustment.

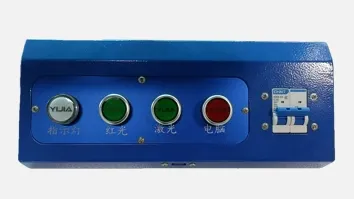

Professional humanized control switch, simple and fast system, multilingual customization supported, equipped with USB interface.
