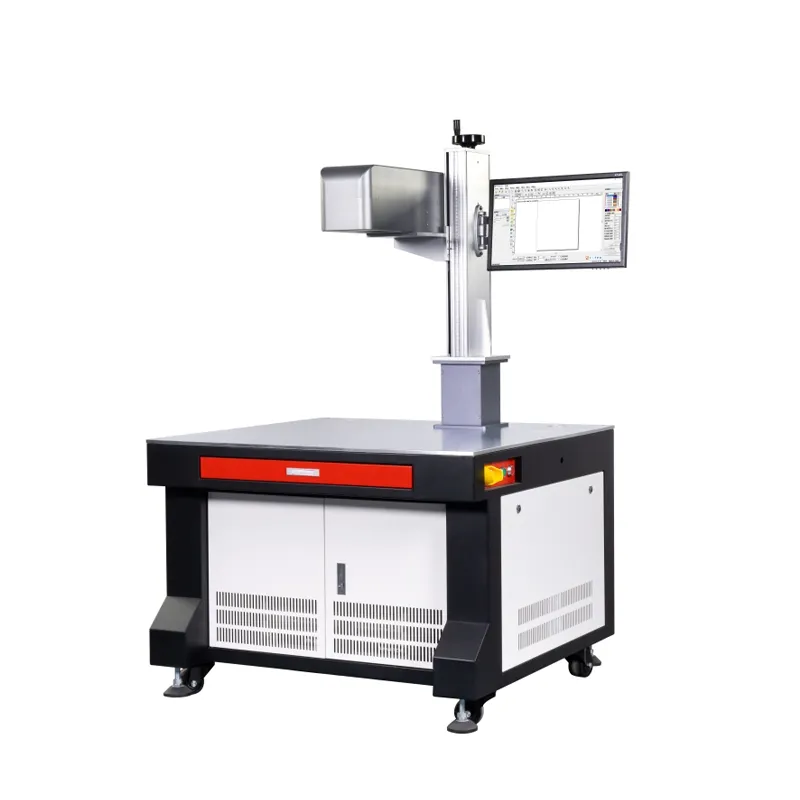

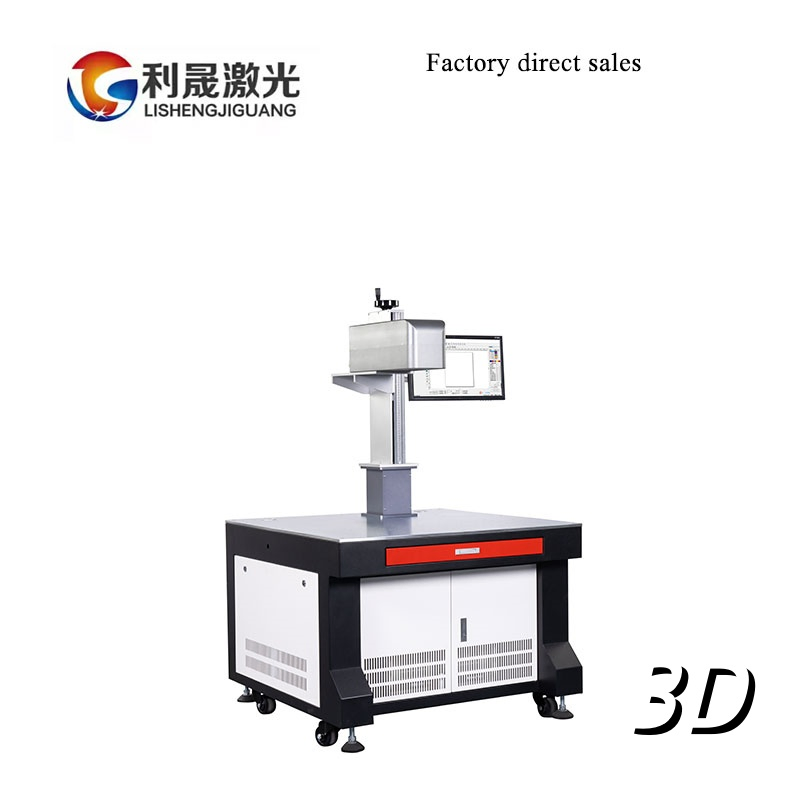

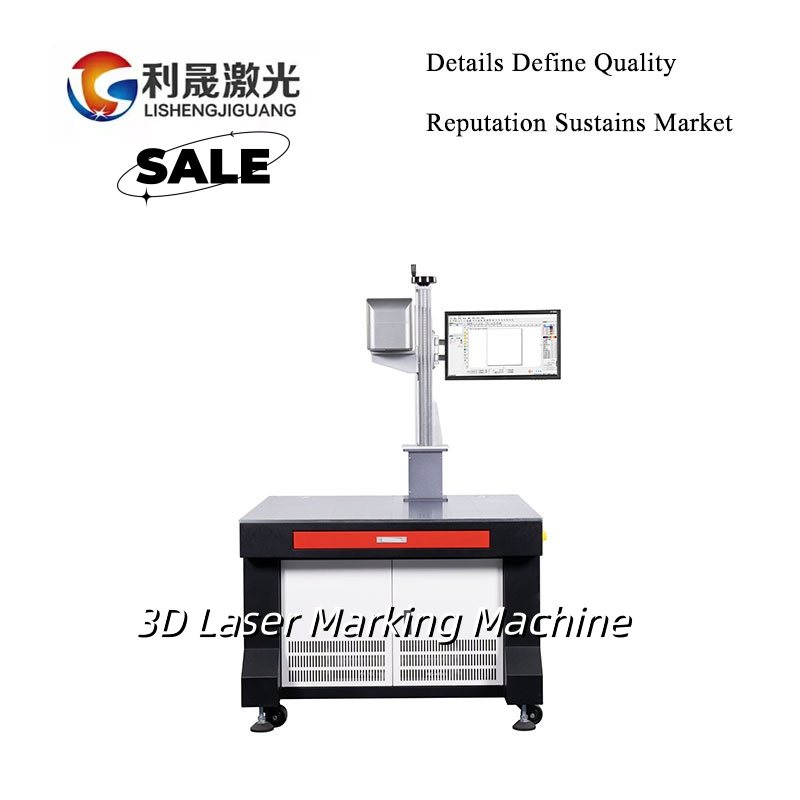

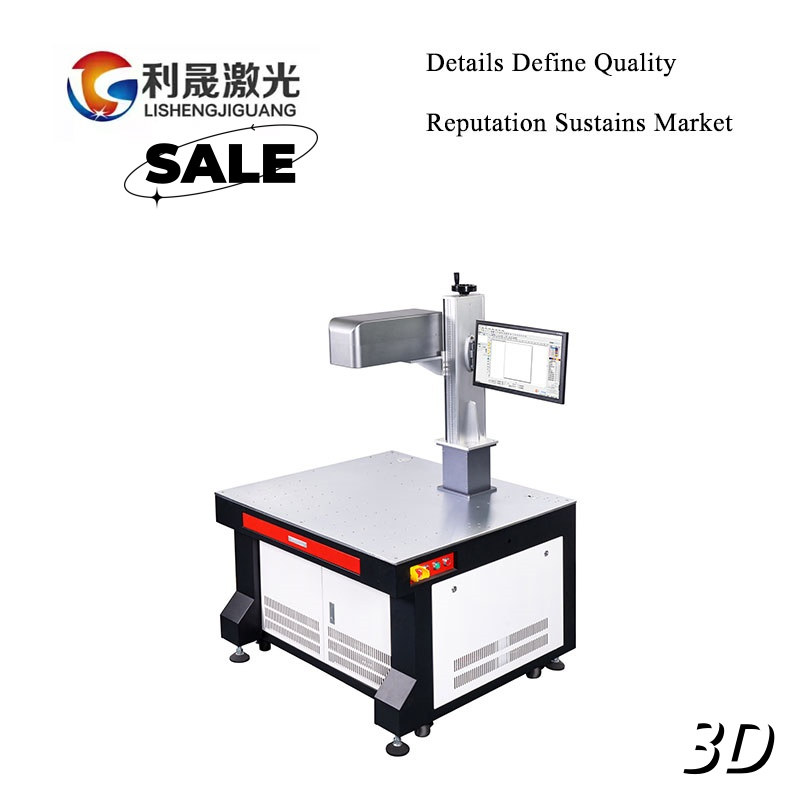

The 3D Laser Marking Machine is a high-precision laser processing equipment developed to meet special laser marking needs such as long automotive interior parts, 3D curved objects, and marking on different planes.
Equipped with an advanced pre-focusing method and a dynamic focusing mount, it overcomes the defects of traditional 2D marking. Through software control, it adjusts the focal length in real-time to achieve accurate surface focusing on objects with varying heights.
| Model | LS-3DFB-50/100W | LS-3DUV-10/20W | LS-3DCO2-60/120W |
|---|---|---|---|
| Applicable Wavelength | 1064nm | 355nm | 10.6um |
| Galvanometer Aperture (mm) | 10/20/30 | 10 | 30 |
| Deflection Angle (°) | ±11 | ±10 | ±11 |
| Repeat Marking Angle (μrad) | 8 | 8 | 8 |
| 8-Hour Drift (mrad) | ≤0.3 | ≤0.3 | ≤0.5 |
| Max Speed (char/sec) | 350@400x400 | 600@400x400 | 350@400x400 |
| Working Range (mm) | 100x100 to 1000x1000 | 125x125 to 400x400 | 300x300 to 1200x1200 |

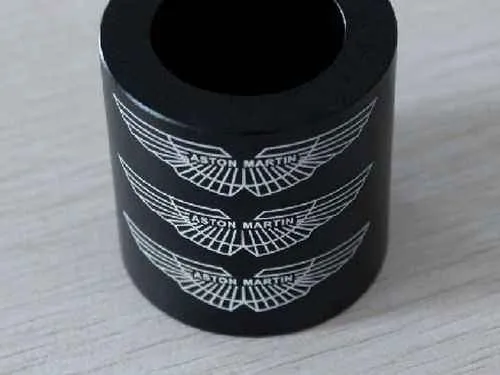

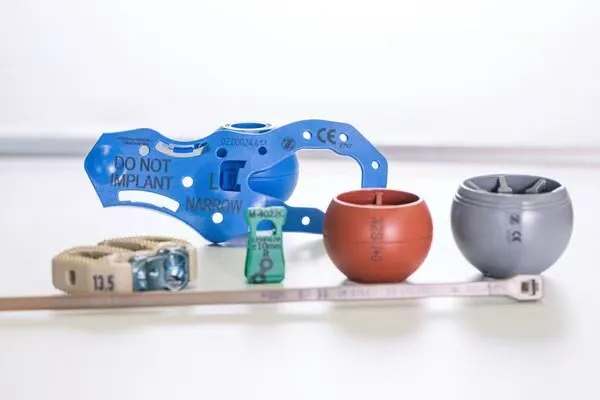

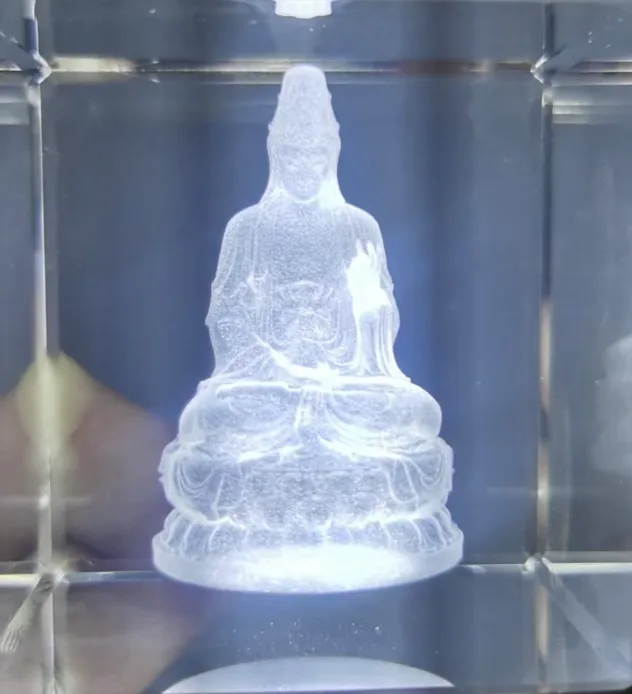

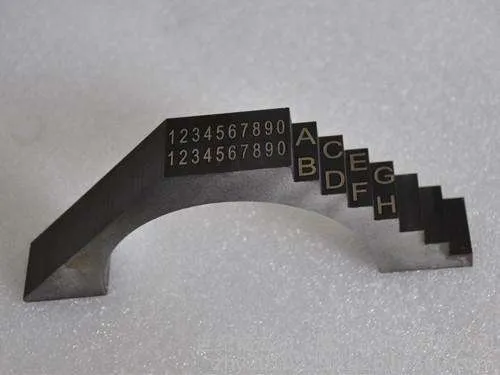

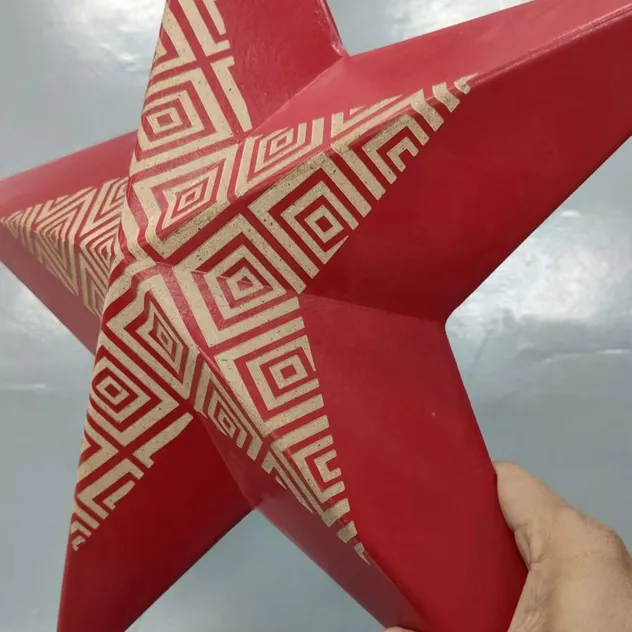

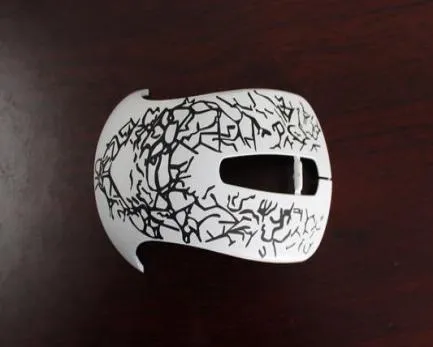

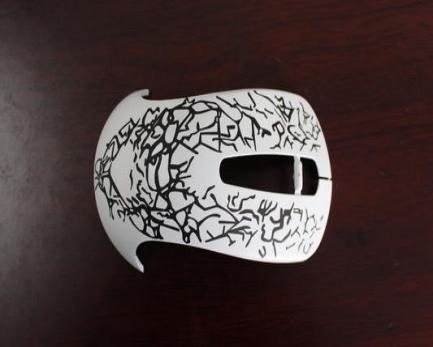

Suitable for special-shaped products, curved surfaces, inclined surfaces, and irregular surfaces. Ideal for relief engraving, inner engraving, stone carving, and large-format marking in industries like automotive, 3C manufacturing, hardware, and precision machinery.
Specializing in high-end optoelectronic and laser industrial equipment, the production line includes laser welding machines, 3D large-format marking machines, and automated laser systems. Products are widely applied in mobile digital, automotive, hardware, and precision machinery sectors.
