Lansu 3W UV Vision Laser Engraving System for Plastic Parts

1 / 5

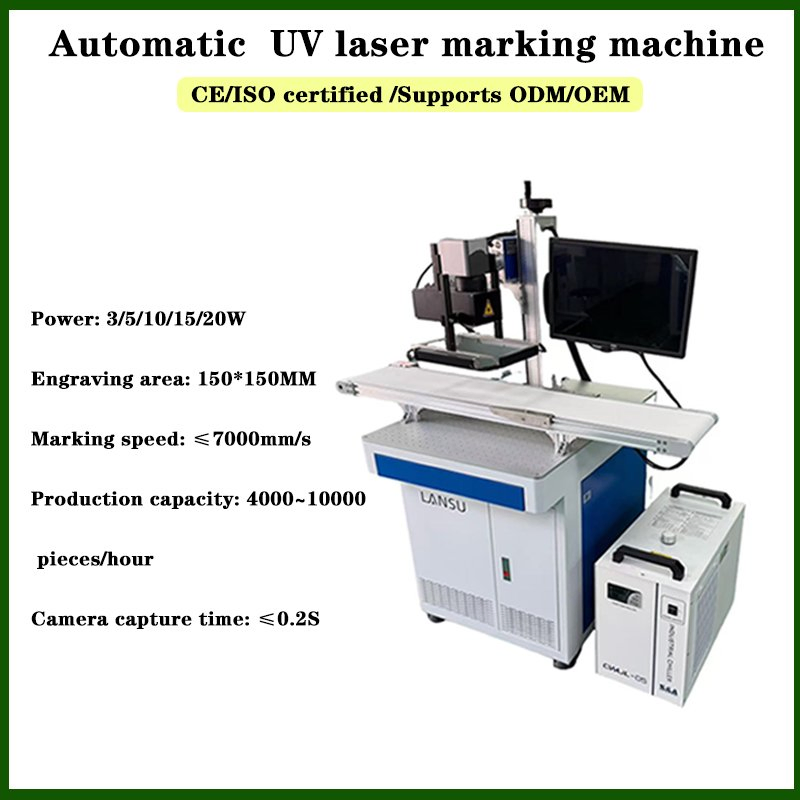

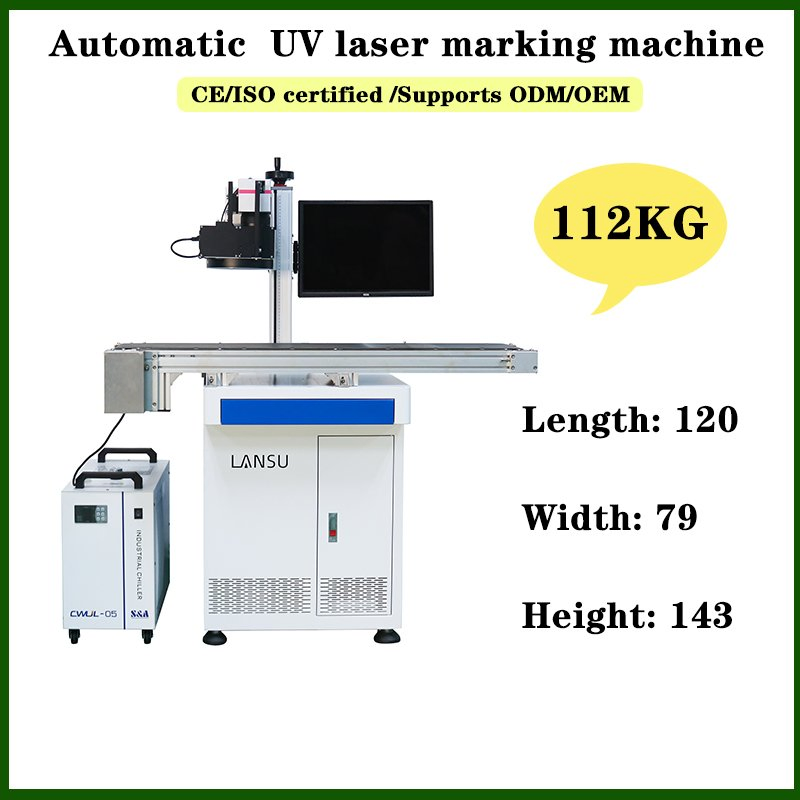

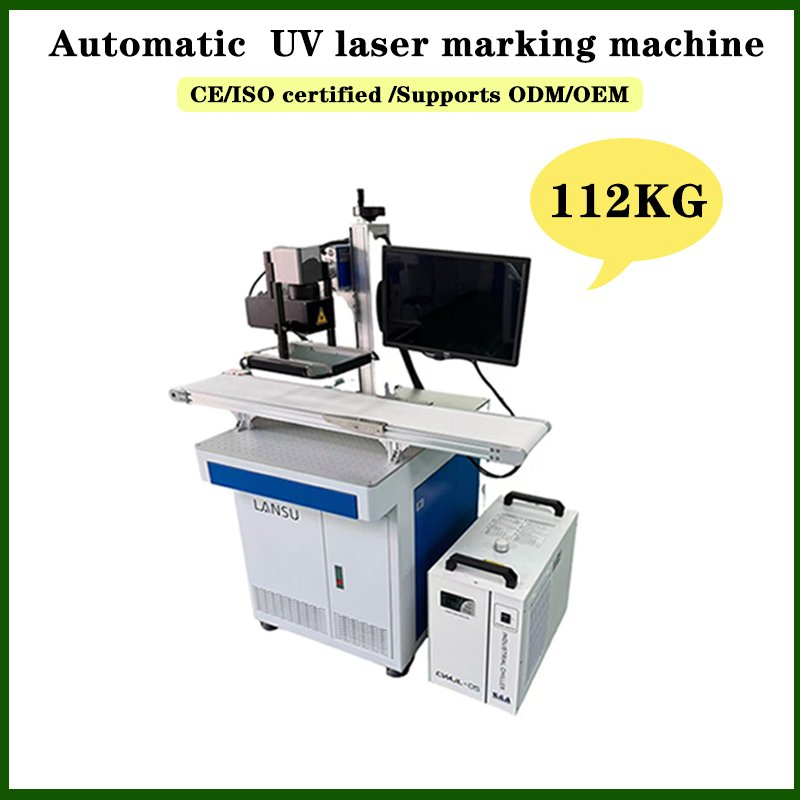

Lansu 3W UV Vision Laser Engraving System for Plastic Parts

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.	UV
Laser Visibility	Visible
Applicable Material	Plastic
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Laser Wavelength	355nm
Type	UV Laser Marking Machine
Marking Method	Scanning Marking
Model	Ls-Sjuv-5/10/20/25W
Marking Speed	≤7000mm/S
Minimum Linewidth	0.01mm
Minimum Character	0.05mm
Repeatability	±0.01mm
Power Supply	AC220V/50Hz
Capture Time	≤0.2s

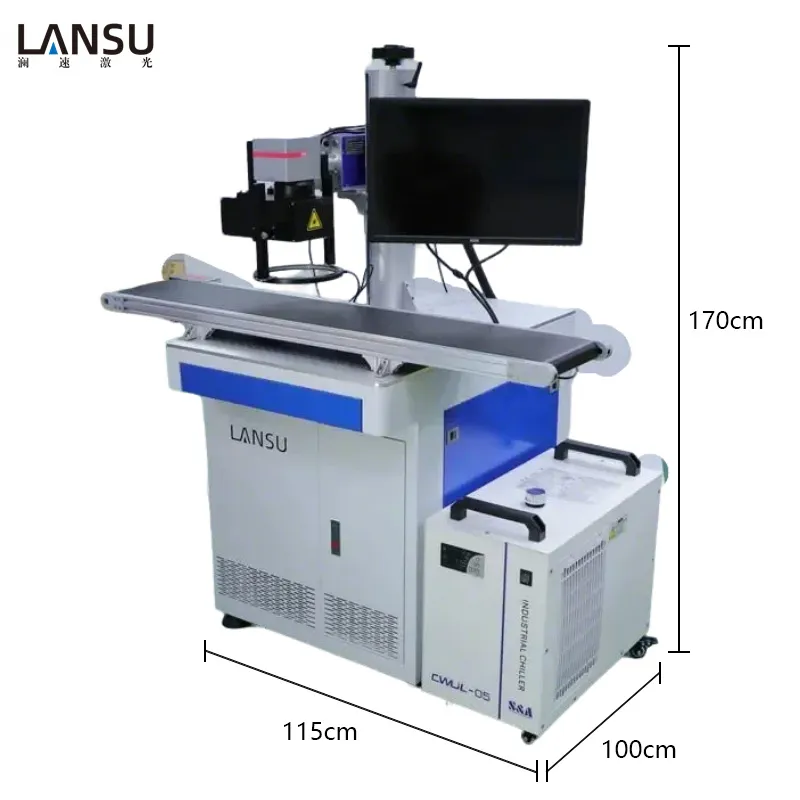

Package Size	115.00cm * 105.00cm * 155.00cm
Package Gross Weight	178.000kg

Detailed Description

Enhanced Efficiency Improve production efficiency through rapid positioning and multi-product marking. Supports automatic assembly line integration and visual CCD positioning for high-speed output.

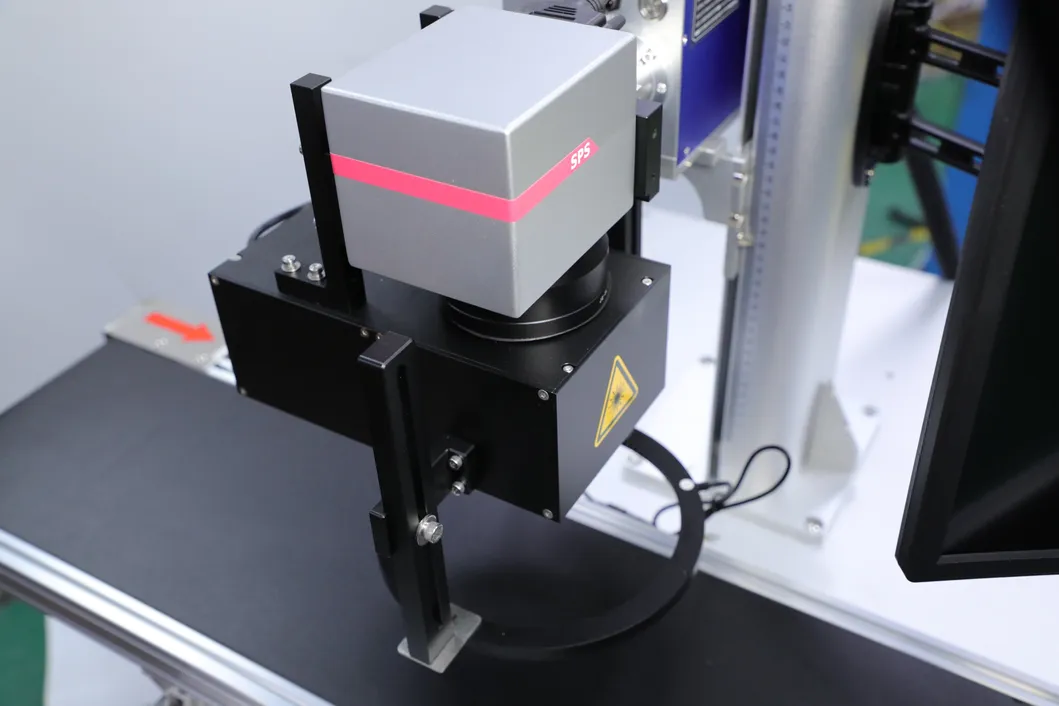

High Precision The combination of the laser marking machine and CCD vision achieves high-precision marking at any angle, quantity, or position, ensuring consistency across batches.

Automated Production Seamlessly cooperates with vibration plates, XY platforms, and assembly lines to achieve unmanned automation and significantly improved product quality.

Flexible Programming Quickly adjust patterns, QR codes, and text via computer programming without changing molds. Ideal for small screws, ICs, and diverse plastic parts.

Technical Parameters

Laser Power	5/10/20/25W
Marking Area	150mm×150mm (Optional)
Marking Speed	≤7000mm/s
Minimum Linewidth	0.01mm
Minimum Character	0.05mm
Repeatability	±0.01mm
Power Supply	AC220V/50Hz
Output Capacity	4000 ∽ 10000 pcs/h
Capture Time	≤0.2s
Cooling Mode	Water Cooling

Applicable Materials

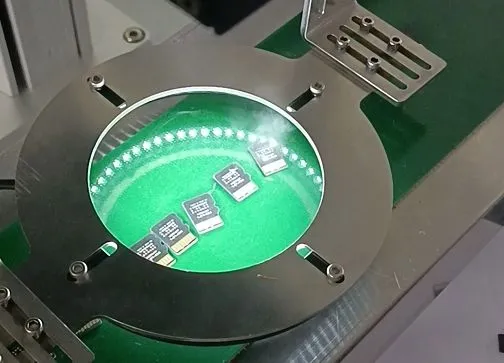

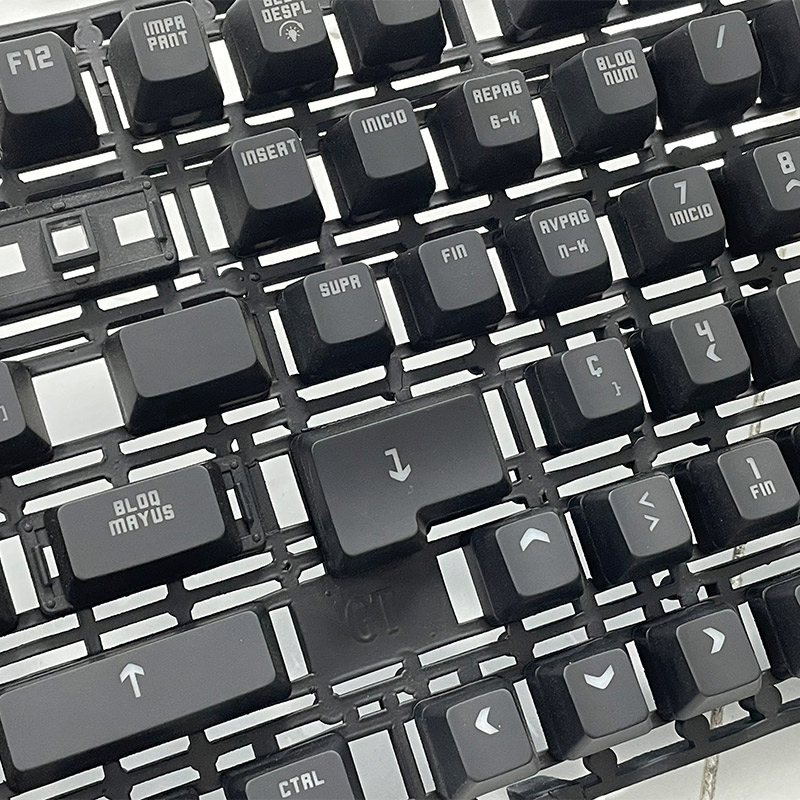

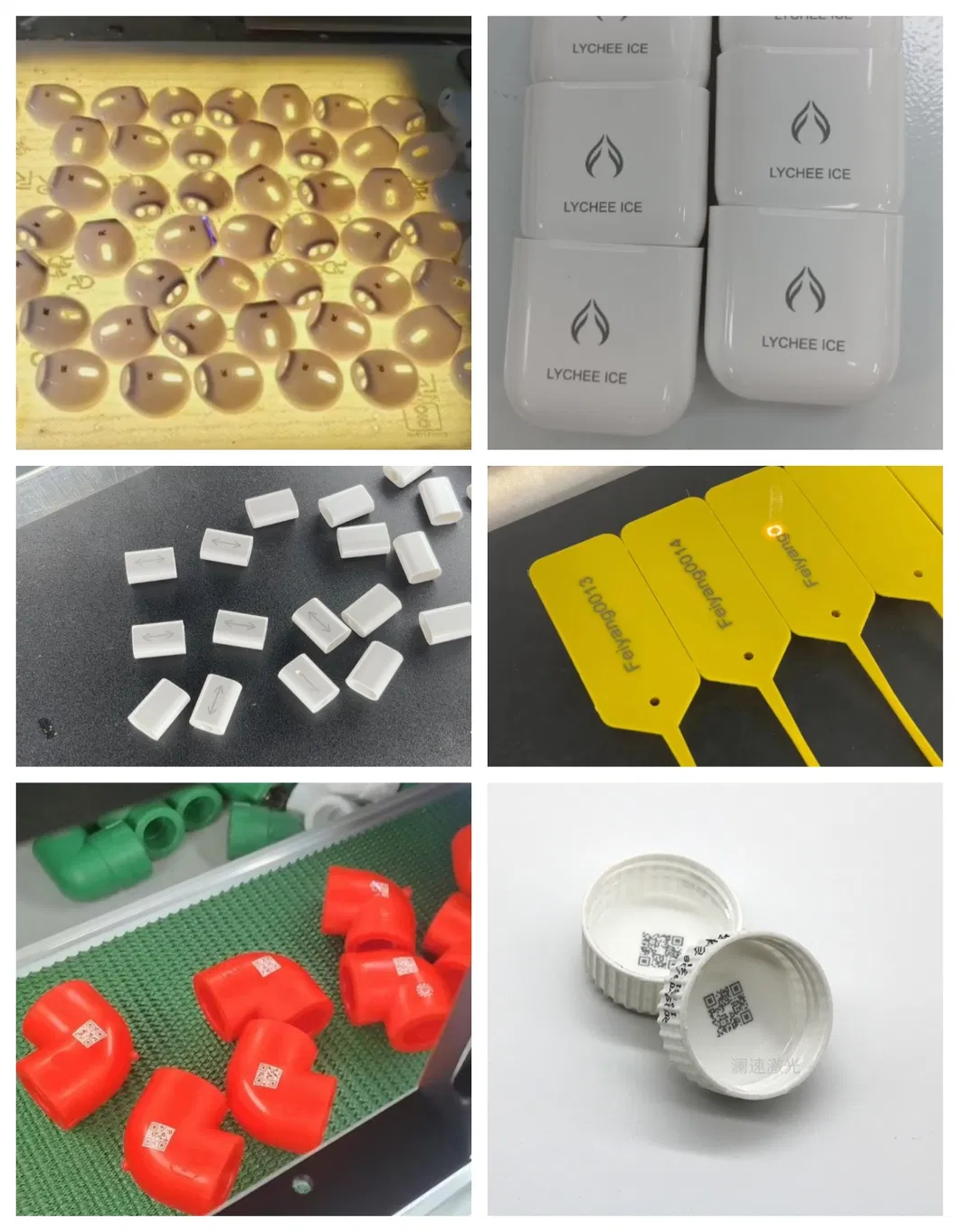

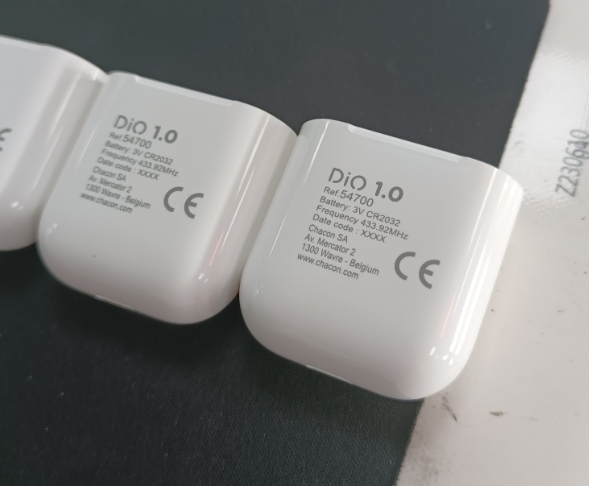

Perfect for marking small or extremely detailed items including IC chips, small screws, and resistors. It is widely used for high-quality engraving on various plastics such as ABS, PP, PC, PA, TPU and more.

Frequently Asked Questions

What is the expected lifespan of this UV laser marking machine?

The equipment is designed for high stability and industrial use. With proper maintenance, the laser source can have a lifespan of up to 100,000 hours and can operate continuously for 24 hours.

Can this machine handle automated assembly line marking?

Yes, the system is specifically designed for integration. By using CCD vision and cooperating with vibration plates or XY platforms, it can achieve fully automated, unmanned production.

How accurate is the visual positioning system?

The CCD vision system allows for high-precision positioning with a capture time of ≤0.2s and a repeatability of ±0.01mm, ensuring accurate marking regardless of the item's orientation.

What materials are most suitable for UV laser marking?

UV lasers are "cold" lasers, making them ideal for materials sensitive to heat. They are best for a wide range of plastics (ABS, PP, PC, TPU), silicon, and small electronic components like ICs.

How is the quality of the equipment guaranteed?

Every machine undergoes a pre-production sample check and a final comprehensive inspection before shipment to ensure the marking effect and equipment stability meet the highest standards.

What power supply and cooling are required?

The system requires a standard AC220V/50Hz power supply and utilizes an integrated water-cooling system to maintain optimal operating temperatures for the laser source.
