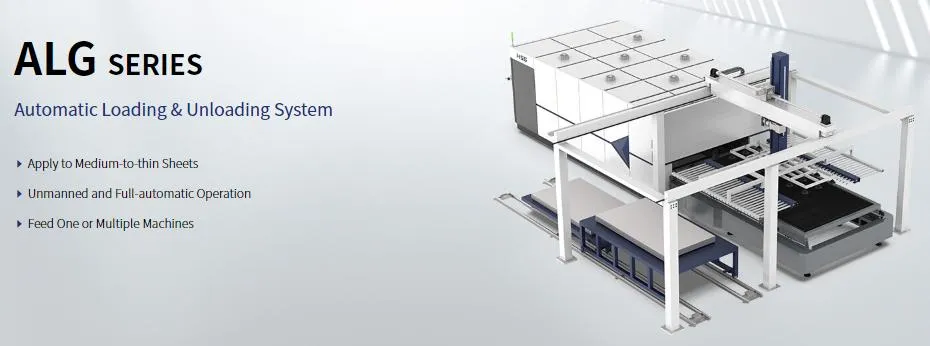

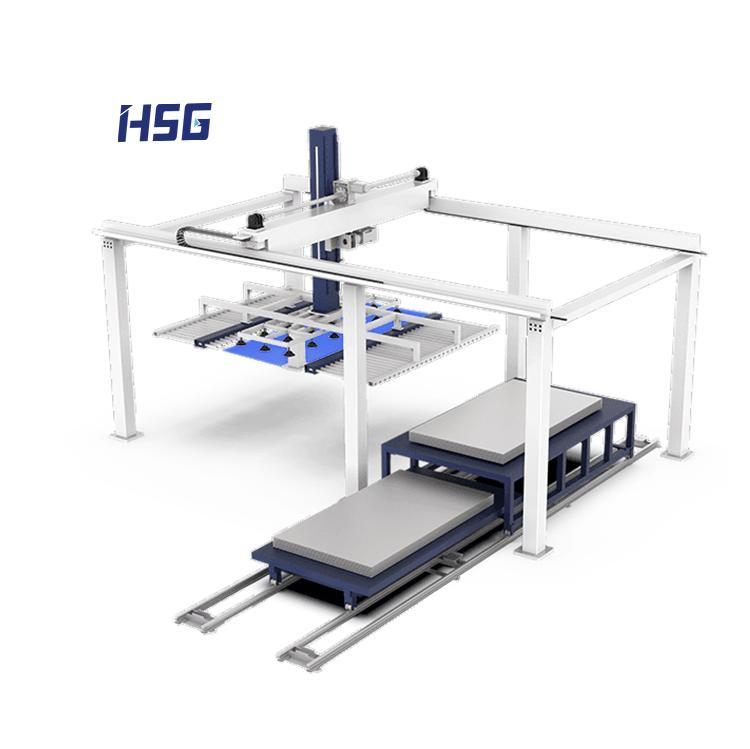

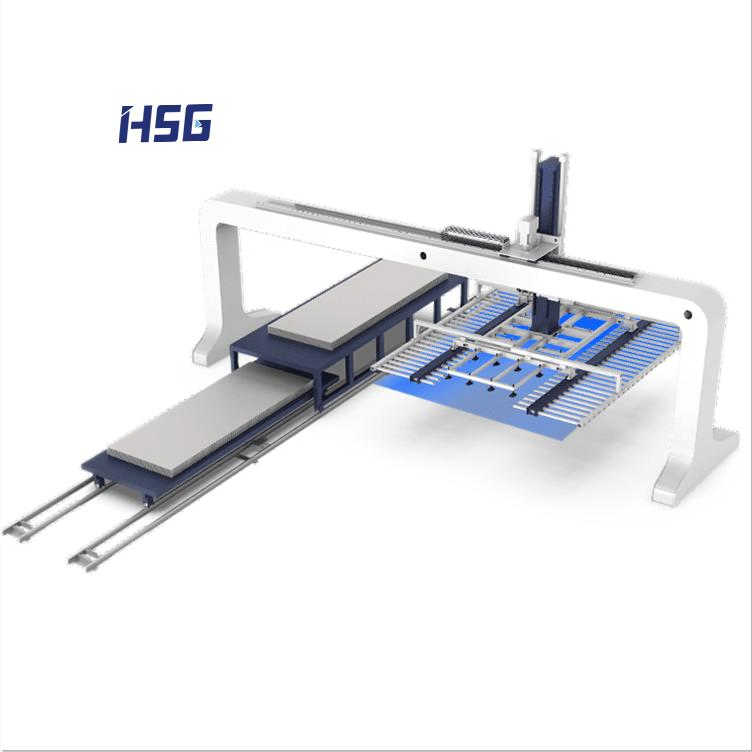

Automatic Loading & Unloading System: We serve global users with advanced machinery suitable for most metal cutting materials, including sheet metal, tube laser cutting, bending, and welding solutions.
* Technical parameters and data comparison are based on internal laboratory testing.

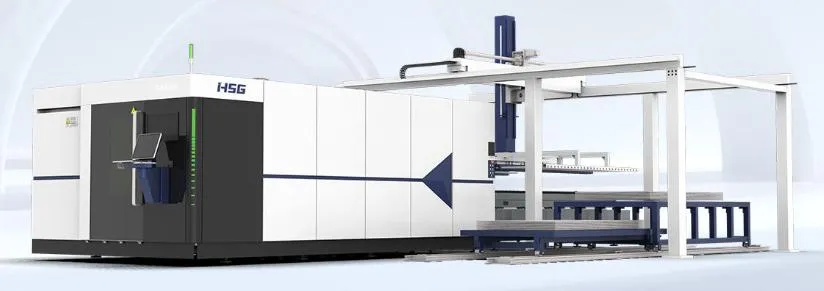

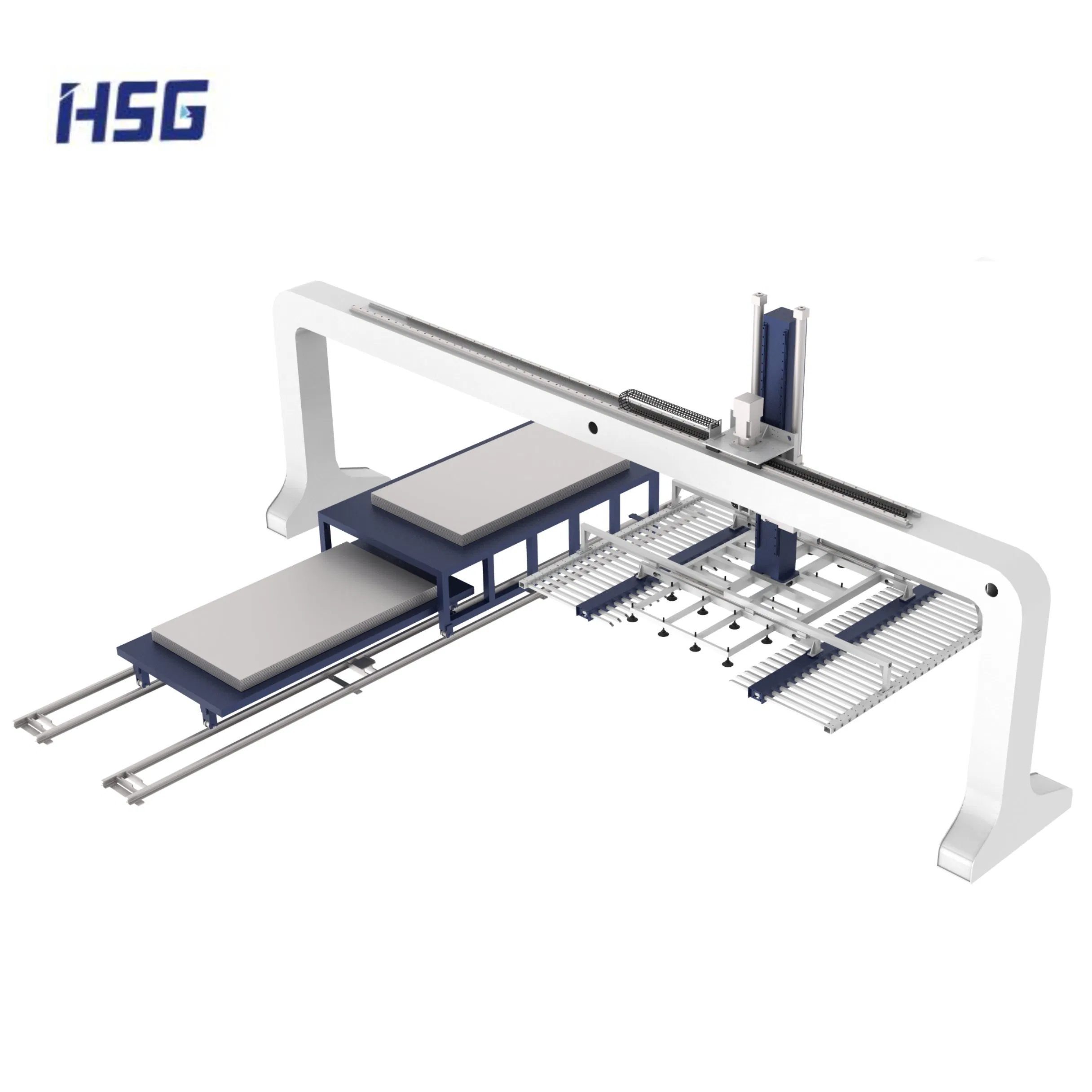

Sheet metals are subject to precise thickness measurement to ensure that only one sheet is loaded at a time, preventing processing errors.

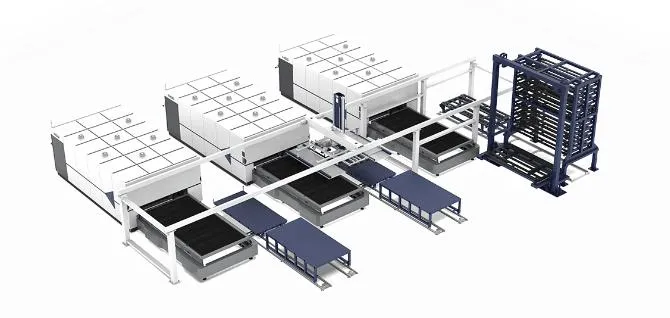

A single set of automatic loading & unloading systems can simultaneously serve several cutting machines, reducing energy consumption and enhancing workshop utilization.

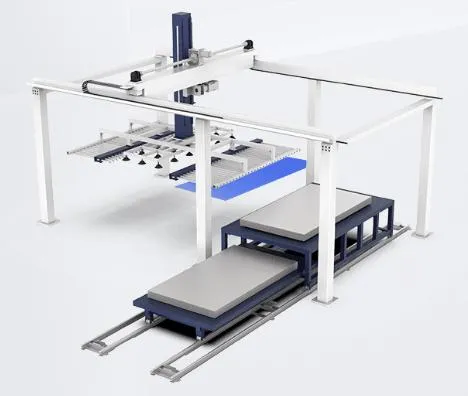

Medium-to-thin Sheets: Optimized for sizes 3000*1500mm to 6000*2000mm, with weights up to 600kg.

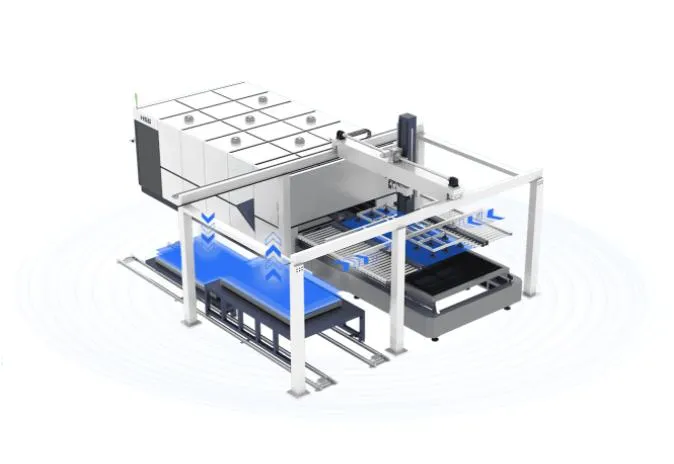

User-friendly Design: Fully automatic stacking and digital operation ensure sheets are protected from scratches.
| Model | ALG-3015-200 | ALG-4020-400 | ALG-6020-600 |
|---|---|---|---|
| Sheet Thickness | 1-8mm | 1-6mm | |
| Sheet Weight | 200-400kg | 400kg | 600kg |
| Sheet Size | 3000*1500*6/8mm | 4000*2000*6mm | 6000*2000*6mm |
| Pallet Height | 120mm | ||
| Compatible Models | GX IV, GX-M, GX Pro, GA IV, GT Pro II, GH Pro II, GV-B, X3015A, GL-S | ||
1. Standard Protection: Includes aluminum foil, metal framework, fumigation wooden case, anti-rust oil, moisture-barrier bags, and waterproof film.
2. Delivery: We ensure fast delivery without damage to the customer's site.
3. Versatility: Supporting various transportation methods for global logistics.
