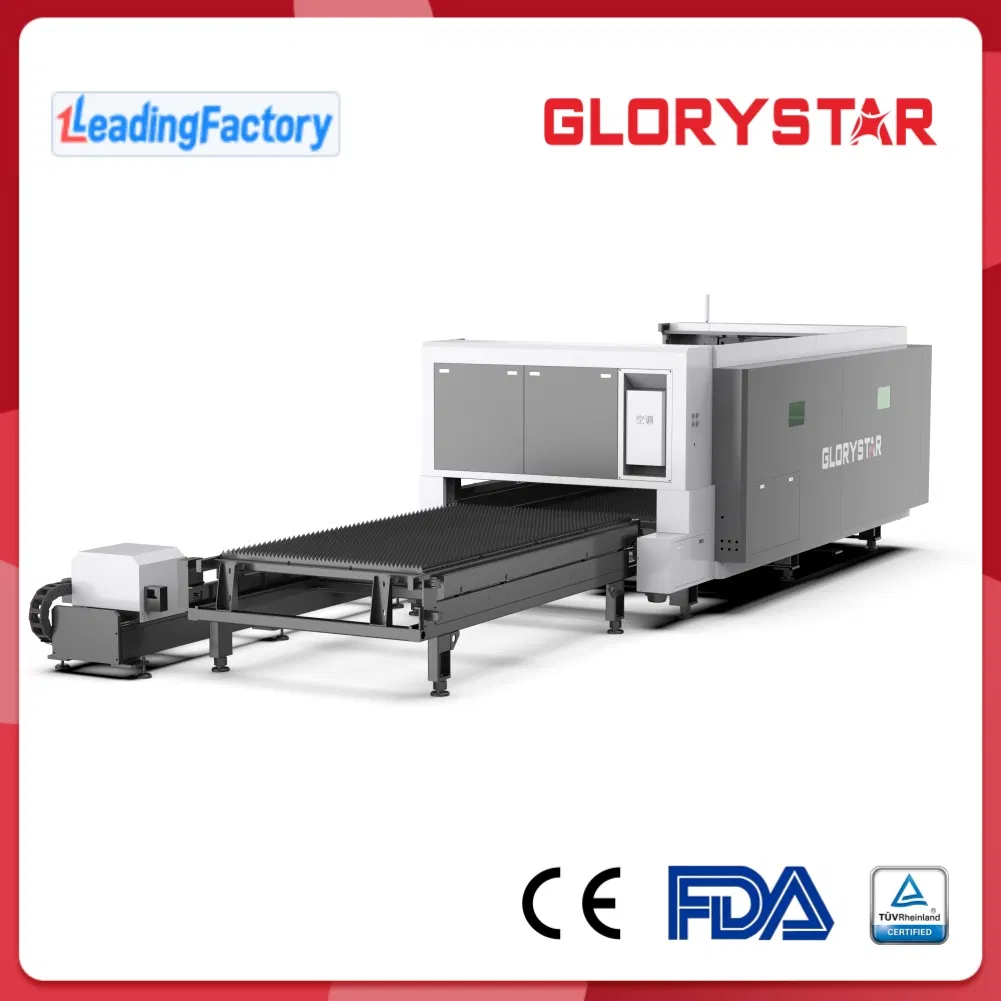

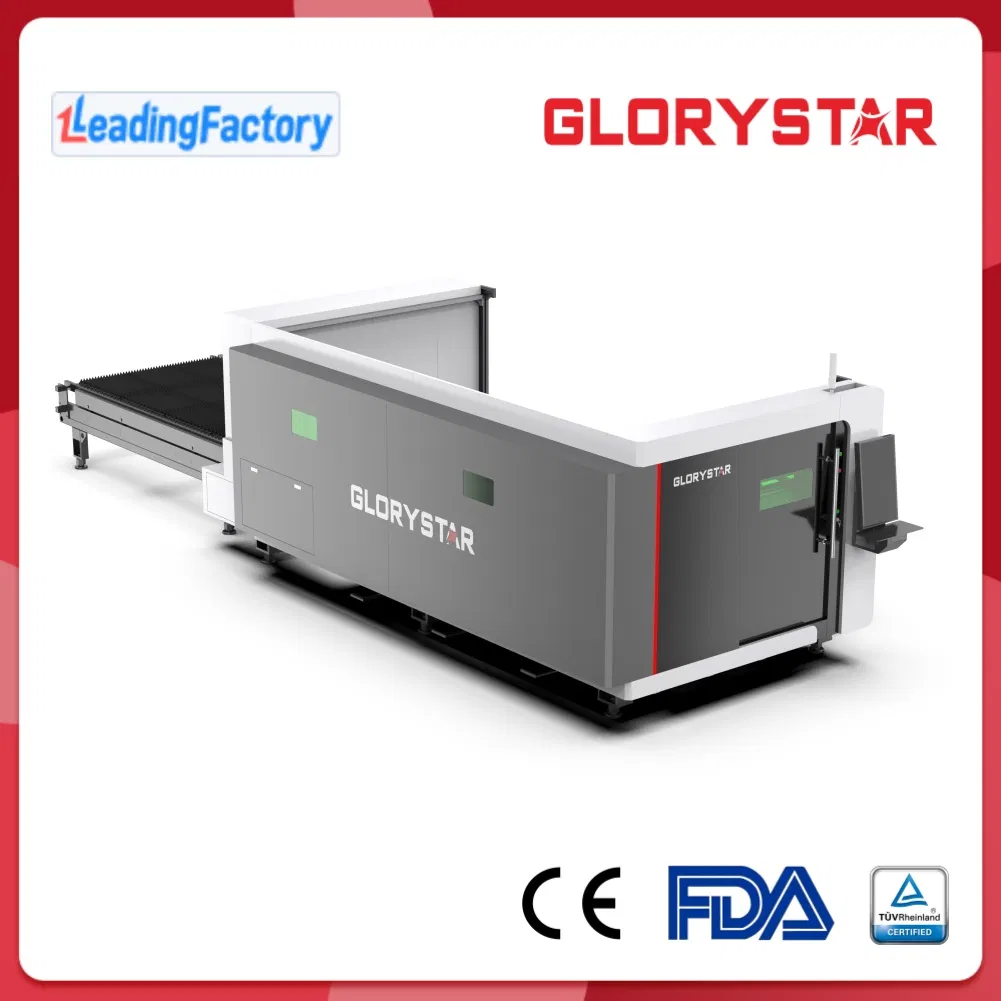

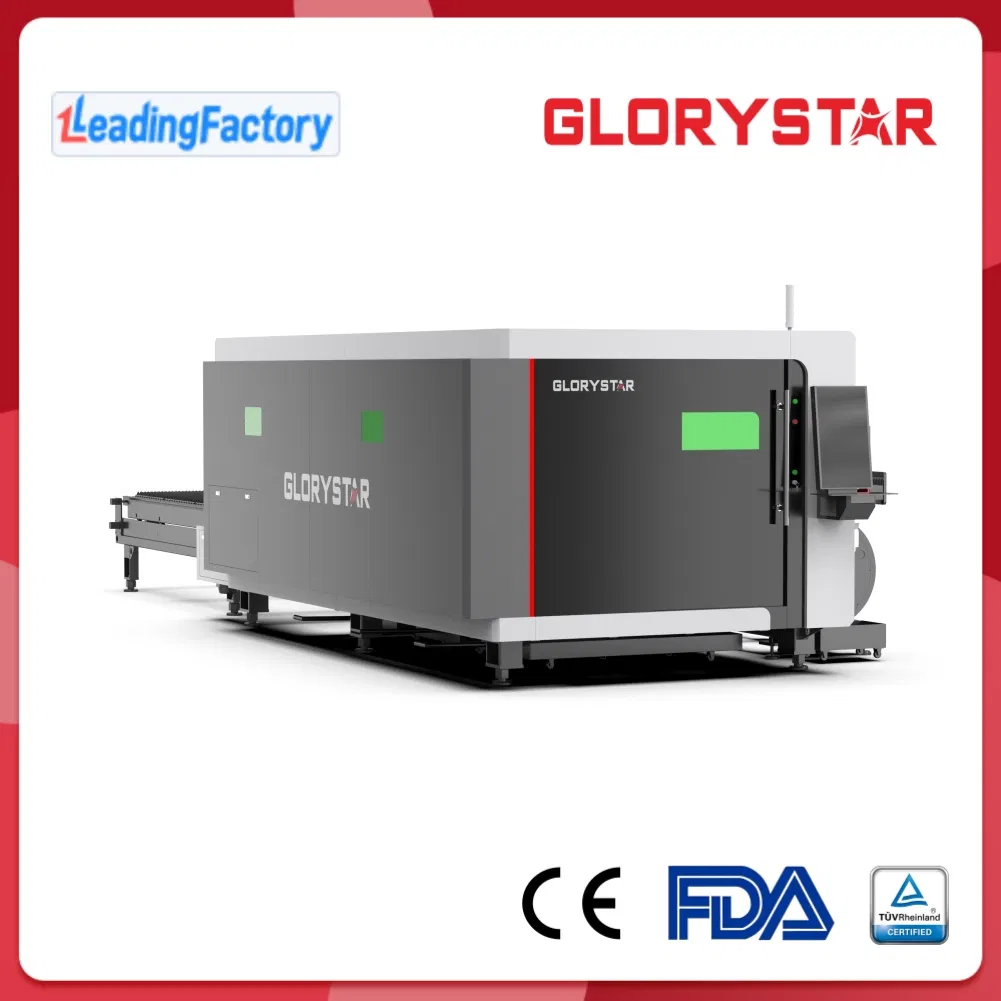

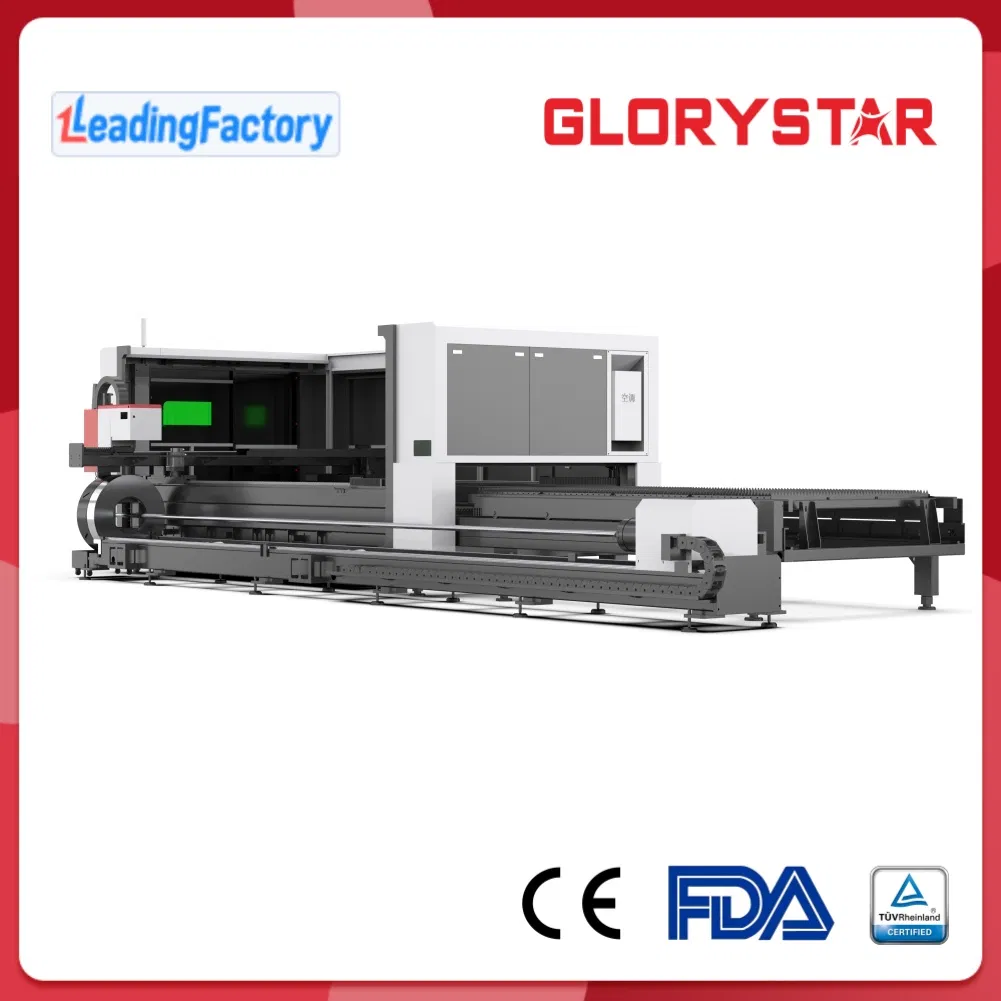

Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting
Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting
Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting
Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting
1 / 4
Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting
Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting
Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting
Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting

Glorystar Laser Dual Use Laser Machine System for Laser Cutting Machine with Metal Cutting

Customization: Available
After-sales Service: English Manual, Intallation and Use Training
Application: Agriculture Machinery, Food Machinery, Automotive Industry, Advertising Industry, Metal Plate & Pipe Processing
Send Inquiry

Product Description

Basic Specification
Model NO.
GS-3015CEG
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Large Full-Enclosed & Exchangeable Worktable
Laser Classification
Fiber Laser
Laser Technology
Laser Control Fault Cutting
Laser Source
1000W - 6000W (IPG/Raycus)
Color
White, Red and Black
Usage
Cutting Metal in Pieces or Spare Parts
Working Area
1500X3000mm (Standard)
Optional Area
Up to 2000X4000mm
HS Code
8456100090
Certification
CE, ISO, SGS, FDA
Product Description

Sheet & Tube Combined Laser Cutting Machine

High-efficiency, stable fine cutting with eco-friendly design.

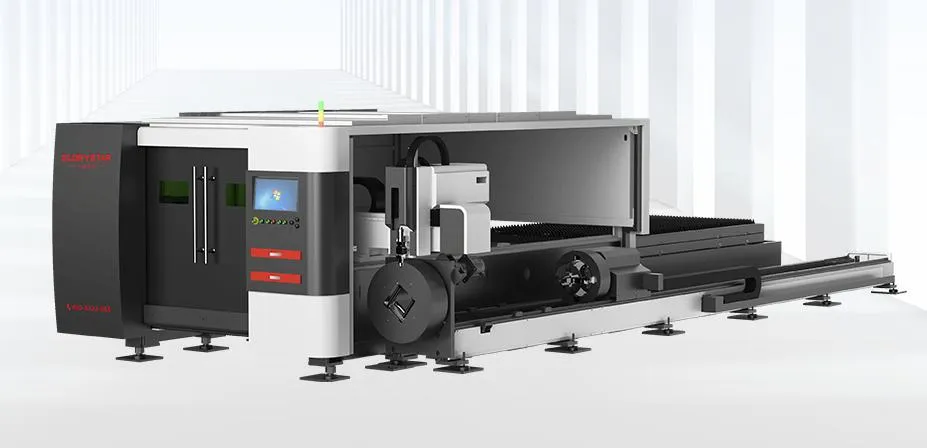

Laser Machine Overview

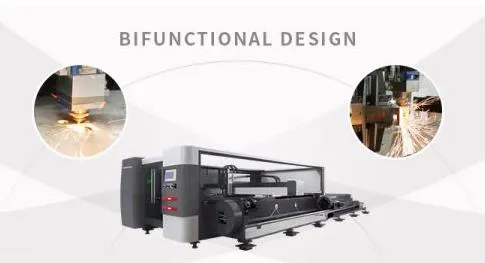

Double-Use Function

Double-Use Capability

Integrates sheet cutting and pipe cutting functions, meeting diverse requirements for various metal formats in one compact layout.

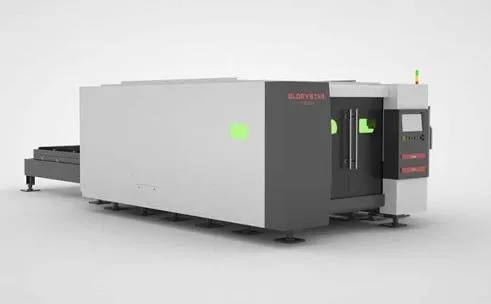

Space & Cost Efficiency

Greatly reduces floor space compared to two separate machines, significantly lowering overhead and investment costs.

Space Cost Efficiency
Technical Parameters
Maximum material width3000mm * 1500mm
X/Y-axis working stroke1520mm / 3030mm
Z-axis working stroke300mm
Positioning accuracy≤0.03mm/m
Repeated positioning accuracy≤0.02mm
Max positioning speed100m/min
Max acceleration1.2G
Tube cutting rangeDiameter: 20-220mm
Tube length6 meters
Machine Weight8 Tons
Power RequirementsAC380V, 50Hz; 3P+N+PE

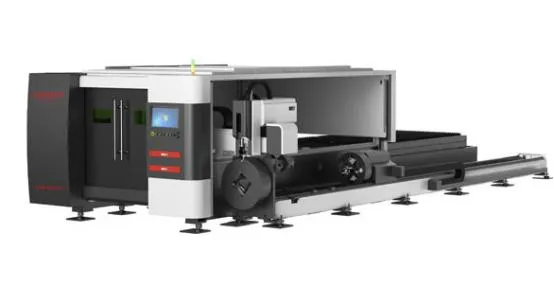

Core Advantages

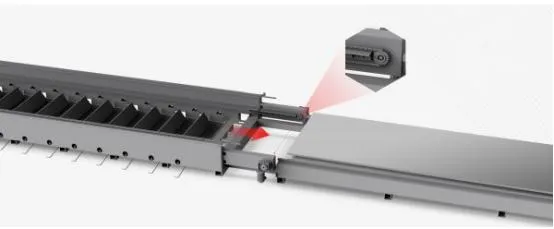

Feature 1 Feature 2
  • High Stability: EtherCAT bus controlled network transmission prevents interference and ensures high reliability.
  • Superior Safety: Fully-enclosed protective design with OD5 class fiber optic protective glass.
  • Intelligent Operation: 19-inch large touch terminal with a user-friendly interface and handheld controller.
  • Automatic Lubrication: Regular oil pump lubrication ensures long service life for driven components.
  • Eco-Friendly: Longitudinal and horizontal dedusting partitions ensure outstanding dust removal.

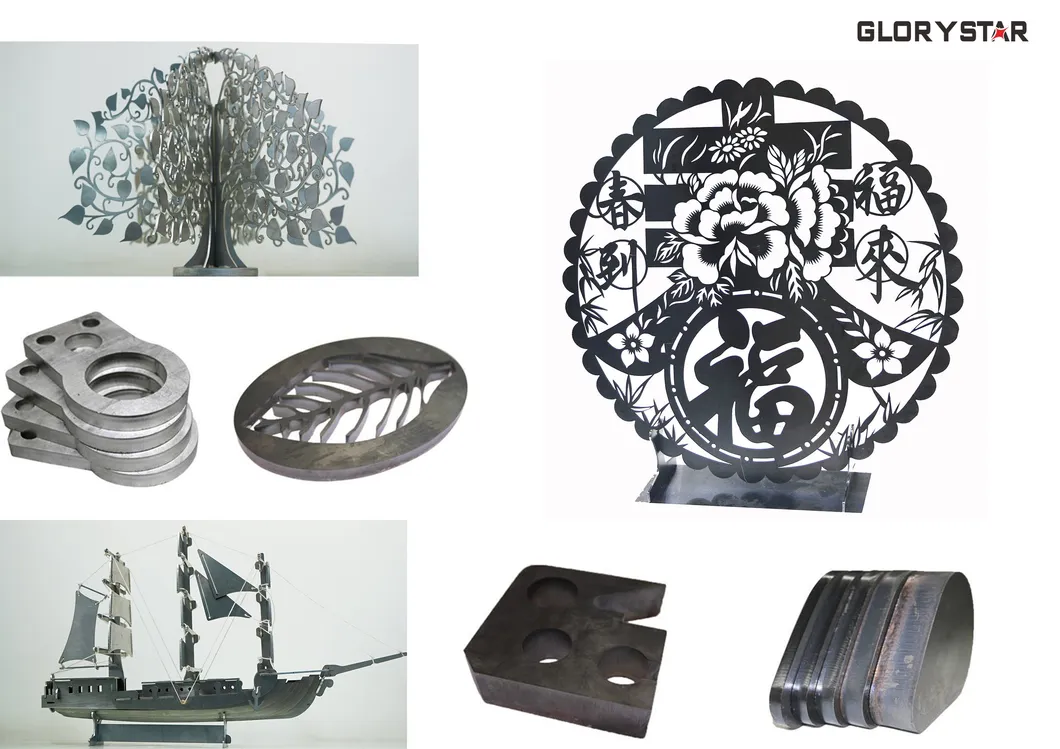

Application Fields

Industries: Advertising, Billboard, Kitchen Ware, Sheet Metal Processing, Auto Parts, Elevator Panels, Metal Crafts, and Electronic Parts.

Materials: Stainless Steel, Carbon Steel, Alloy Steel, Galvanized Sheet, Aluminum, Copper, Brass, Gold, Silver, and Various Metal Tubes.

Application 1 Application 2
Professional Service & R&D
Service Certification RD Team

Our dedicated team of over 200 R&D experts ensures that every machine meets international standards such as ISO, FDA, and CE. We provide 24/7 online support, remote diagnosis, and comprehensive training to ensure your production remains uninterrupted.

Frequently Asked Questions
What materials are suitable for this laser cutting machine?
It is ideal for cutting various metals including Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Copper, and Brass in both sheet and tube forms.
What is the advantage of the dual-use design?
The system integrates both sheet and pipe cutting functions, which saves floor space and reduces the cost of purchasing and maintaining two separate machines.
What is the positioning accuracy of the system?
The machine offers high precision with a positioning accuracy of ≤0.03mm/m and repeated positioning accuracy of ≤0.02mm.
How is the dust and emission handled?
The machine uses an eco-friendly design with longitudinal and horizontal dedusting partitions to ensure efficient dust removal and small emissions.
Is technical support available remotely?
Yes, the system supports remote diagnosis, allowing technicians to perform troubleshooting and maintenance via remote access, saving time and costs.
Does the machine require a lot of maintenance?
The design focuses on low maintenance with an integrated oil pump that automatically adds lubricating oil to driven components.
