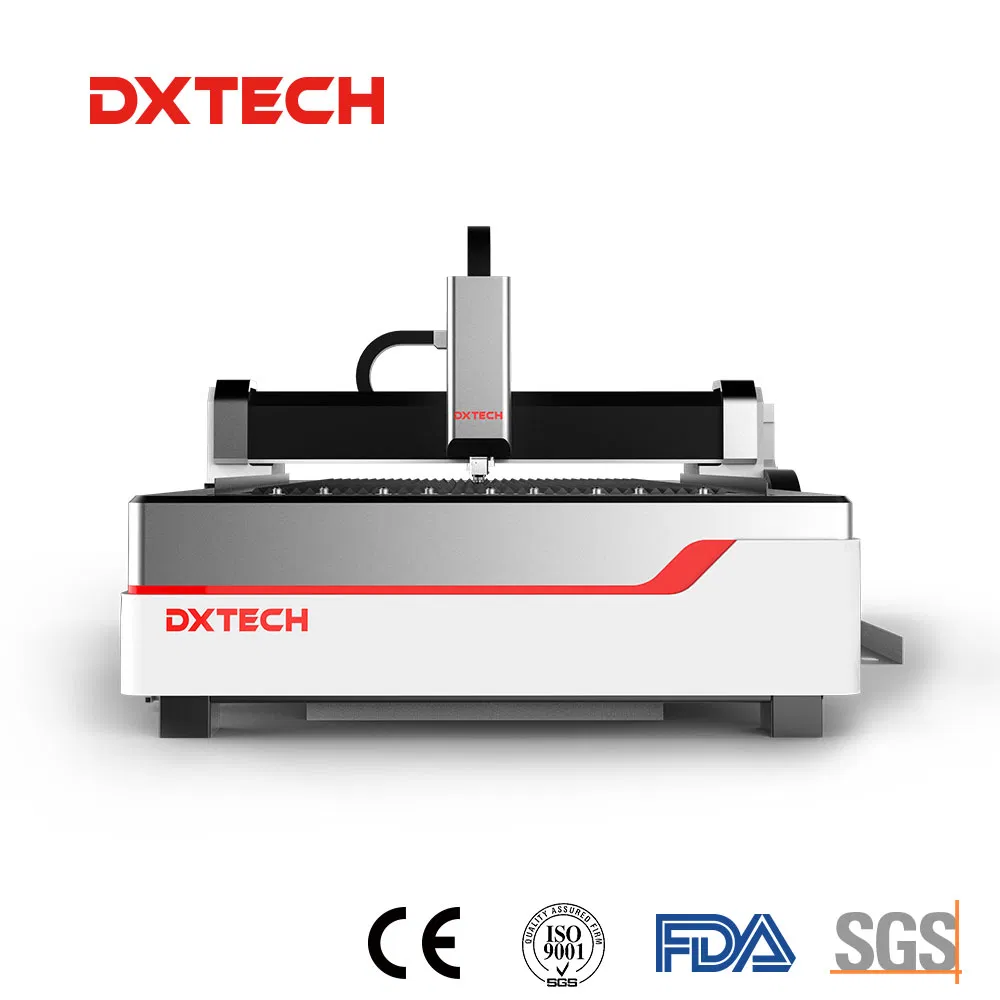

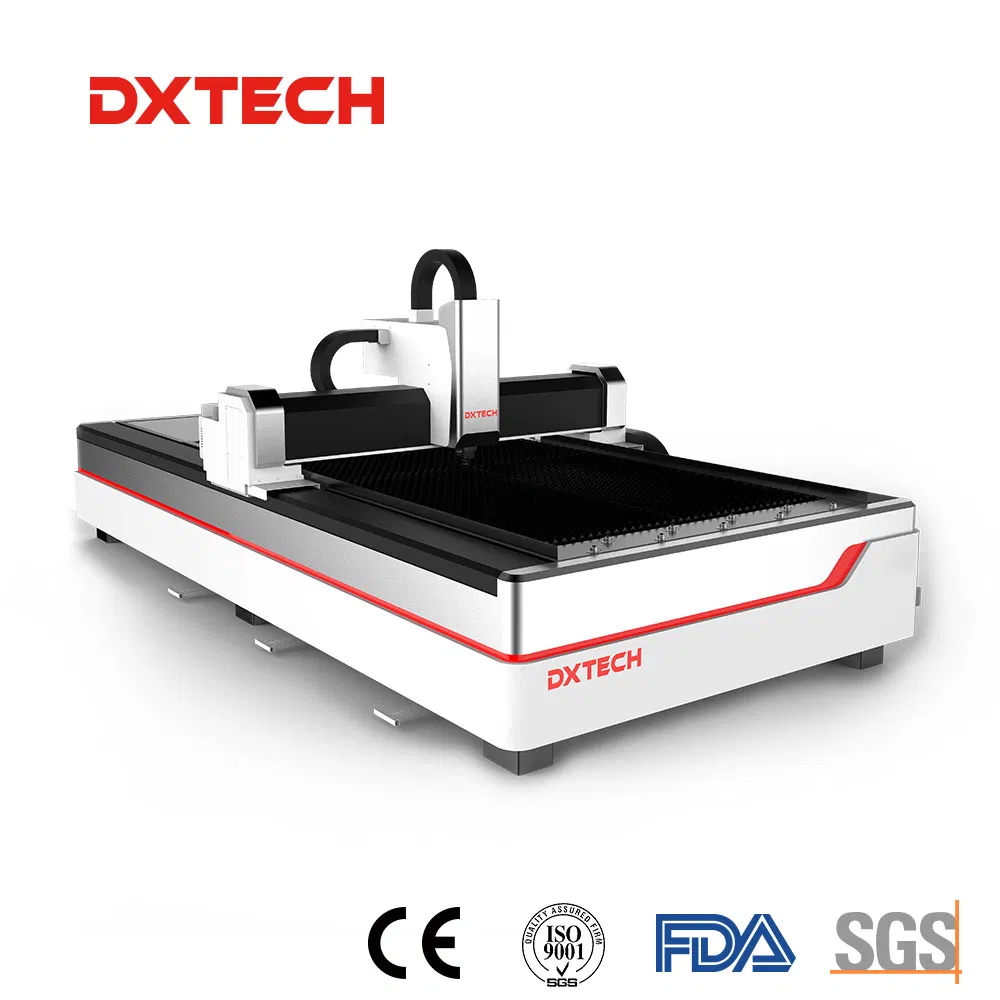

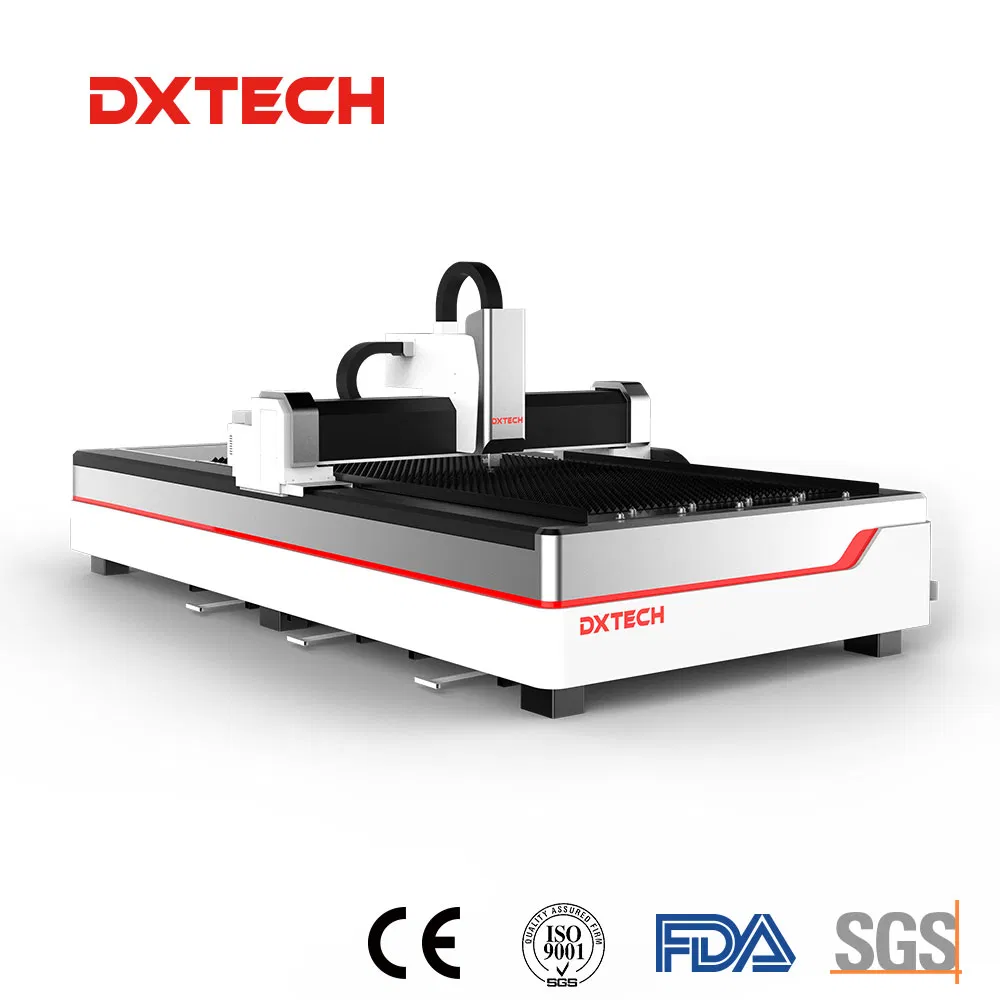

CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
1 / 5
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel
CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel

CNC Stainless Steel Aluminum Sheet Cutter Fiber Laser Metal Cutting Machine Automatic Laser Cutting System for Iron Stainless Steel

Customization: Available
After-sales Service: Online Support, Free Spare Parts
Warranty: 2 Years
Send Inquiry

Product Description

ℹ

Basic Specifications

Application
Home Appliance, Environmental Equipment, Automotive Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Fiber Laser
Main Selling Point
Competitive Price
Product Name
2000W Stainless Steel Carbon Fiber Laser Cutting
Driving System
Japan Yaskawa Servo Motor
Function
Cutting Metal Materials
Type
1530 Fiber Laser Cutting
Transmission
Hiwin Guide Rails
Cast Iron Bed
Gray Cast Iron
Cast Aluminum Beam
Higher Machining Accuracy
⚙

Product Description

This is an economical fiber laser cutting machine with high power, ranging from 500w to 12000w. It offers high cost performance, simple maintenance, and convenient operation. It can process a wide range of metal materials including Steel, Iron, Aluminum Plate, Carbon Steel, Stainless Steel, Copper, and Galvanized Sheet.

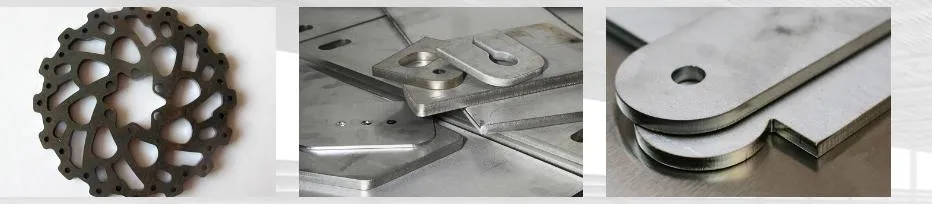

Laser Cutting System
★

Core Advantages

  • Fast cutting speed, high efficiency, safe operation, and stable performance.
  • Superior spot quality with minimal deformation for a smooth, beautiful appearance.
  • Equipped with imported servo motors and guide transmission mechanisms for high cutting accuracy.
  • Professional software allows for flexible processing of various graphics or text.
✔

Technical Features

High Precision: Positioning accuracy reaches ±0.05 mm, with repeat positioning at ±0.03 mm.
Efficient Slit: Narrow slit width generally between 0.10-0.20 mm for high power density.
Smooth Surface: Burr-free cutting surface with roughness within Ra6.5.
Dynamic Speed: Cutting speeds up to 10 m/min with positioning speeds up to 30 m/min.
Material Savings: Computer-programmed nesting maximizes material utilization.
Eco-Friendly: Clean, safe, and pollution-free processing with low noise.
📋

Technical Parameters

ModelDX-1530F
Working Area1500*3000mm (optional)
Laser Output Power1000W/2000W/3000W/4000w (optional)
X/Y-axis Positioning Accuracy±0.03mm
X/Y-axis Repositioning Accuracy±0.02mm
Max Cutting Speed25m/min
Maximum Acceleration1.5G
Servo MotorJapan Yaskawa / Japan Fuji

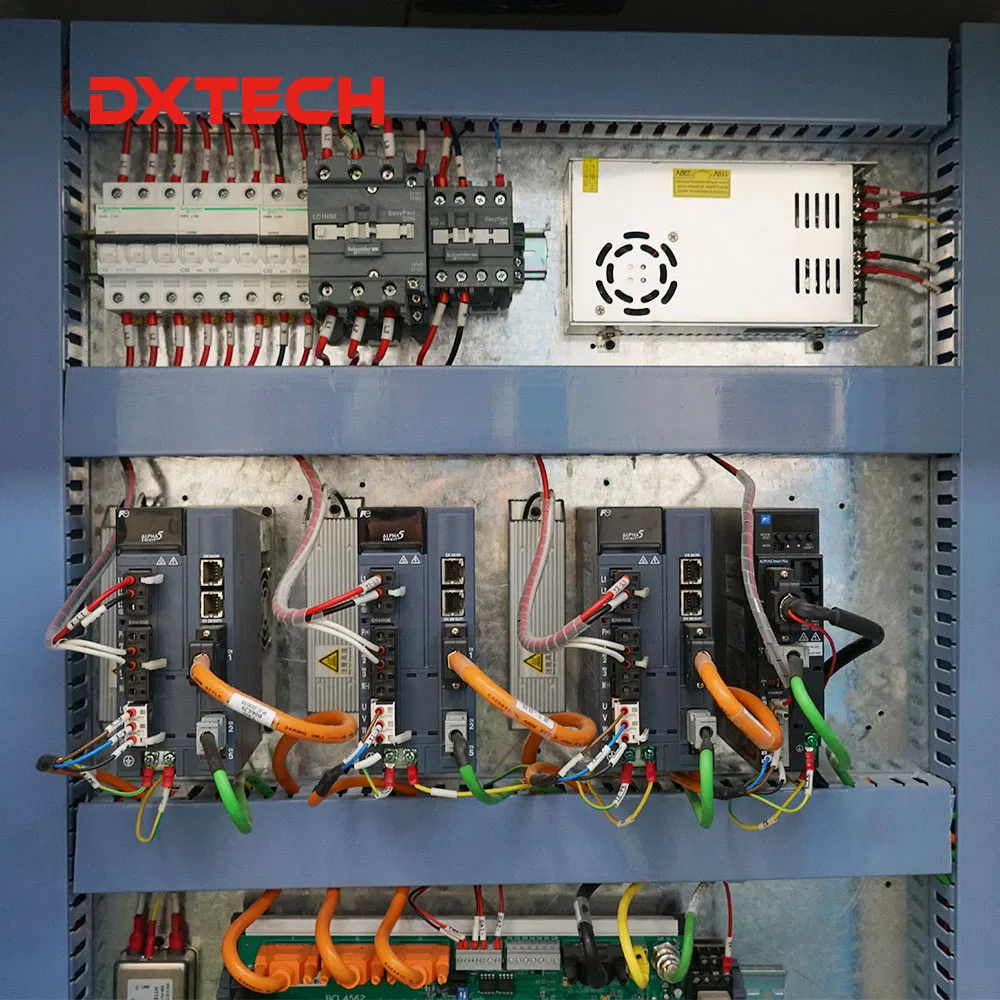

Electrical ComponentsSchneider
ReducerJapan SHIMPO
📏

Cutting Capacity

Laser Power 500w 750w 1000w 1500w 2000w 3000w
Carbon Steel 0.4-6mm 0.4-10mm 0.4-12mm 0.4-14mm 0.4-16mm 0.4-20mm
Stainless Steel 0.4-3mm 0.4-4mm 0.4-5mm 0.4-6mm 0.4-8mm 0.4-10mm
Aluminum 0.4-2mm 0.4-3mm 0.4-3mm 0.4-4mm 0.4-6mm 0.4-8mm
Brass - - 0.4-3mm 0.4-3mm 0.4-3mm 0.4-8mm
🚀

Industry Applications

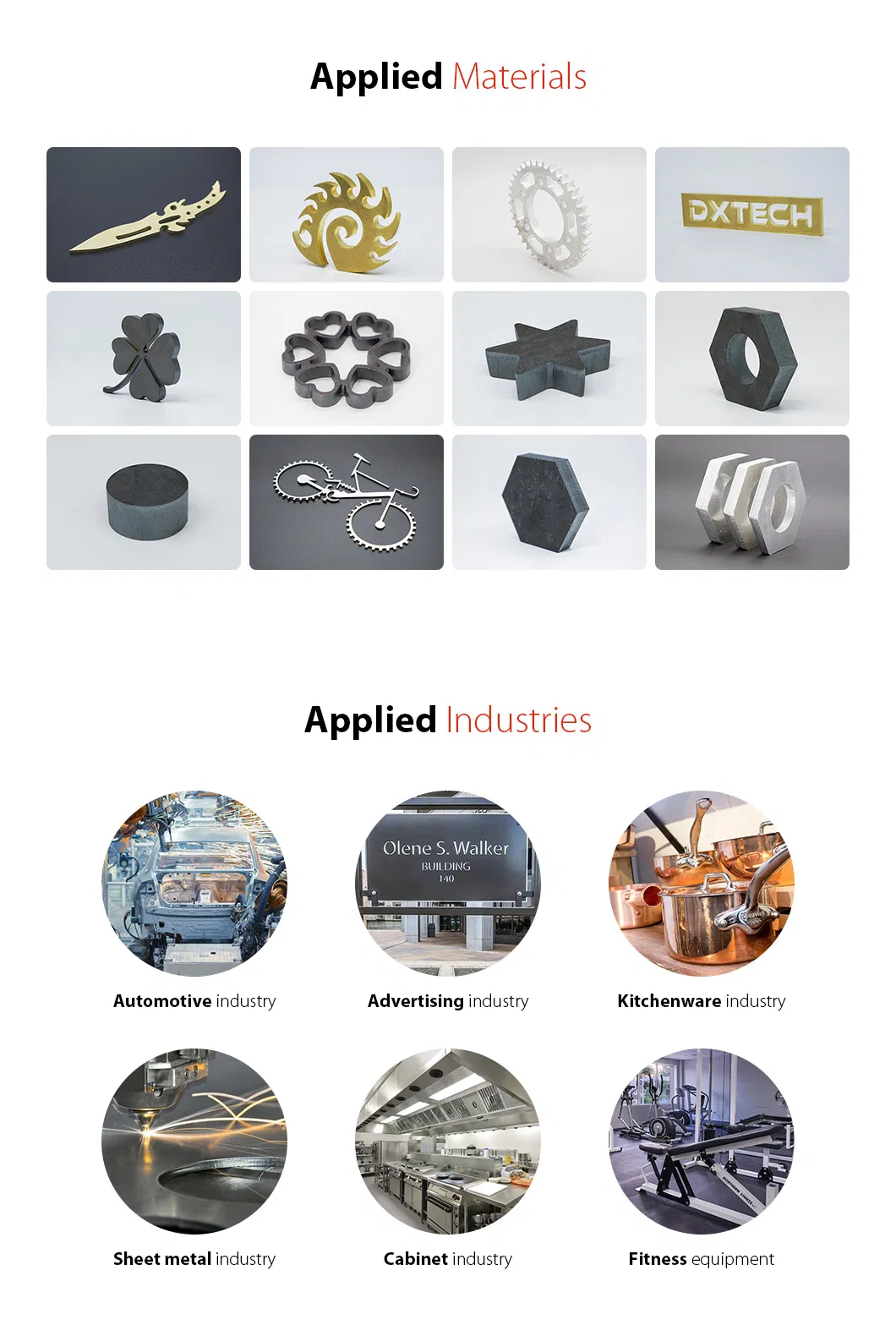

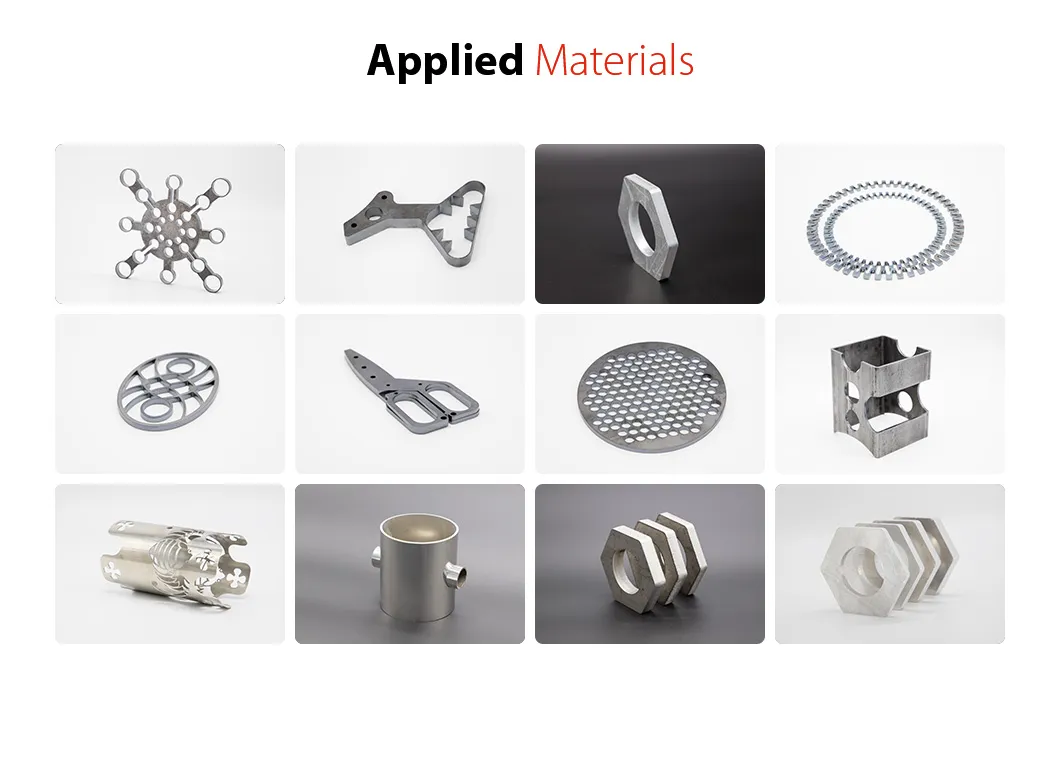

Application Samples Industry List
Suitable Materials: Stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, copper, and other metals.

Wide Range of Industries: Widely used in automotive, advertising, kitchenware, sheet metal, cabinet manufacturing, fitness equipment, aerospace, electronics, subway parts, and precision machinery processing.
📦

Packing & Delivery

Our multi-layer packaging ensures safety:
  • Innermost layer: EPE pearl cotton film.
  • Middle layer: Environmental protection wrapping material.
  • Outermost layer: PE stretch film.
Packing Process 1 Packing Process 2 Shipping Delivery Container
❓

Frequently Asked Questions

What is the maximum thickness this machine can cut?
Depending on the laser power (up to 3000W), it can cut carbon steel up to 20mm and stainless steel up to 10mm.
Is the fiber laser source durable?
Yes, fiber lasers are known for their high stability and long service life, typically exceeding 100,000 working hours with minimal maintenance.
Can this machine cut non-metal materials?
Fiber laser cutting machines are specifically designed for metal materials like steel, aluminum, and copper. For non-metals, CO2 lasers are generally used.
How accurate is the cutting process?
The machine features a positioning accuracy of ±0.05 mm and a repeat positioning accuracy of ±0.03 mm, ensuring high-precision results.
What cooling system does the machine use?
The system utilizes professional water cooling to ensure the laser source and cutting head maintain an optimal operating temperature.
Is the operation software difficult to learn?
No, the professional cutting software is designed for an intuitive user experience, allowing for quick graphic design and immediate processing.
