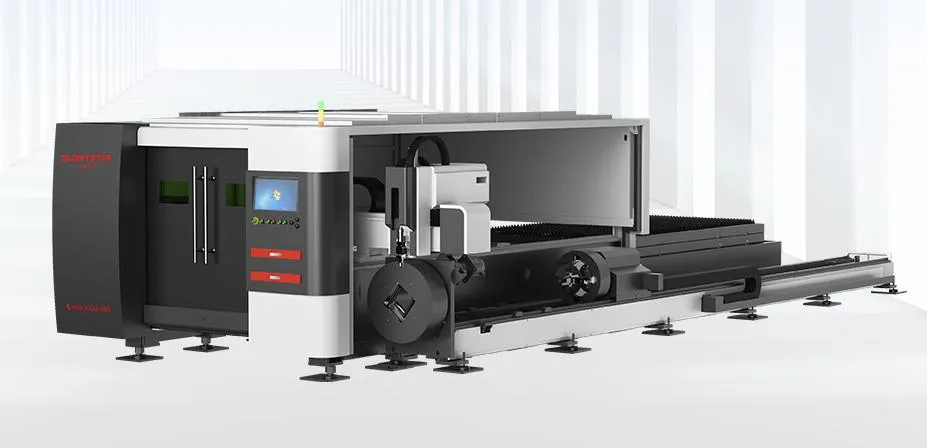

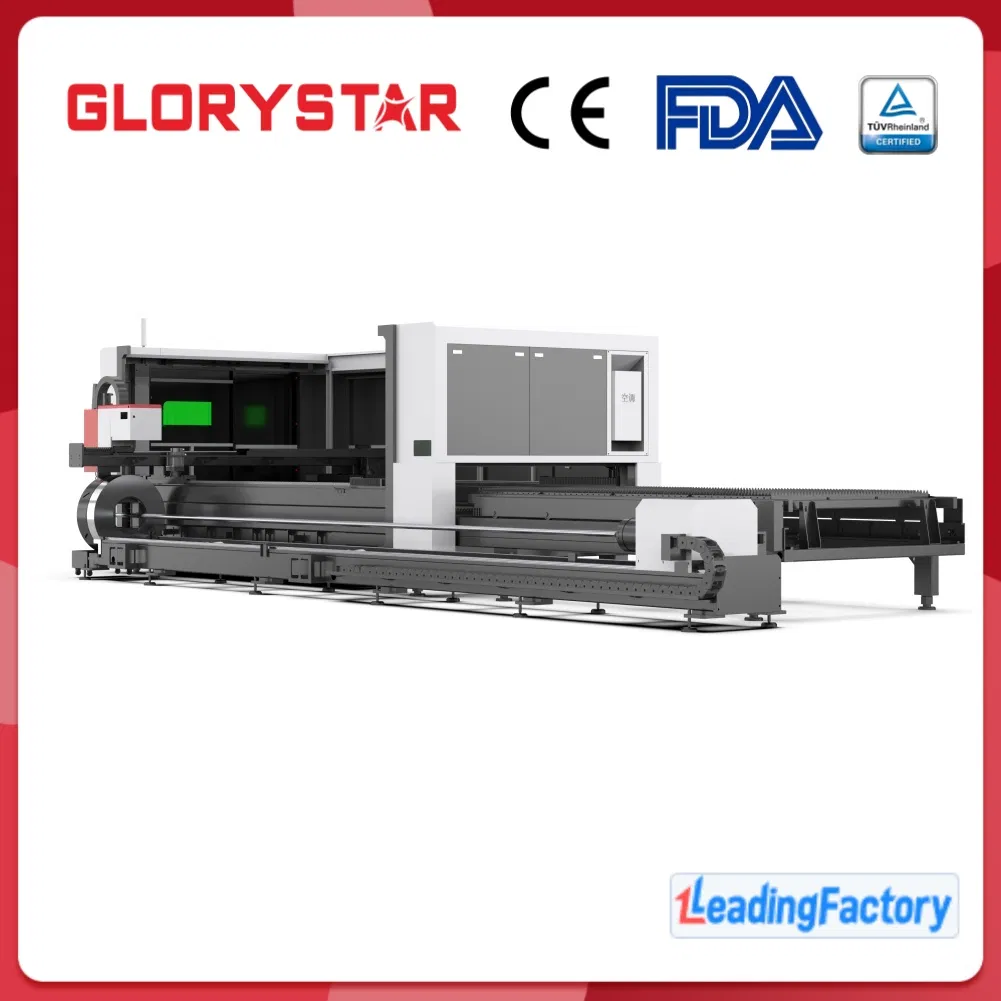

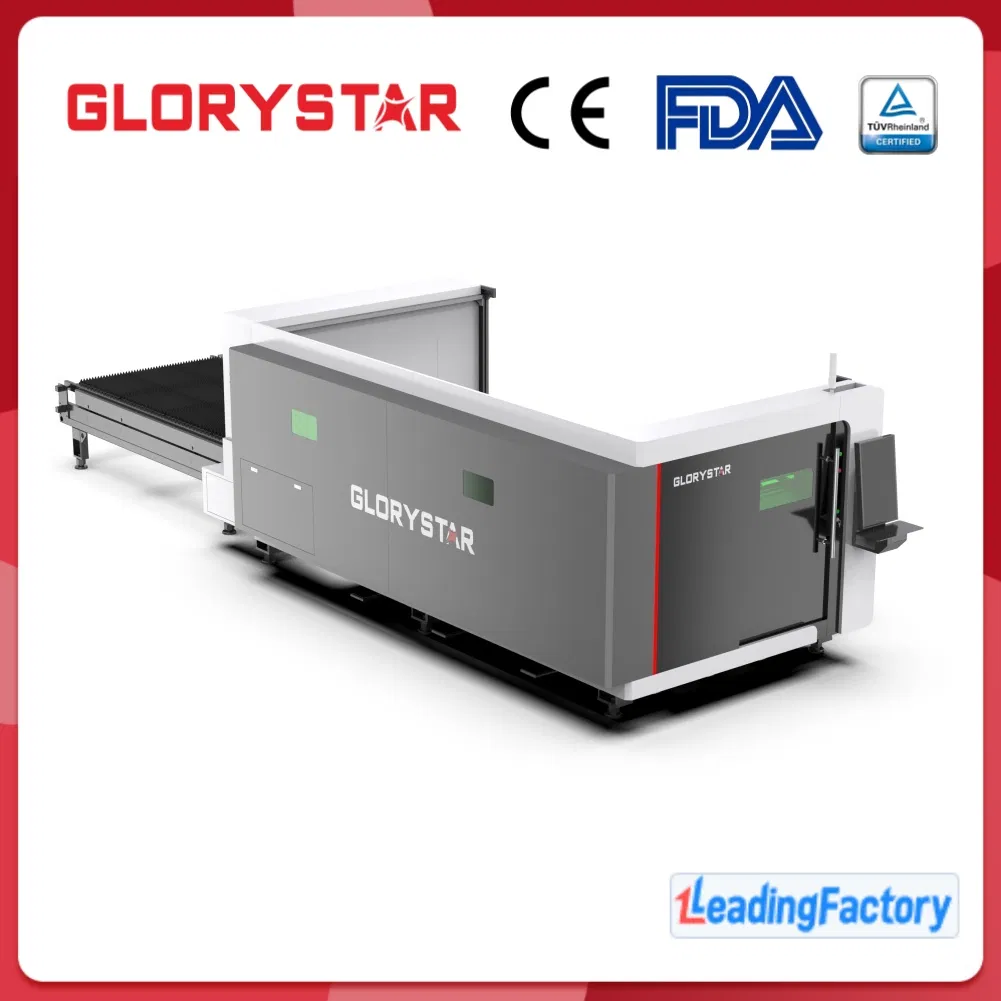

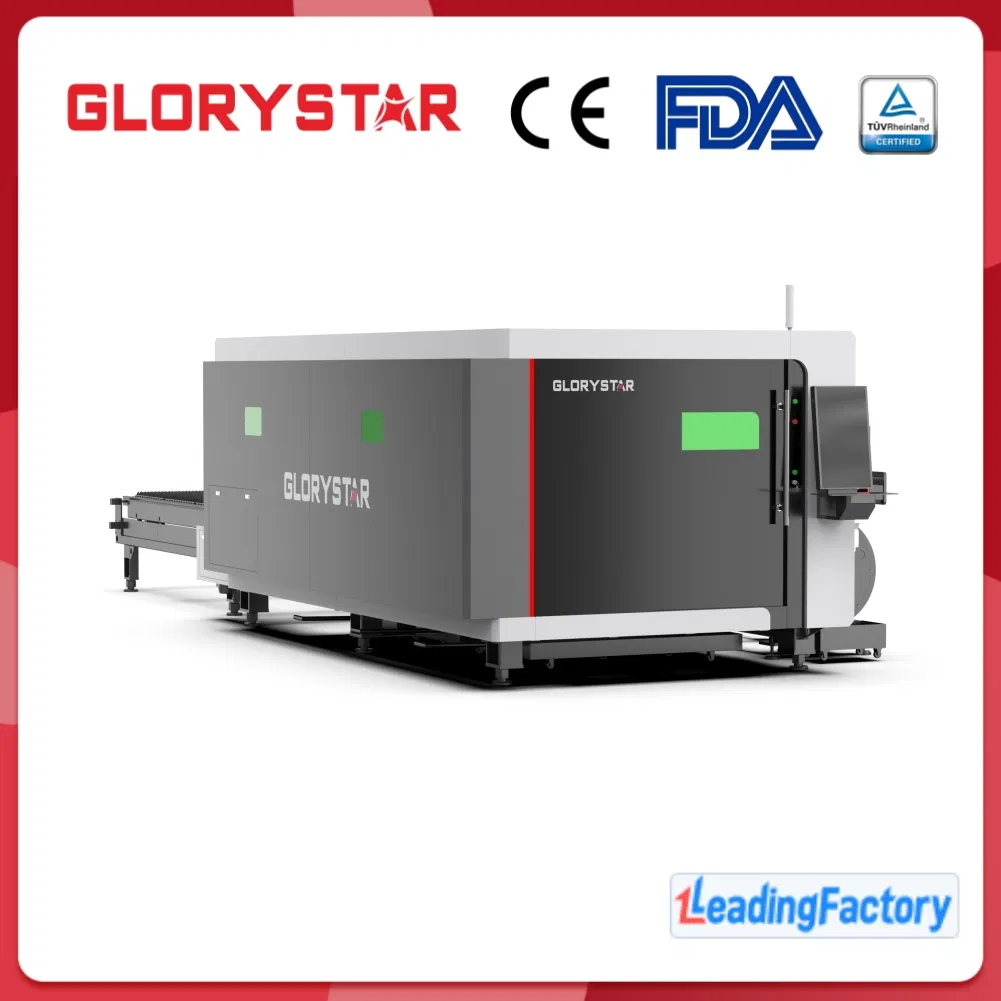

Compact layout with dual usage, realizing continuously benefit from machine's eco-friendly design and high-efficiency and stable fine cutting. This system integrates the functions of both sheet cutting and pipe cutting, meeting diverse industrial requirements in one machine.

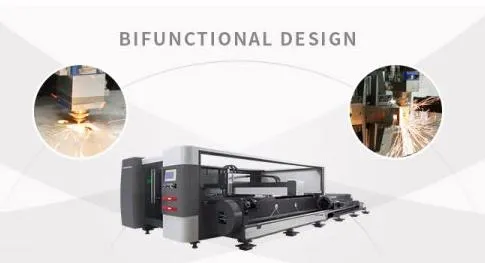

Integrates sheet and pipe cutting functions. Meet the cutting requirements of various materials without switching machines.
Floor space is greatly reduced compared to having two separate machines, saving valuable factory real estate.

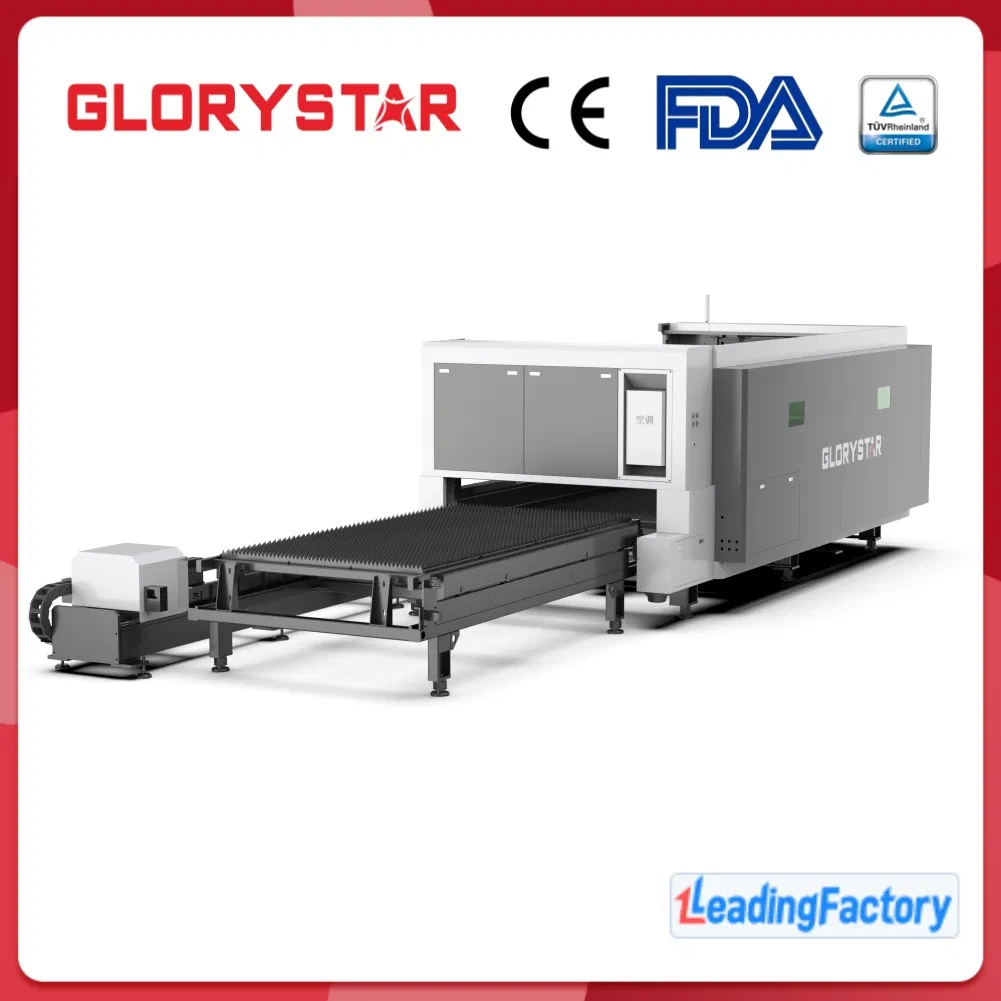

Equipped with a parallel fast exchange worktable for easy loading and unloading, maximizing processing time.
🚀 Good Dynamic Characteristics: High-strength welded body and aluminum beams ensure excellent rigidity and high speed.
🛡️ High Stability: EtherCAT bus controlled network transmission offers high reliability and immunity to interference.
🎮 Perfect Accessibility: Intelligent operating terminal with a friendly interface and moveable hand-held controller.

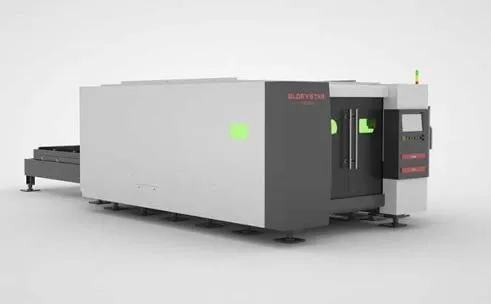

🌱 Ergonomic Safety: Fully-enclosed protective design with OD5 class fiber optic protective glass for operator safety.
| Parameter Item | Specifications |
|---|---|
| Maximum Material Width (mm) | 3000*1500 |
| X/Y-axis Positioning Accuracy | ≤0.03mm/m |
| X/Y-axis Repeated Positioning Accuracy | ≤0.02mm |
| Maximum Synthetic Positioning Speed | 100m/min |
| Maximum Acceleration | 1.2G |
| Tube Cutting Range | Diameter: 20-220mm, Weight: 20Kg/m |
| Tube Cutting Length | 6-meter, Automatic chucks |
| Driving Mode | Gear rack dual drive |
| Machine Weight | 8 Tons |
| Power Requirements | AC380V, 50Hz; 3P+N+PE |

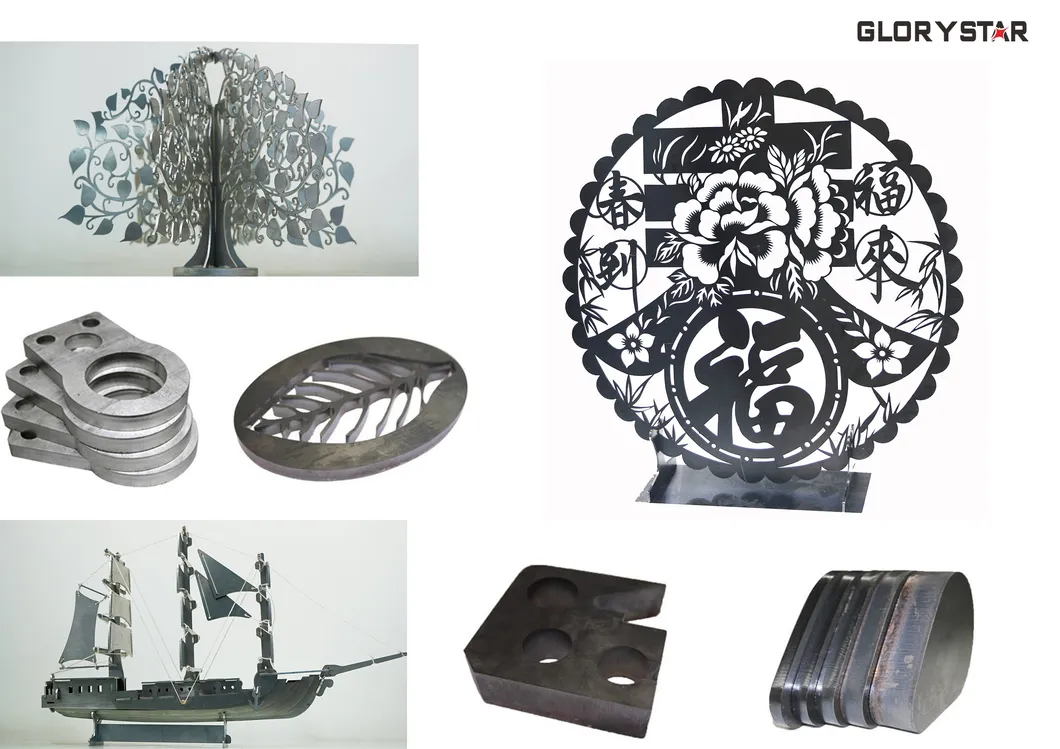

Materials: Stainless Steel, Carbon Steel, Alloy Steel, Galvanized Sheet, Aluminum, Copper, Brass, Gold, Silver, and Various Tubes.
Industries: Billboard, Advertising, Kitchenware, Metal Crafts, Auto Parts, Elevator Panel Cutting, and Electronic Components.
Technician dispatch for on-site debugging and initial staff training.
Standard 12-month warranty with round-the-clock online technical assistance.
Troubleshooting via remote access to minimize downtime and maintenance costs.
