| Model NO. | GS-3015CEG |
| Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser |
| Applicable Material | Metal (Stainless Steel, Carbon Steel, Copper, etc.) |
| Structure Type | Large Full-Enclosed & Exchangeable Worktable |
| Laser Classification | Fiber Laser |
| Standard Working Area | 1500X3000mm |
| Production Capacity | 1000 sets/Year |

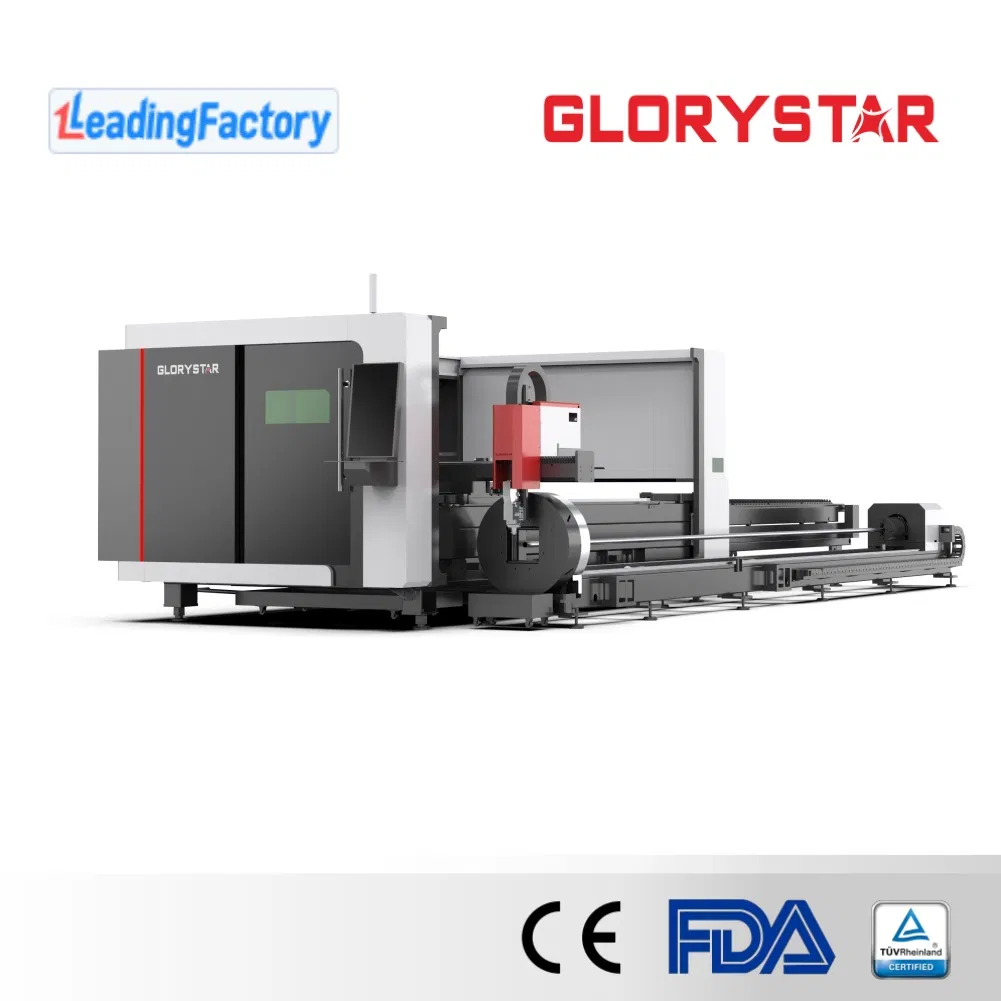

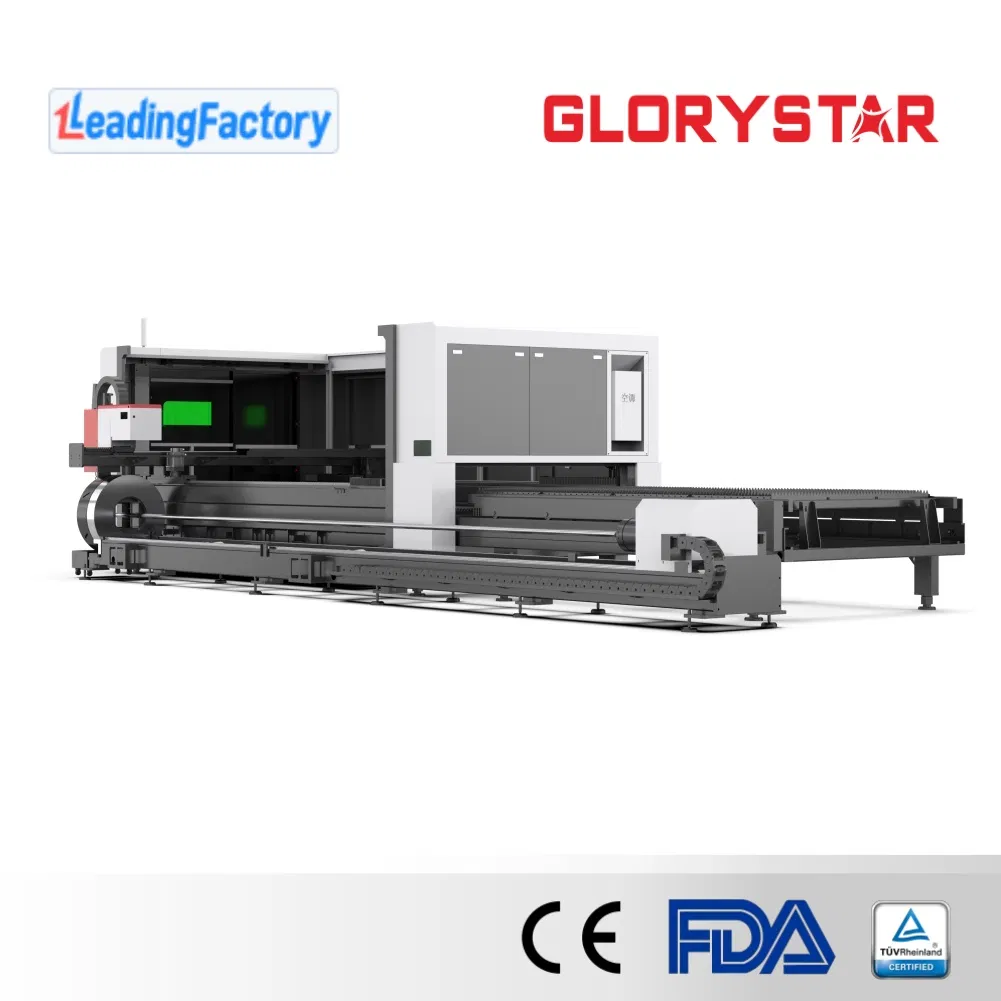

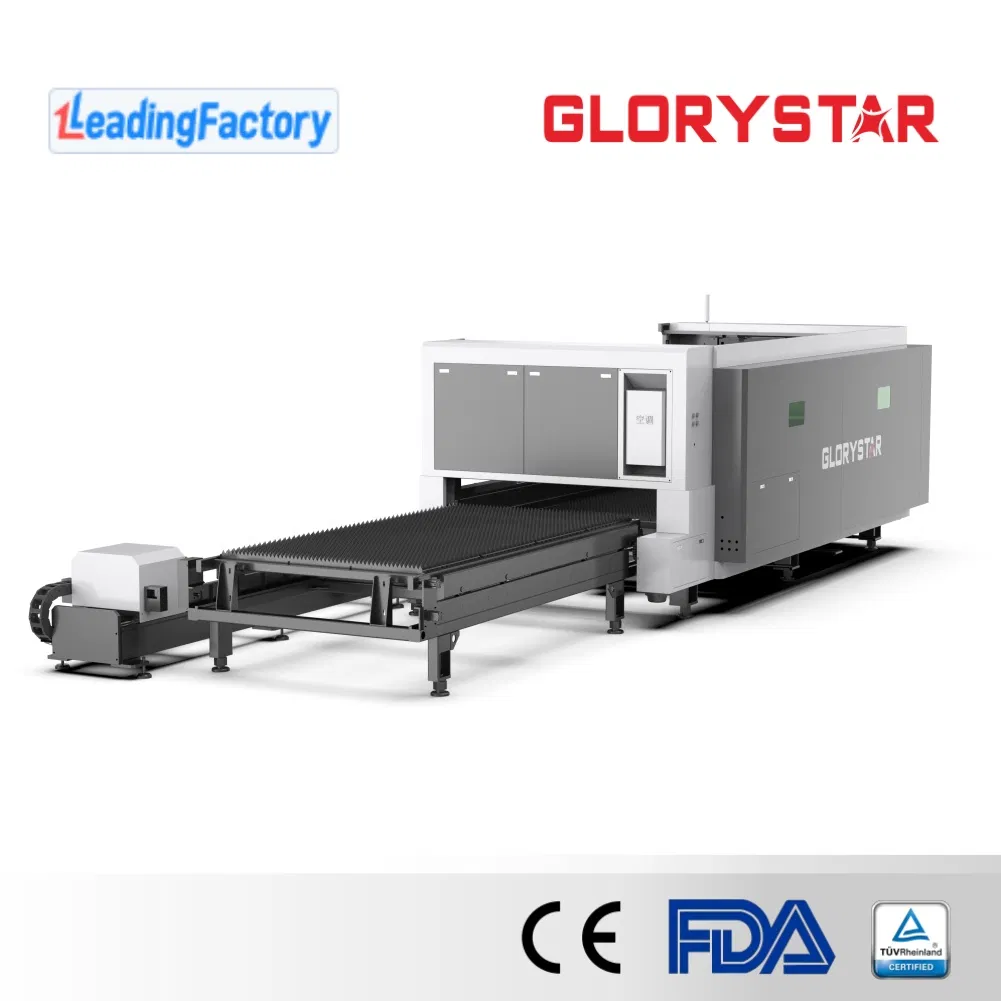

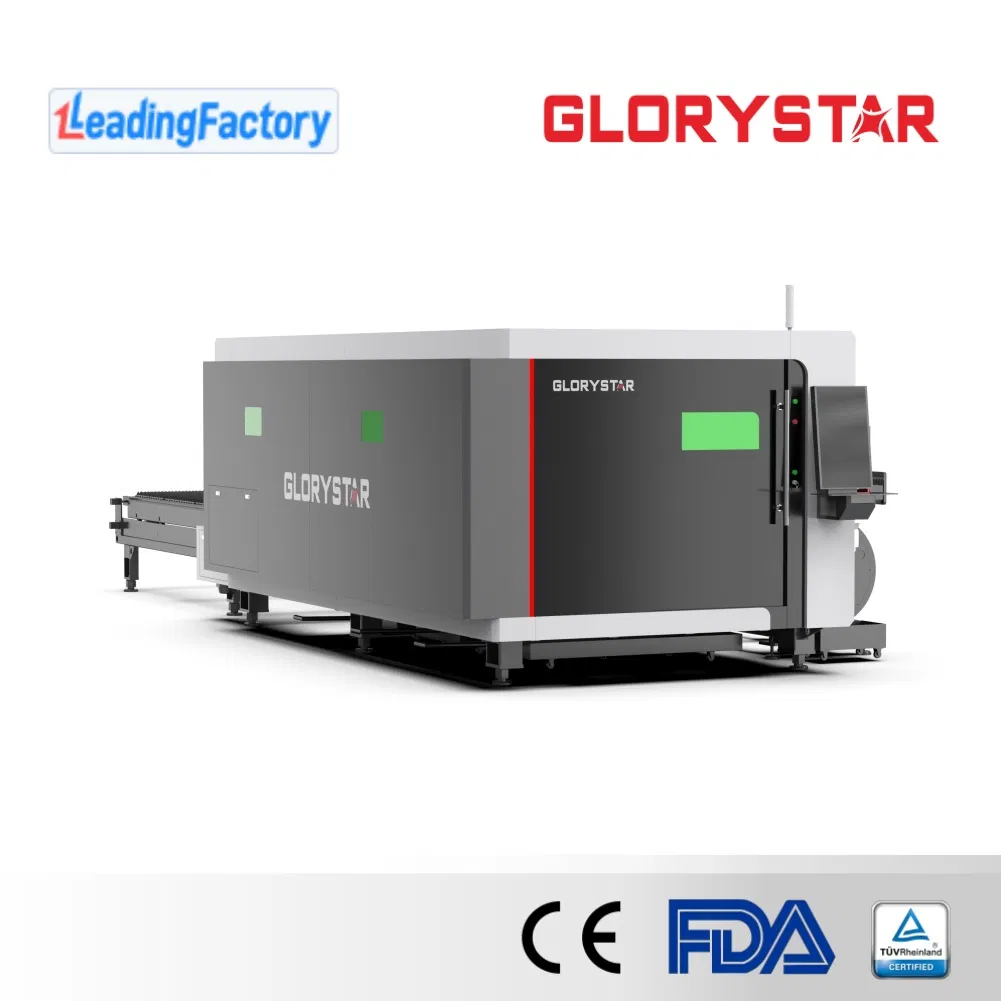

Compact layout with dual usage, realizing continuous benefits from eco-friendly design and high-efficiency stable fine cutting.

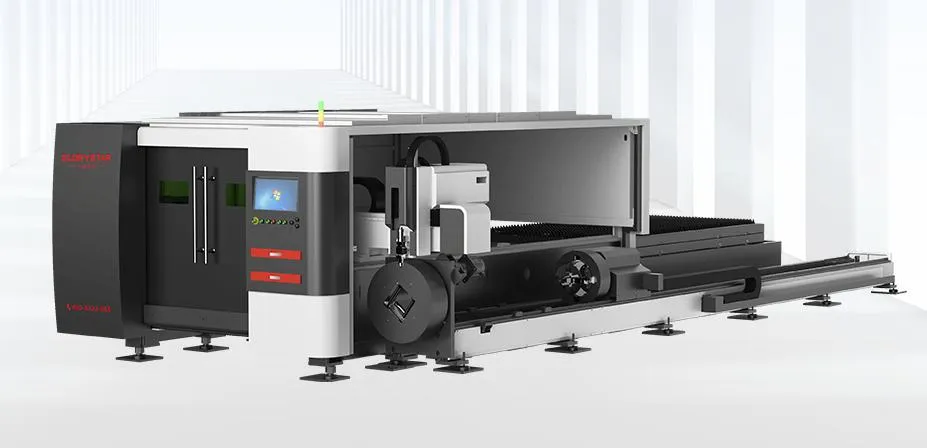

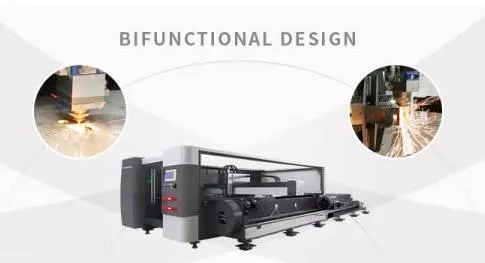

Integrates sheet cutting and pipe cutting functions to meet various requirements for various metal forms.

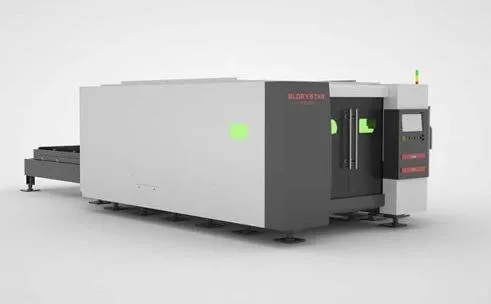

Reduces floor space significantly compared to operating two separate machines, saving valuable factory real estate.

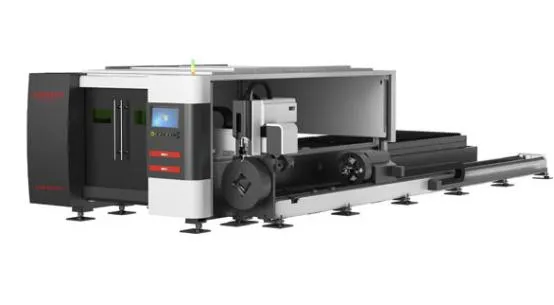

One machine meets multiple processing needs, providing more cost-effective solutions for business growth.

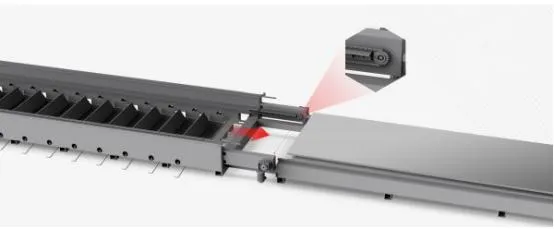

Equipped with a parallel fast exchange table for convenient loading/unloading and high operational efficiency.
1. High-strength welded body and aluminum beams ensure excellent rigidity.
2. Double side drive gantry provides balanced force and small transmission error.
3. Automatic focal length adjustment improves processing efficiency.
1. EtherCAT bus controlled network offers high reliability and anti-interference.
2. Integrated software PLC design reduces hardware fault risks.
3. Automatic oil pump regular lubrication ensures long service life of driven components.

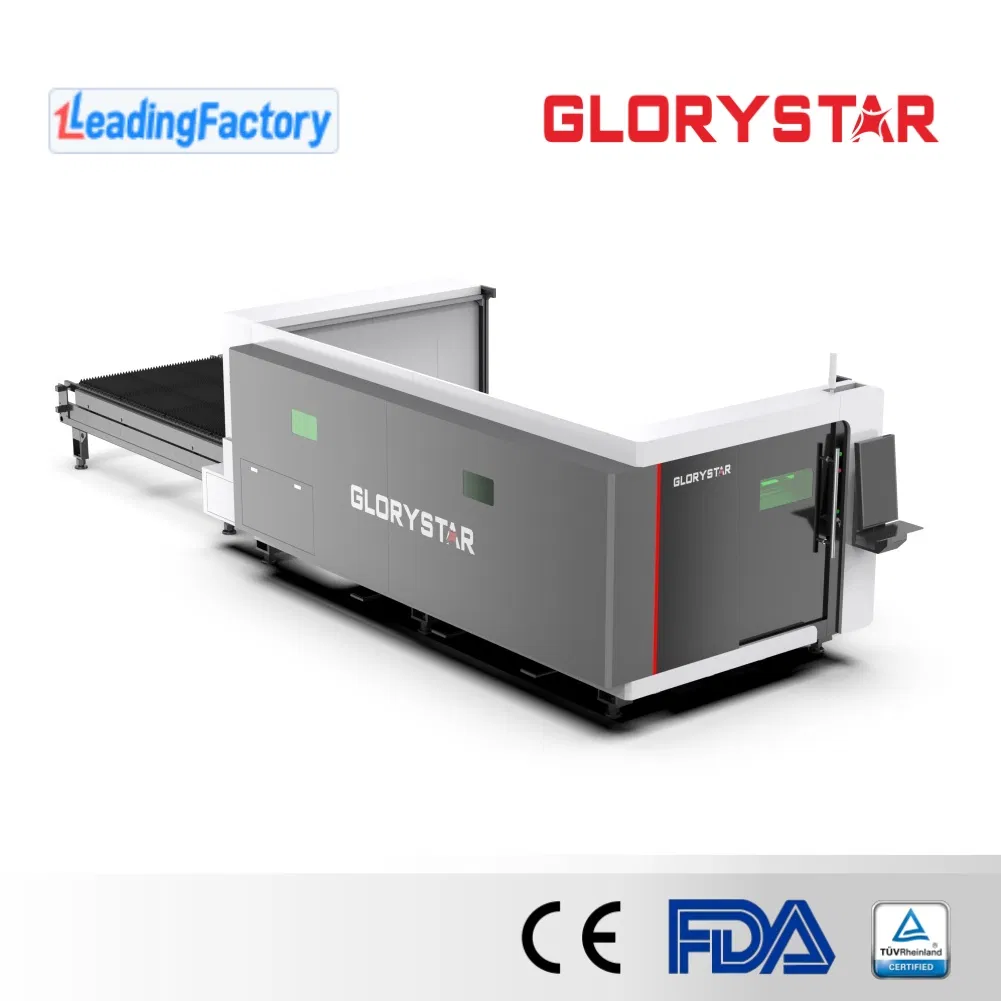

1. Fully-enclosed protective design with OD5 class fiber optic protective glass.
2. 19" large size touch operating terminal with adjustable visual angle.
3. Eco-friendly design with low noise and minimized dust emission.
| Description | Specification |
|---|---|
| Maximum material width | 3000*1500 mm |
| X/Y-axis positioning accuracy | ≤0.03mm/m |
| X/Y-axis repeated positioning accuracy | ≤0.02mm |
| Maximum synthetic positioning speed | 100m/min |
| Maximum acceleration | 1.2G |
| Slit's width | 0.1mm - 0.5mm |
| Maximum tube cutting range | Diameter: 20-220mm, Weight: 20Kg/m |
| Maximum tube cutting length | 6-meter, Automatic chucks |
| Driving mode | Gear rack dual drive |
| Machine weight | 8 Tons |
| Power requirements | AC380V, 50Hz; 3P+N+PE |

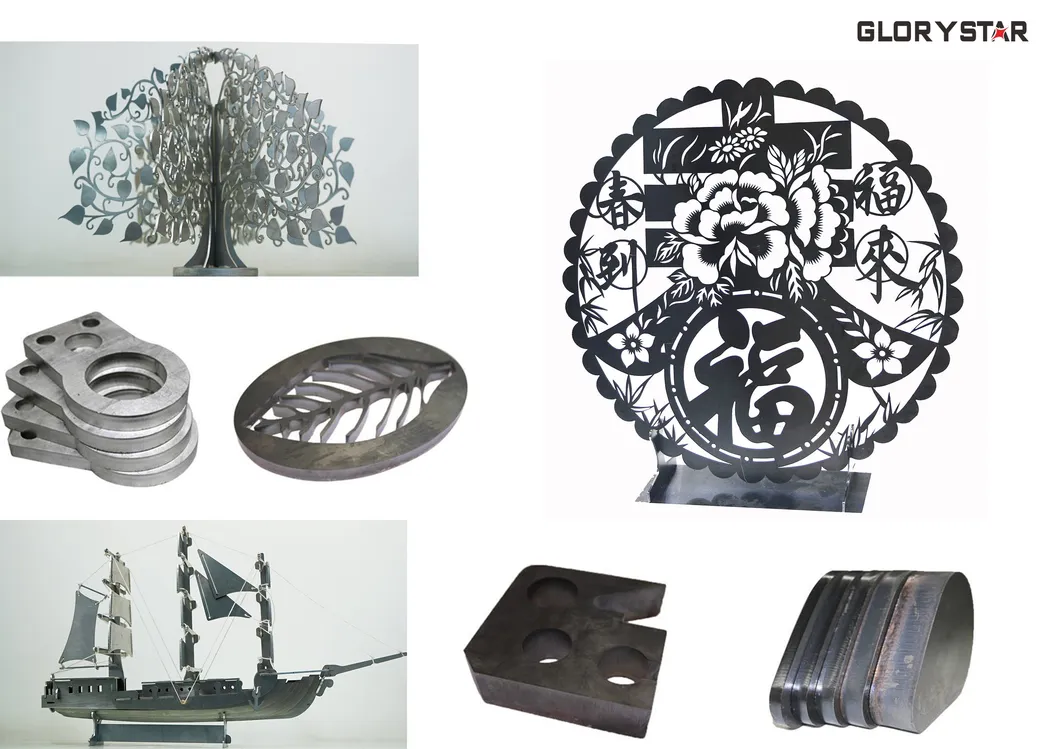

Suitable for Billboard, Advertising, Kitchen Ware, Sheet Metal Processing, Auto Parts, and Elevator Panel Cutting. Materials include Stainless Steel, Carbon Steel, Alloy, Iron, Galvanized Sheet, Aluminum, Copper, and Brass.
Comprehensive service including installation, debugging, and 24/7 online support. Remote diagnosis allows technicians to perform troubleshooting via remote access, ensuring minimal downtime. All equipment comes with a standard warranty, including 2 years for the laser source.
Products have passed ISO, America FDA, Switzerland SGS, and European CE certifications, meeting rigorous international standards for high-quality fiber laser cutters.
