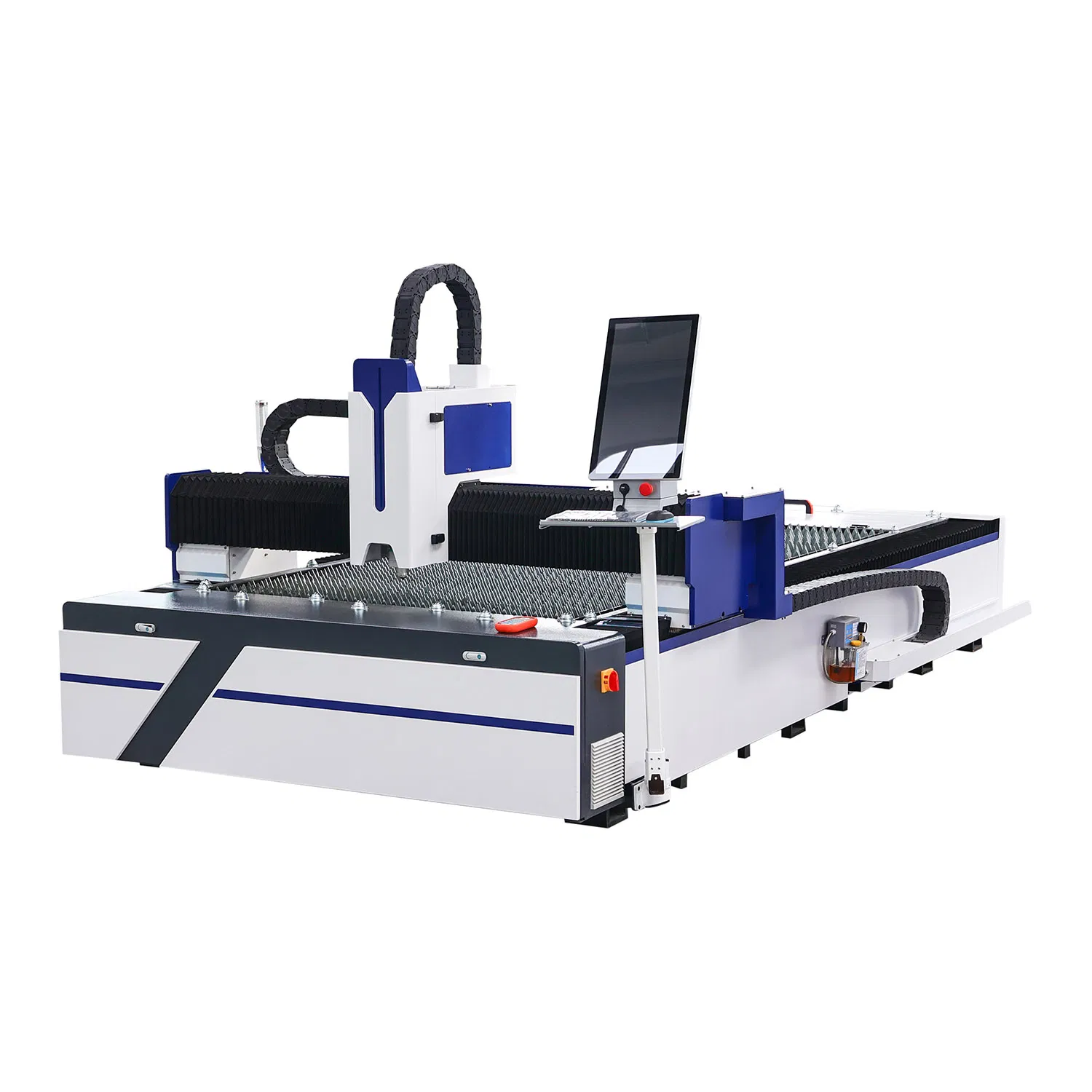

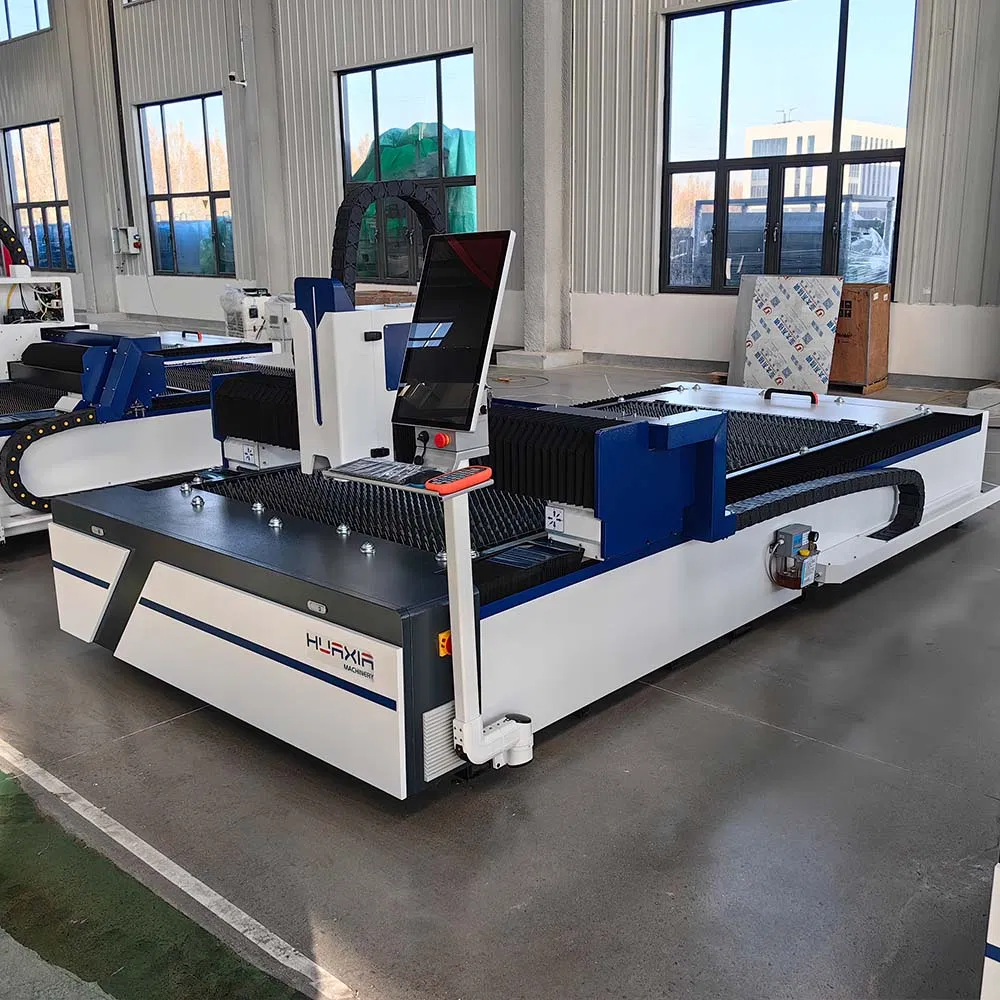

Automotive Parts Laser Cutting System – Complex Shape Processing

Still deciding? Get samples of $ !
Order Sample

Product Description

Fiber Laser Cutting System
Basic Information
Model NO.
HXF
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Product Name
CNC Fiber Laser Metal Cutting Machine
Laser Power
1500W / 2000W / 3000W
Working Area
1500mmx3000mm / 2000mmx4000mm / 2000mmmx6000mm
Positioning Accuracy
0.03mm
Certification
CE / ISO Certificate
Machine Features
01
High performance laser equipment with a stable operating system to achieve optimal cutting effects.
02
Perfect cooling, lubrication, and dust removal systems ensure efficient and durable operation.
03
Single table design with auxiliary loading and unloading function to improve productivity.
04
Large size closed box improves dust removal and prevents light pollution.
05
Automatic height adjustment maintains constant focal length for stable cutting quality.
06
Gantry type structure with embedded cast aluminum beam provides strong rigidity and stability.
Technical Specifications
ModelFAST-F3015 / 4015 / 4020 / 6020
Working Area3000*1500mm (Customizable)
Laser GeneratorRaycus / IPG / MAX
Max Moving Speed140m/min
Location Accuracy0.01mm
Materials ThicknessMax 40mm
Machine Warranty3 Years
Applicable MaterialsStainless steel, carbon steel, alloy, copper, aluminum, gold, silver, titanium, etc.
Core Components

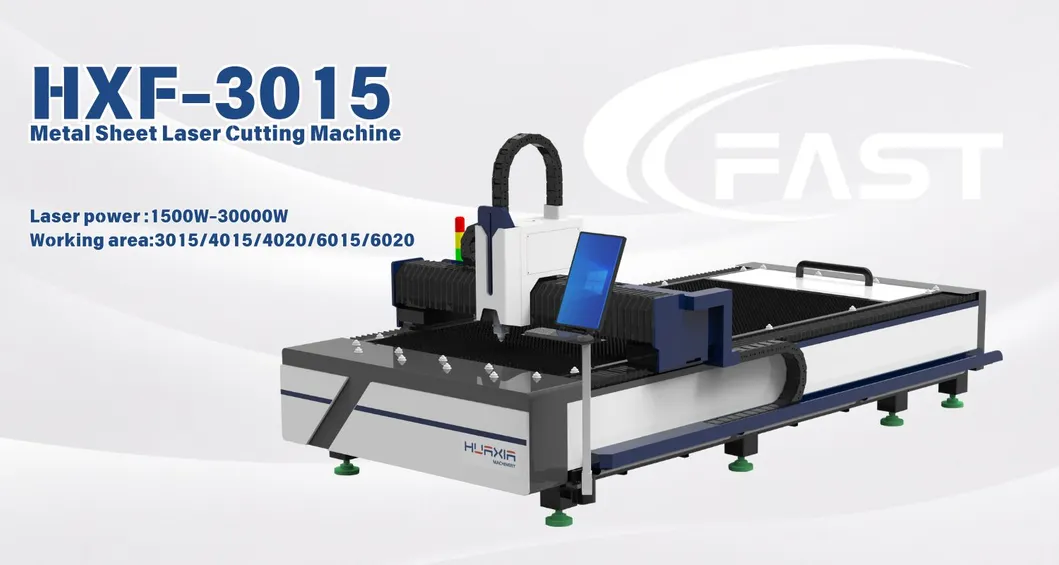

Machine Overview

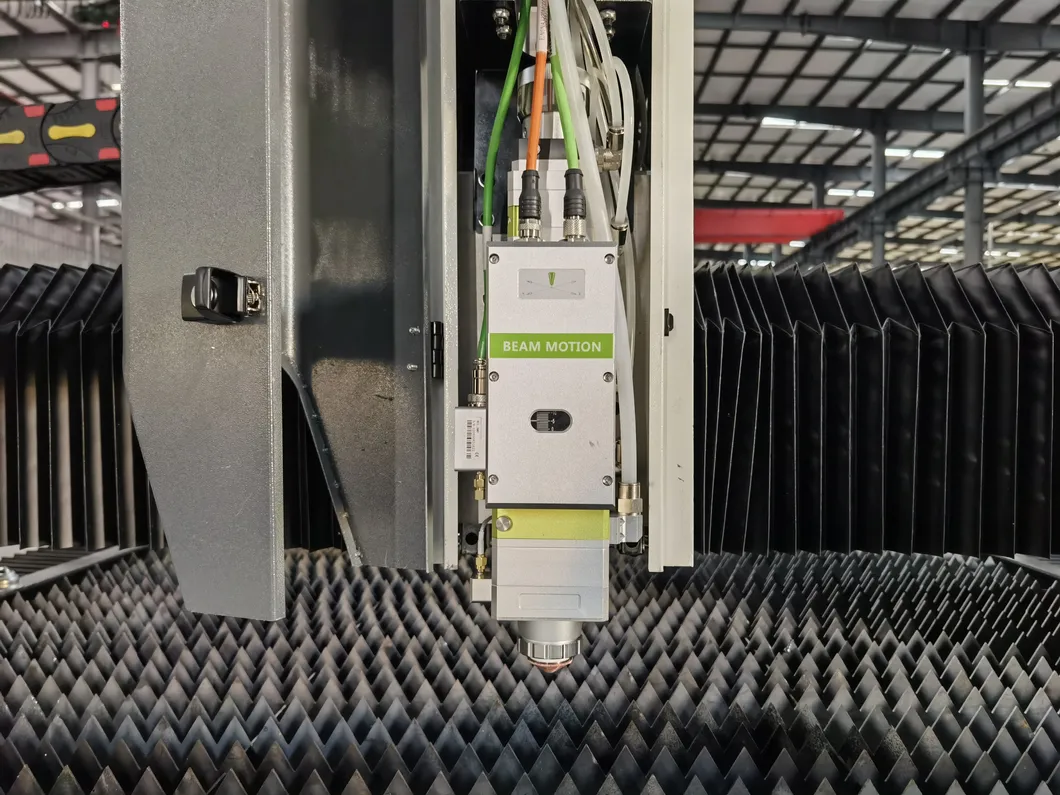

Auto-focus laser head
Auto-focus Laser Head

Made of high-quality materials with advanced technology. Professional, stable, and reliable. The protective lens is drawer-installed for convenient replacement, and the head is sealed to avoid dust pollution.

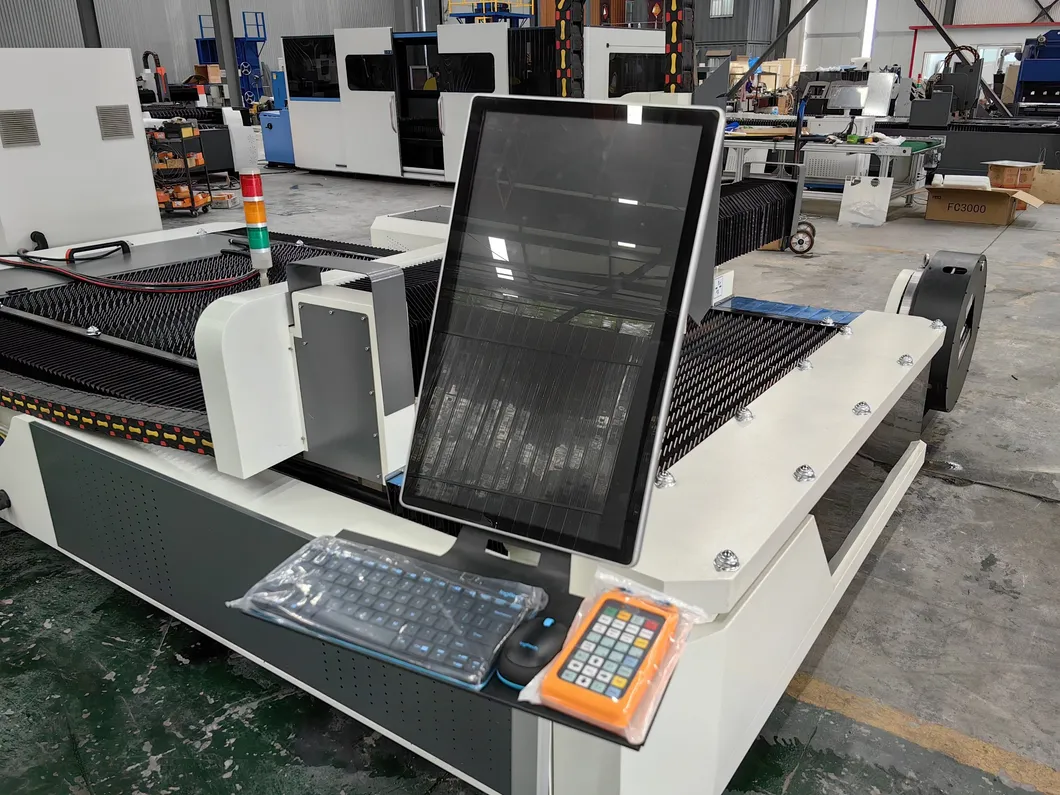

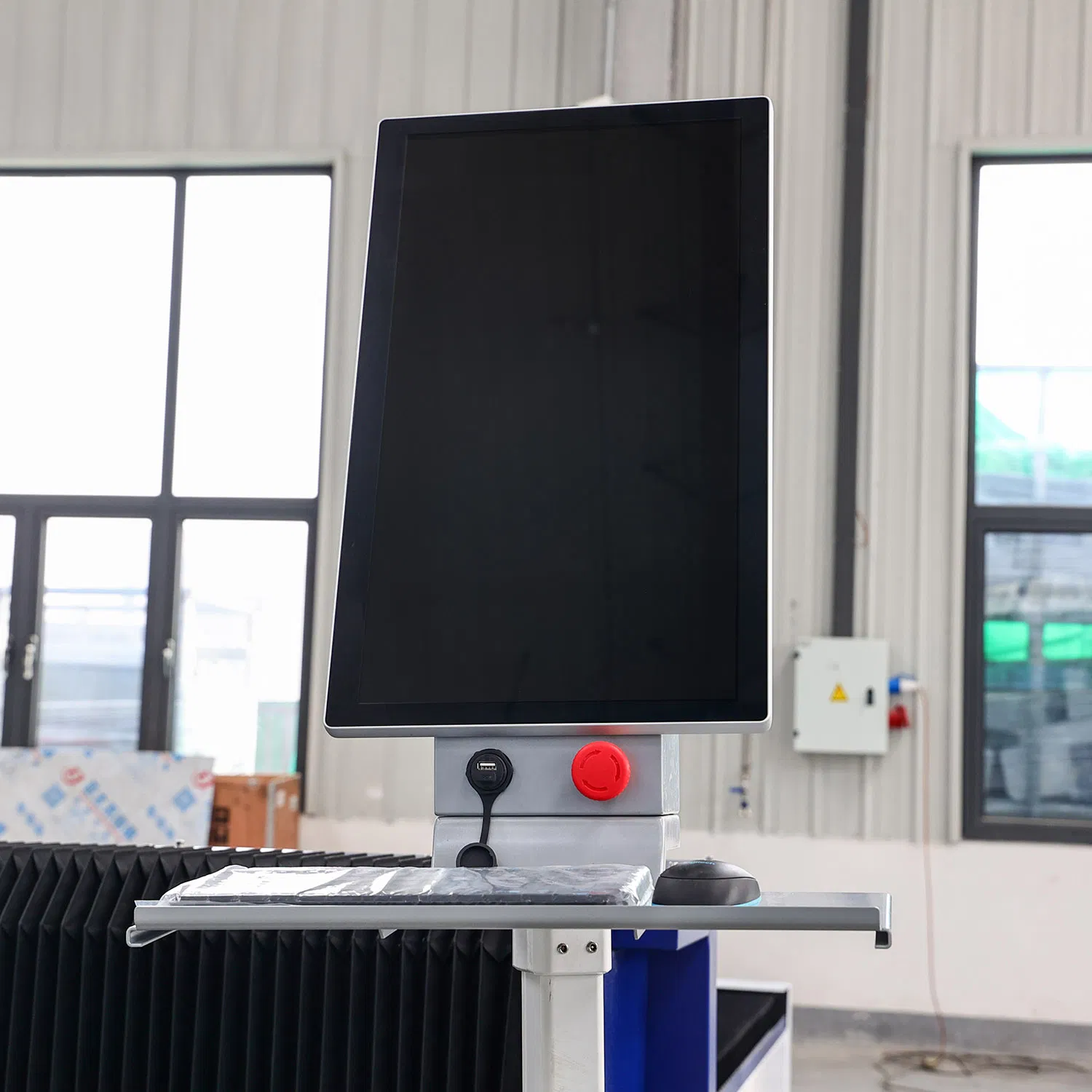

Laser Cutting CNC System

Features automatic edge searching, typesetting, and focusing. This intelligent system is customized for the laser cutting industry, offering ease of use and rich functionality for various processing needs.

CNC System

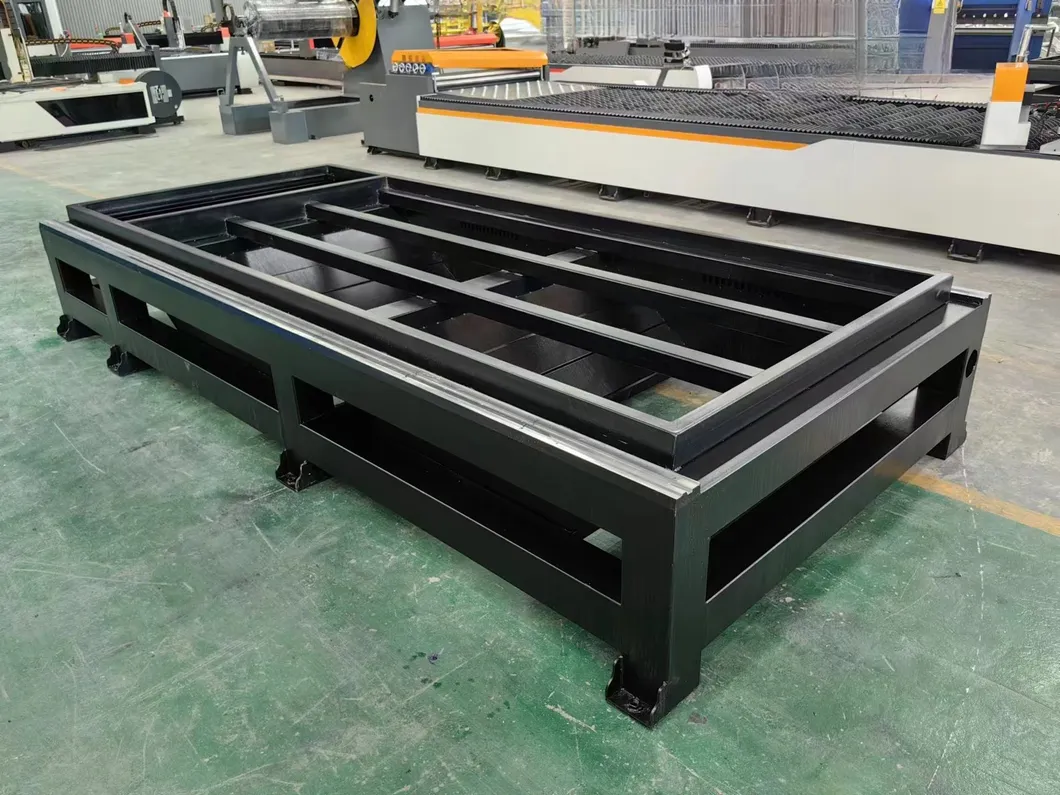

High precision bed
High Precision Bed

Utilizes high-quality square tube welding and high-temperature annealing to eliminate internal stress. Ensures toughness, hardness, and resistance to deformation for long-term mechanical stability.

Product Gallery & Samples
Sample 1
Sample 2
Sample 3
Sample 4
Sample 5
Sample 6
Frequently Asked Questions
Q1: What materials can the fiber laser cutting machine process? A1: It is suitable for cutting various metal materials including stainless steel, carbon steel, alloy steel, spring steel, copper, aluminum, gold, silver, and titanium.
Q2: What is the maximum thickness the machine can cut? A2: The machine can cut materials up to a maximum thickness of 40mm, depending on the laser power and material type.
Q3: How accurate is the positioning of the machine? A3: The machine features high precision with a positioning accuracy and repeatability accuracy of 0.03mm (some configurations up to 0.01mm).
Q4: What are the main advantages of the auto-focus laser head? A4: The auto-focus head ensures a constant focal length for stable cutting results, features a dust-sealed design, and allows for easy replacement of protective lenses via a drawer system.
Q5: Which industries benefit most from this equipment? A5: It is widely used in automotive, aerospace, advertising, home appliances, agriculture machinery, textile machinery, and environmental equipment manufacturing.
Q6: What is the warranty period for the machine? A6: We provide a 3-year warranty for the machine to ensure long-term reliability and customer satisfaction.
