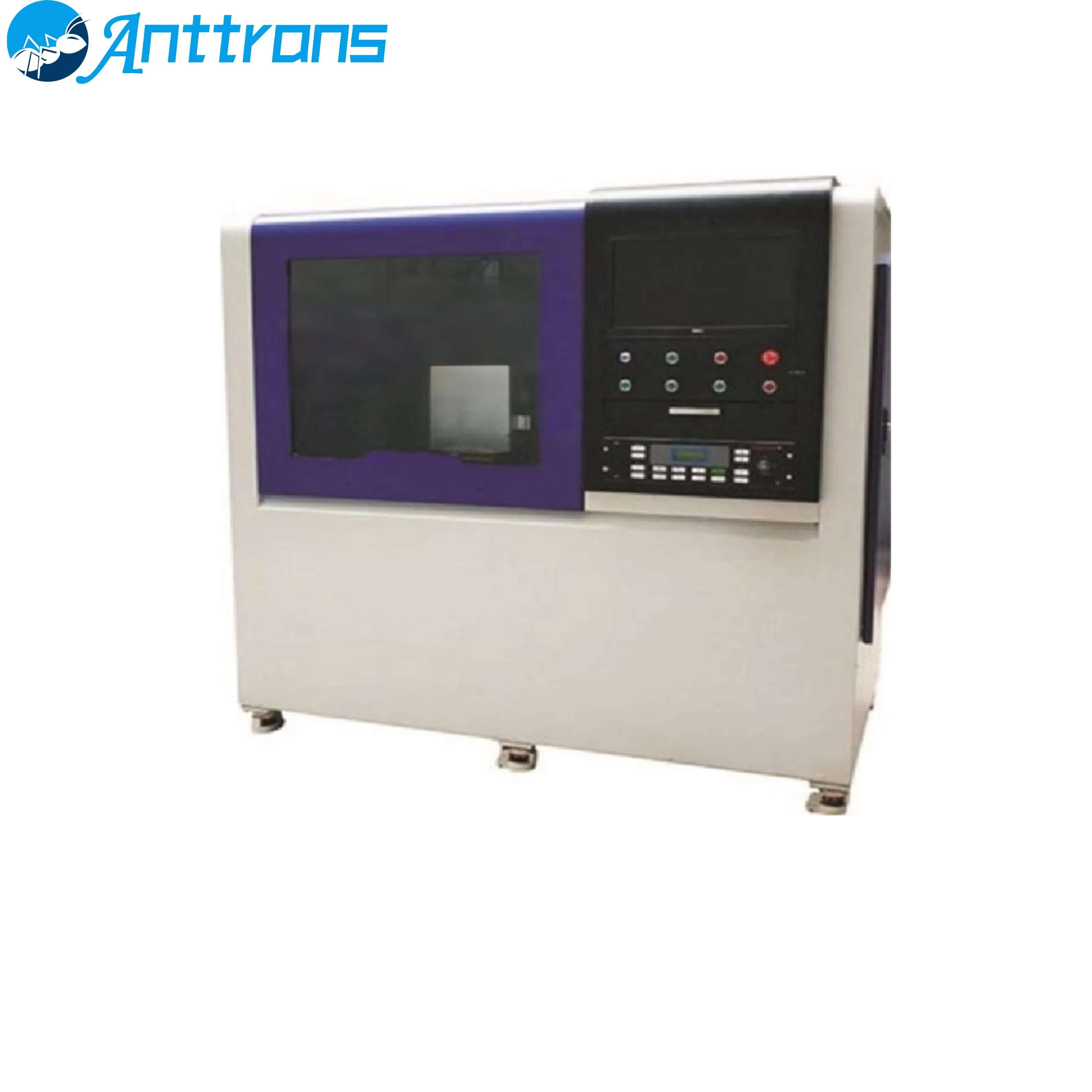

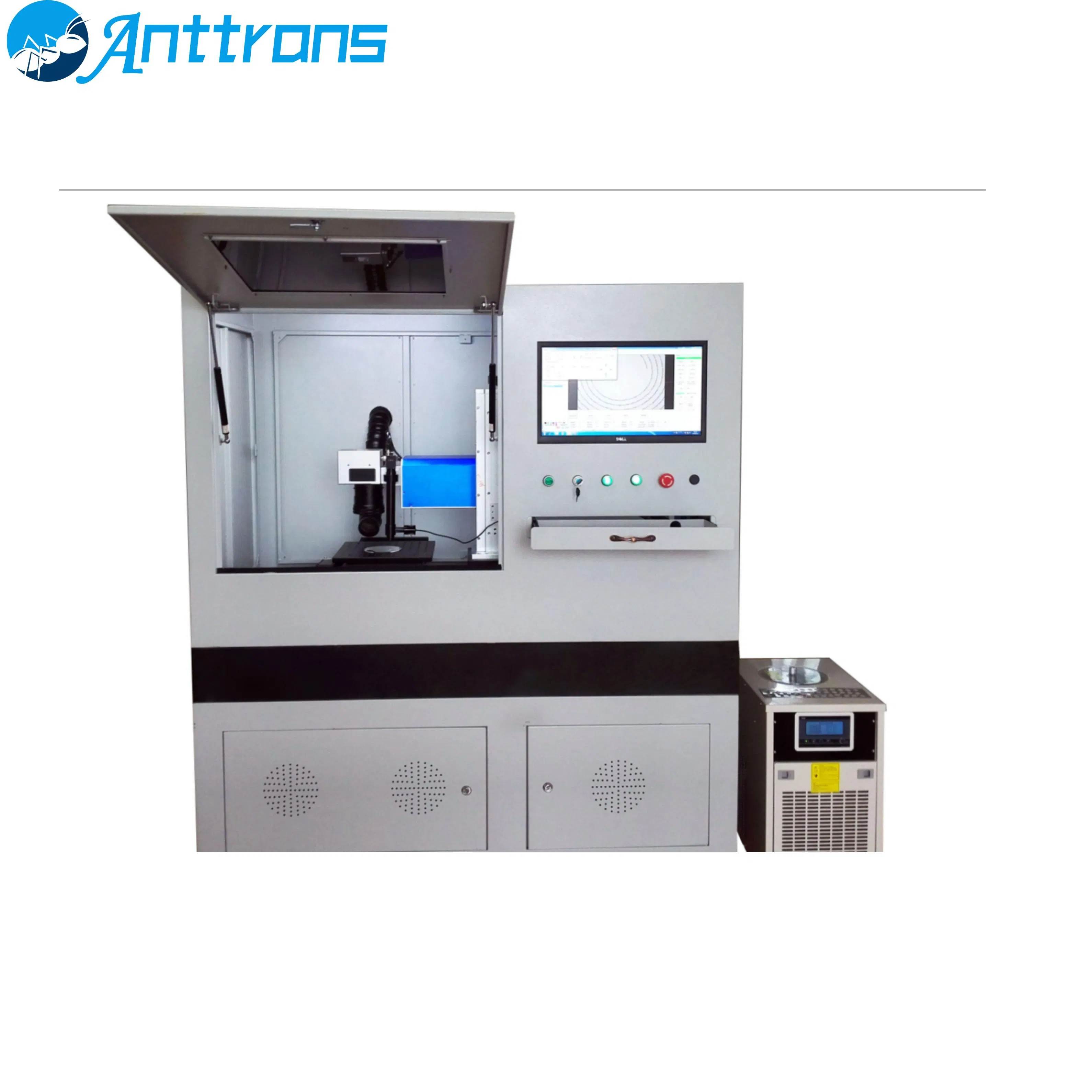

Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System

1 / 5

Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Basic Information

Model NO.

AT-61163

Origin

China

Package Size

150.00cm * 90.00cm * 150.00cm

Gross Weight

2000.000kg

Product Features

High-energy density UV laser with μm-level heat-affected zone and 5μm minimum processing spot size.
High-resolution camera and linear motor-driven platform for sub-micron alignment.
Precision Z-axis focusing system for stable and repeatable processing techniques.
Sub-micron level runout spindle for high-speed and high-surface-finish micro-machining.
Auxiliary W-axis for processing straight and inverted taper holes.
Marble tabletop base to enhance overall long-term system stability and precision.
Capable of processing tapered and straight holes with a depth-to-width ratio > 10:1.

Technical Parameters

Category	Parameter	FM-UVD7 Value
Laser	Wavelength	355nm
Laser	Power	>7W@40 kHz (3~40 W optional)
XY Stage	Travel	300*300mm
XY Stage	Repeatability	≤±1μm
XY Stage	Positioning Accuracy	≤±3μm
Z-axis	Travel	200mm
W-axis	Angular Range	±10°
Spindle	Circular Runout	<1μm
Processing Capability	Minimum Spot Size	5μm (10μm optional)
Processing Capability	Hole Accuracy	±3μm (diameter <0.5mm)
Dimensions	Machine Size	1200 * 1600 * 1900mm
Weight	Total Weight	1200Kg

Product Applications

Automotive Industry

GDI and Diesel Fuel Injectors (30-200μm), Urea Injectors for National VI emission standards.

Aerospace

Aircraft Engine Fuel Nozzles, Rocket Propellant Nozzles (100-500μm), and UAV Atomization Nozzles.

Medical Equipment

Nebulizer Nozzles (10-50μm), Microfluidic Chips, and Interventional Device drug delivery nozzles.

Electronics & Precision Instruments

Inkjet Printhead Nozzles (10-30μm), Sensor Nozzles for fluid control, and Optical Instrument systems.

Service Scope

Expertise in technical services, technology development, and consulting. Specializing in specialized equipment for semiconductor devices, CNC machine tools, optical instruments, functional glass, and new optical materials. Providing comprehensive solutions for metal cutting, welding equipment, and electronic specialized materials.
