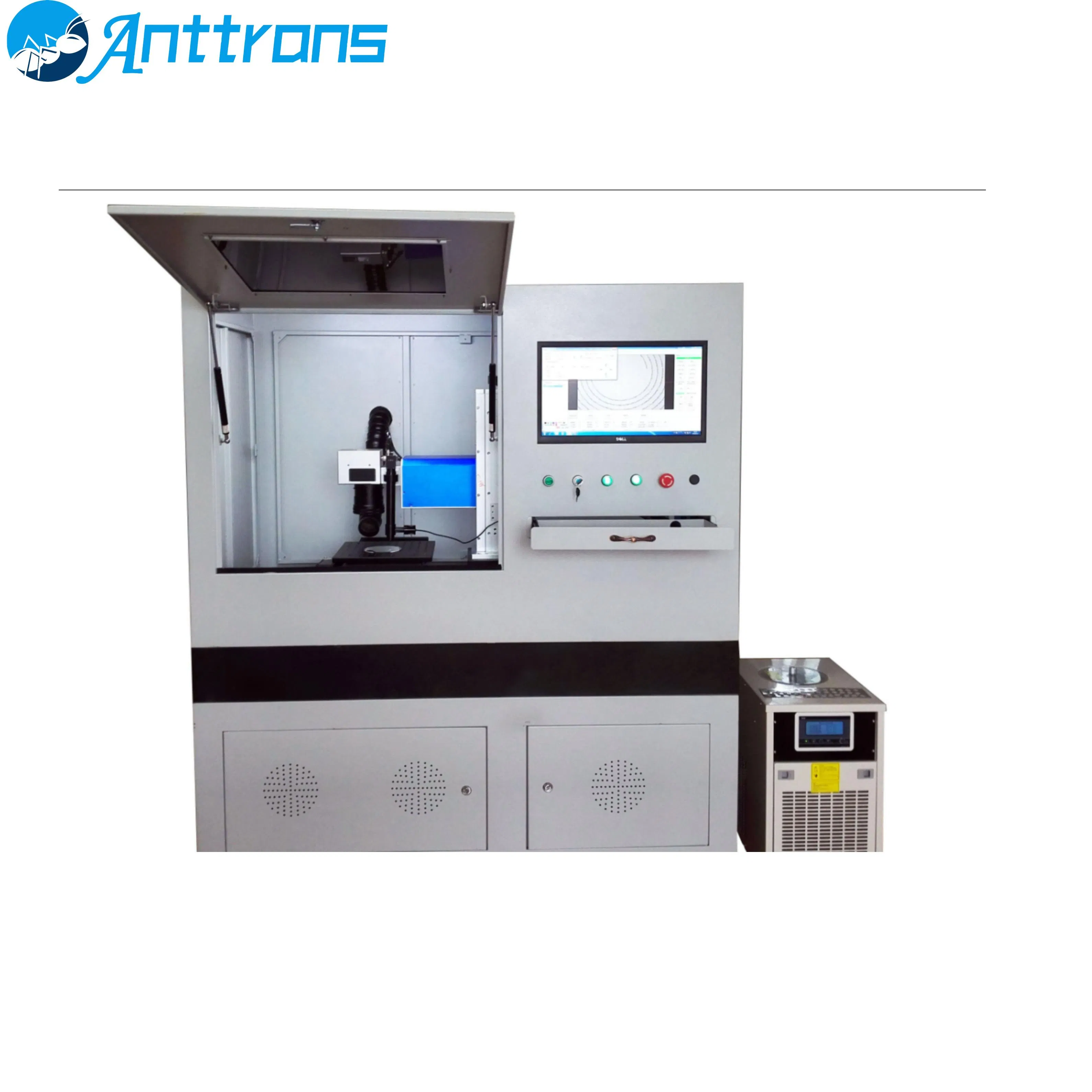

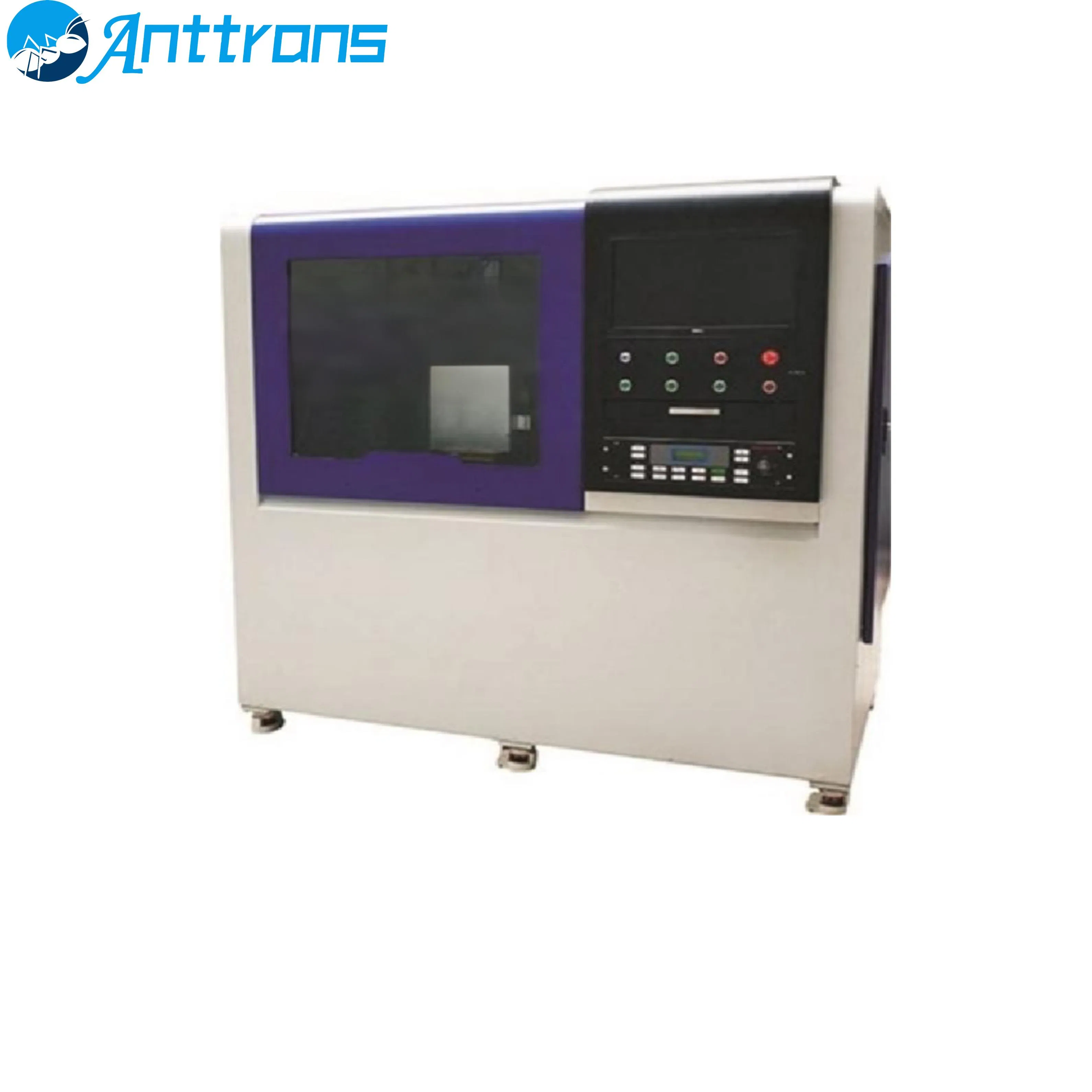

Micro Nozzle Laser Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO. AT-61163

Origin China

Package Size 150.00cm * 90.00cm * 150.00cm

Gross Weight 2000.000kg

🚀

Product Features

High-energy density UV laser with μm-level heat-affected zone and 5μm minimum spot size.
High-resolution camera and linear motor-driven platform for sub-micron alignment.
Precision Z-axis focusing ensures stable and repeatable processing.
Sub-micron level runout spindle for high-speed and high-surface-finish micro-machining.
Auxiliary W-axis supports processing of straight and inverted taper holes.
Marble tabletop design enhances overall mechanical stability and long-term precision.
Capable of processing holes with a depth-to-width ratio > 10:1.

📊

Technical Parameters

Category	Parameter	FM-UVD7 Spec
Laser	Wavelength	355nm
Laser	Power	>7W@40 kHz (3~40 W optional)
XY Stage	Travel	300*300mm
XY Stage	Repeatability	≤±1μm
XY Stage	Accuracy	≤±3μm
Z-axis	Travel	200mm
W-axis	Angular Range	±10°
CCD System	Camera	5-megapixel
Spindle	Circular Runout	<1μm
Processing	Minimum Spot	5μm (10μm optional)
Processing	Hole Accuracy	±3μm (diameter <0.5mm)
Materials	Type	Glass, organics, metals, ceramics, etc.
Consumption	Power	≤2000W
Dimensions	Size	120016001900mm

🛠️

Industry Applications

Automotive

GDI and Diesel Fuel Injectors (30-200μm orifices), Urea Injectors for National VI emission standards.

Aerospace

Engine Fuel Nozzles, Rocket Propellant Nozzles, and UAV Atomization Nozzles for high-pressure precision.

Medical

Nebulizer Nozzles (10-50μm), Microfluidic Chips, and Interventional Devices for drug delivery.

Electronics

Inkjet Printhead Nozzles, Sensor Nozzles for fluid control, and Optical Instrument components.

📷

Detailed Photos

❓

Frequently Asked Questions

Q1: What is the minimum processing hole diameter of this system? A: The system can achieve a minimum processing hole diameter of 5μm.

Q2: Which materials can be processed by the UV laser system? A: It is highly versatile and can process glass, organics, various metals, and ceramics.

Q3: Does the system support tapered hole processing? A: Yes, with the auxiliary W-axis, the system can process both straight holes and inverted taper holes.

Q4: What is the positioning accuracy of the XY stage? A: The XY stage provides a positioning accuracy of ≤±3μm and repeatability of ≤±1μm.

Q5: How does the system ensure stability during high-speed machining? A: The system utilizes a heavy marble tabletop and a sub-micron level runout spindle to ensure maximum stability and surface finish.

Q6: What cooling method does the laser use? A: The system is equipped with a professional water-cooled cooling system.
