Basic Info.
Applicable Material
Plastic
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Marking Method
Scanning Marking
Model
Ls-Sjuv-5/10/20/25W
Packaging & Delivery

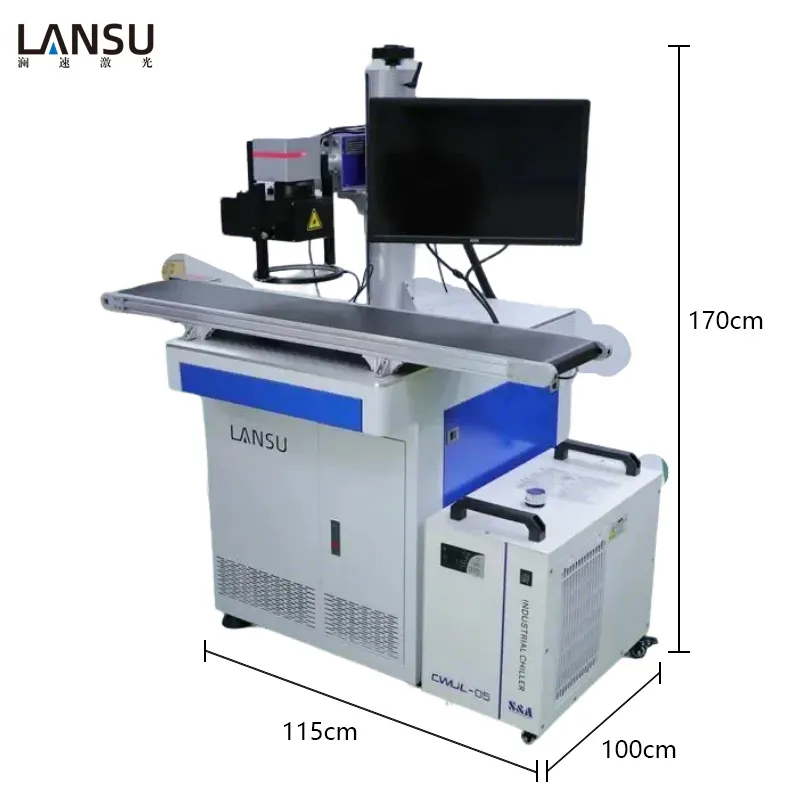

Package Size
115.00cm * 105.00cm * 155.00cm
Transport Package
Wooden Box

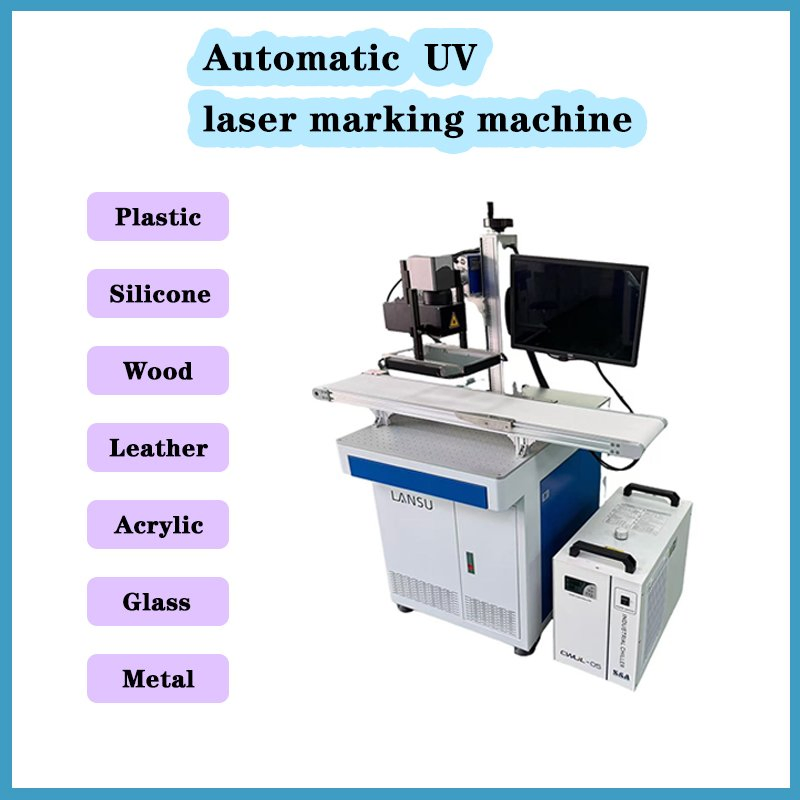

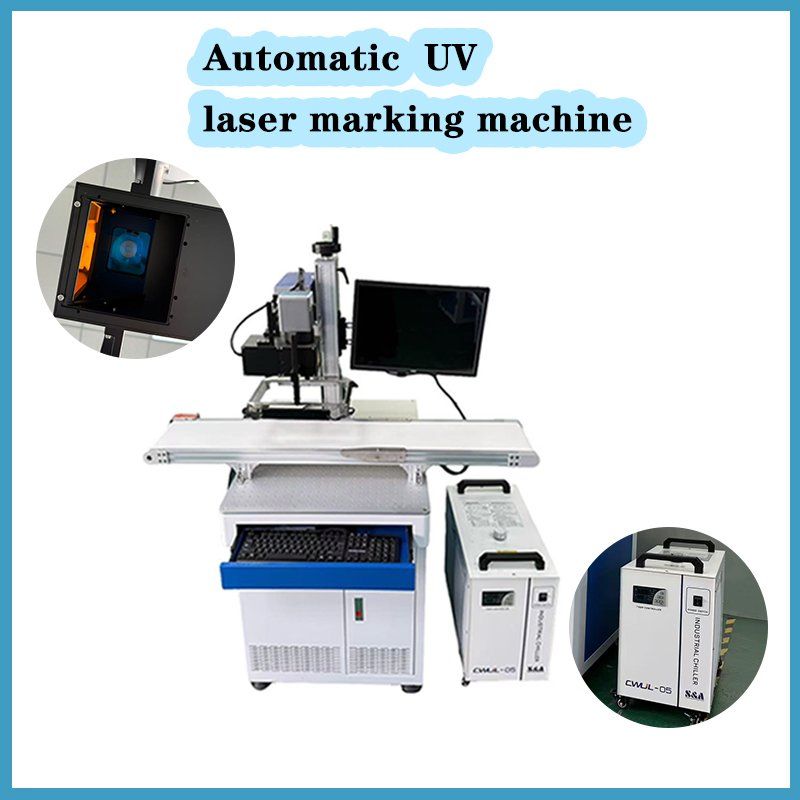

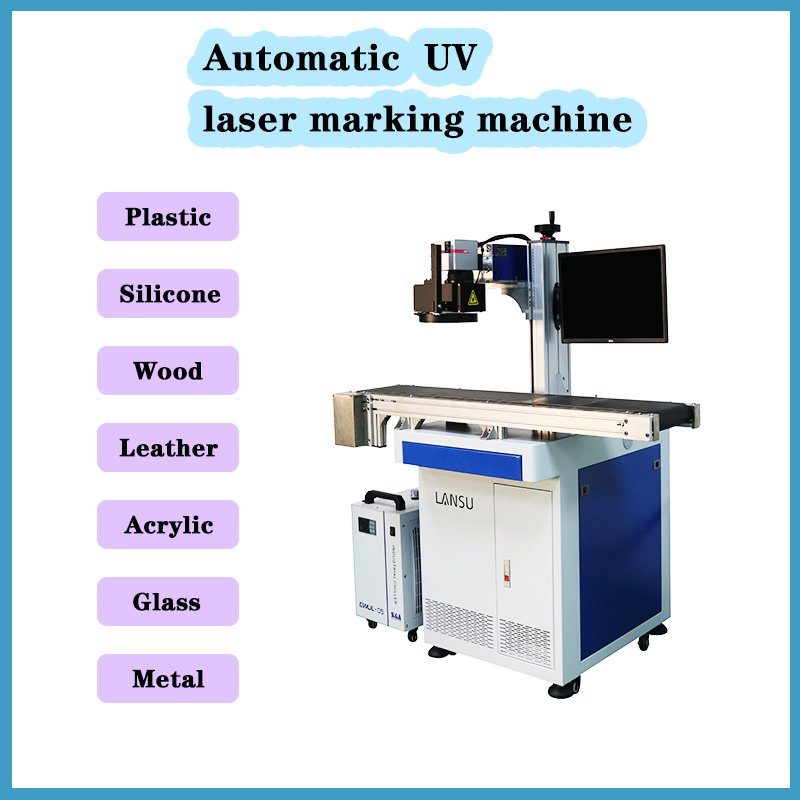

Product Description
Product Features:
✔
Improve production efficiency: Rapid positioning and marking of multiple products simultaneously. Supports automatic assembly line feeding and visual positioning.
✔

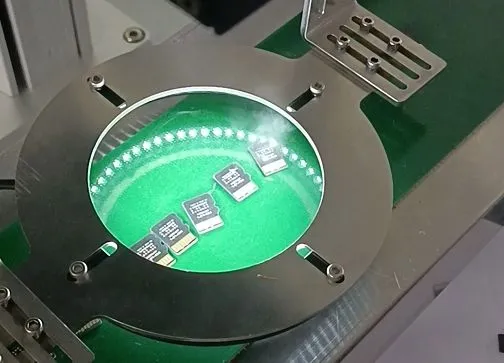

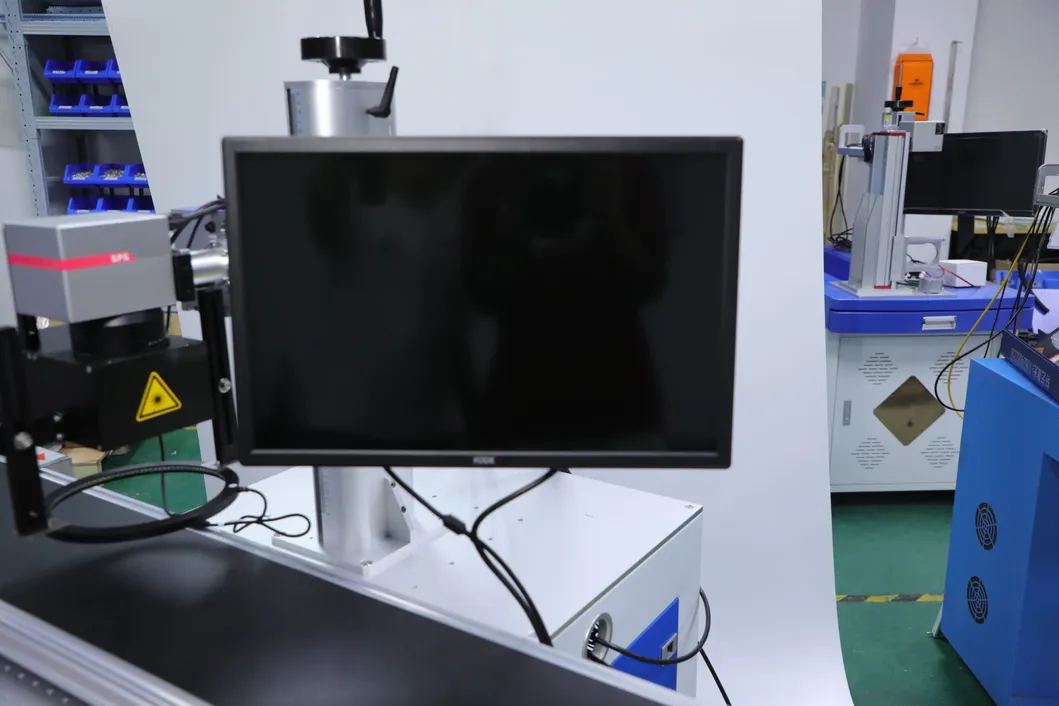

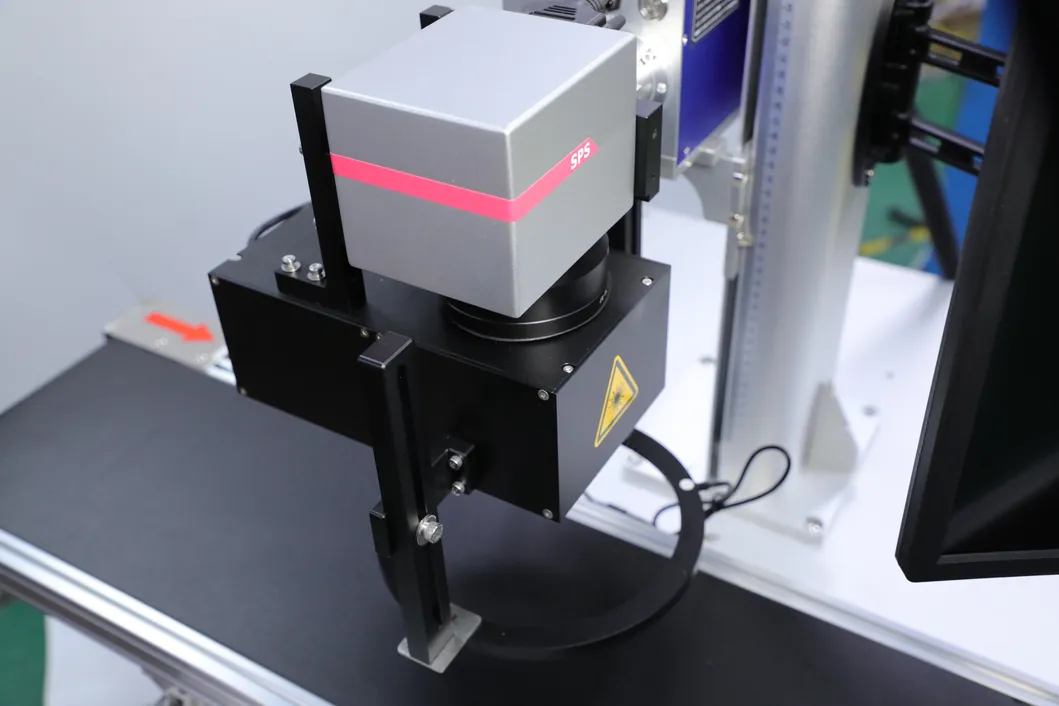

High precision: CCD vision integration ensures accurate marking at any angle, position, or quantity.
✔
Automation ready: Compatible with vibration plates, assembly lines, and XY platforms for unmanned production.
✔
High flexibility: Easily adjust marking content (QR codes, text, patterns) via software without mold changes.
Technical Parameters
| Model |
LS-SJUV-5/10/20/25W |
| Laser Power |
5/10/20/25W |
| Marking Area |
150mm×150mm (Optional) |
| Marking Speed |
≤7000mm/s |
| Minimum Linewidth |
0.01mm |
| Minimum Character |
0.05mm |
| Repeatability |
±0.01mm |
| Power Supply |
AC220V/50Hz |
| Output |
4000 ~ 10000 pcs/h |
| Capture Time |
≤0.2s |
| Cooling Mode |
Water Cooling |
Applications

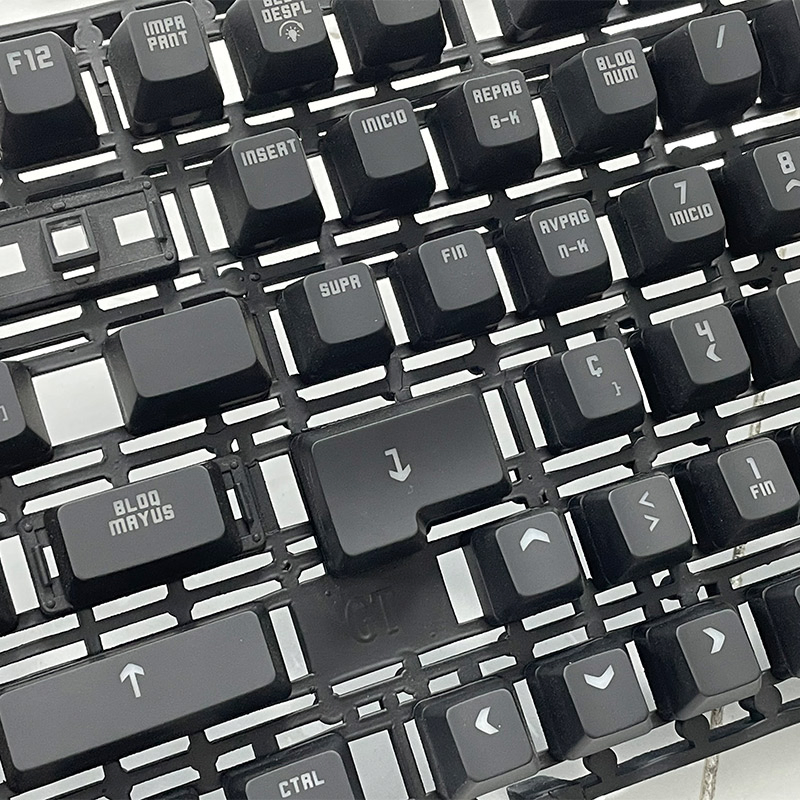

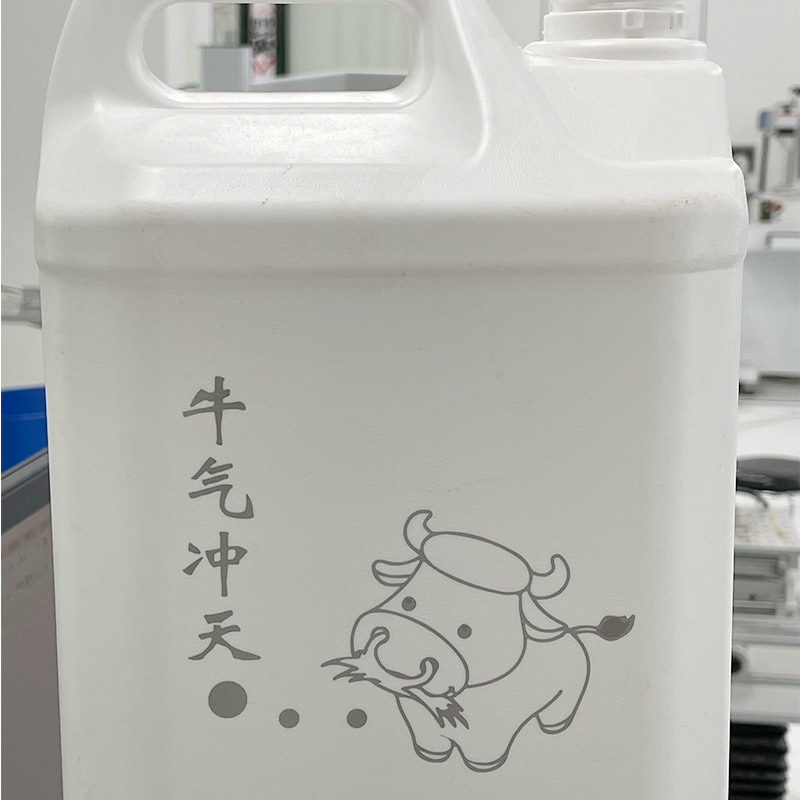

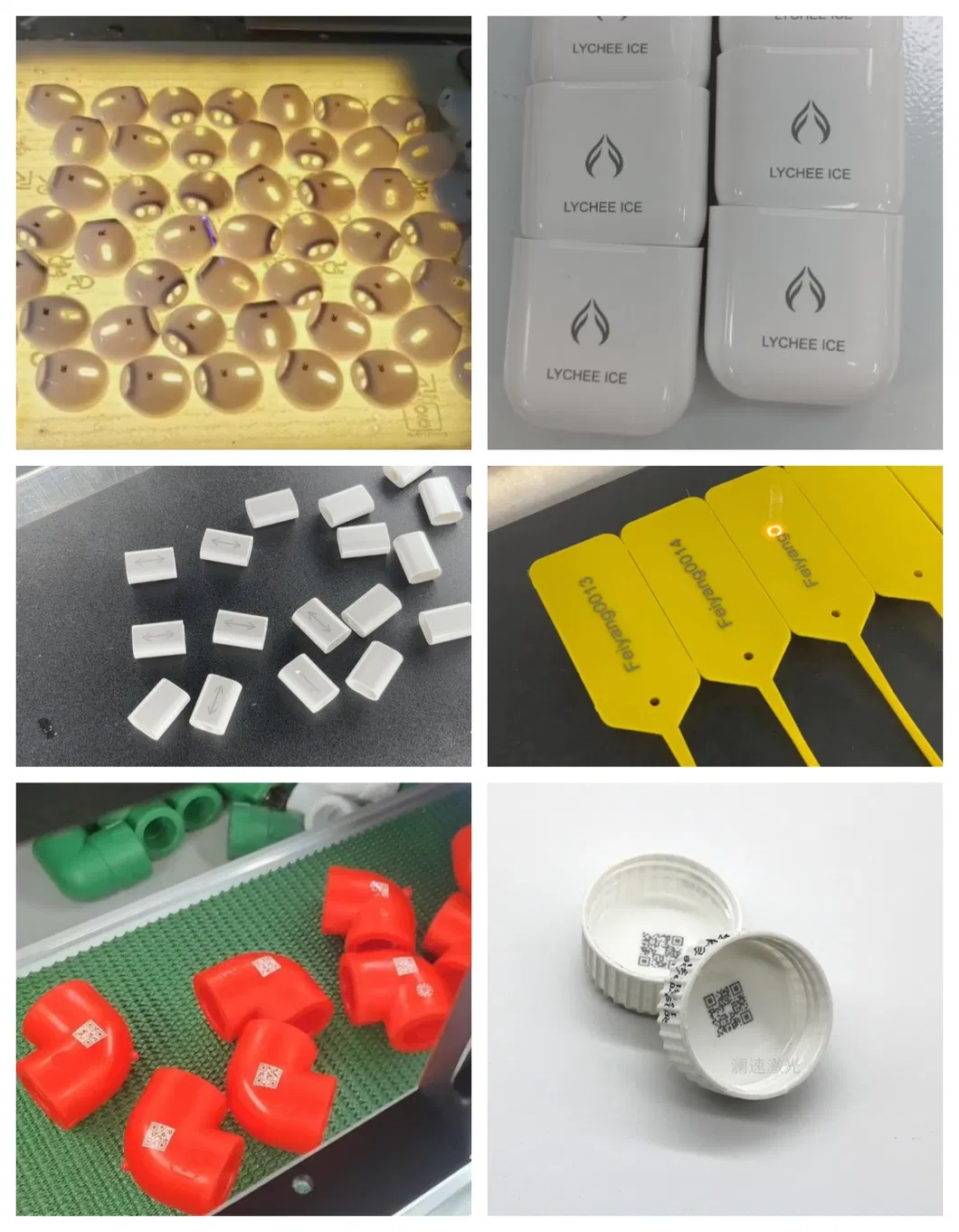

Applicable to small or extremely small items with high workload requirements. Ideal for ICs, small screws, resistors, and various plastics including ABS, PP, PC, PA, TPU, and more.
Gallery
Frequently Asked Questions
What materials can this UV laser mark?
This system is ideal for marking a wide range of plastics such as ABS, PP, PC, PA, TPU, as well as electronic components like ICs, resistors, and small metal parts like screws.
How does the CCD vision system benefit production?
The CCD vision system allows for automatic positioning and marking at any angle or position. It captures the workpiece in less than 0.2s, significantly reducing manual placement errors and increasing efficiency.
What is the lifespan and stability of the equipment?
The laser machines are designed for continuous 24-hour operation with a lifespan of up to 100,000 hours, utilizing high-quality components for maximum stability.
Can this machine be integrated into an automated production line?
Yes, it is designed for automation. It can cooperate with vibration plates, assembly lines, and XY platforms to achieve fully unmanned production.
What cooling system is required for the UV laser?
This system uses a high-efficiency water cooling system to ensure stable operation and maintain the longevity of the UV laser source.
Is the software easy to use for changing marking designs?
Yes, the computer-controlled system allows you to quickly adjust text, QR codes, and patterns without any hardware or mold changes, offering great flexibility for different batches.
