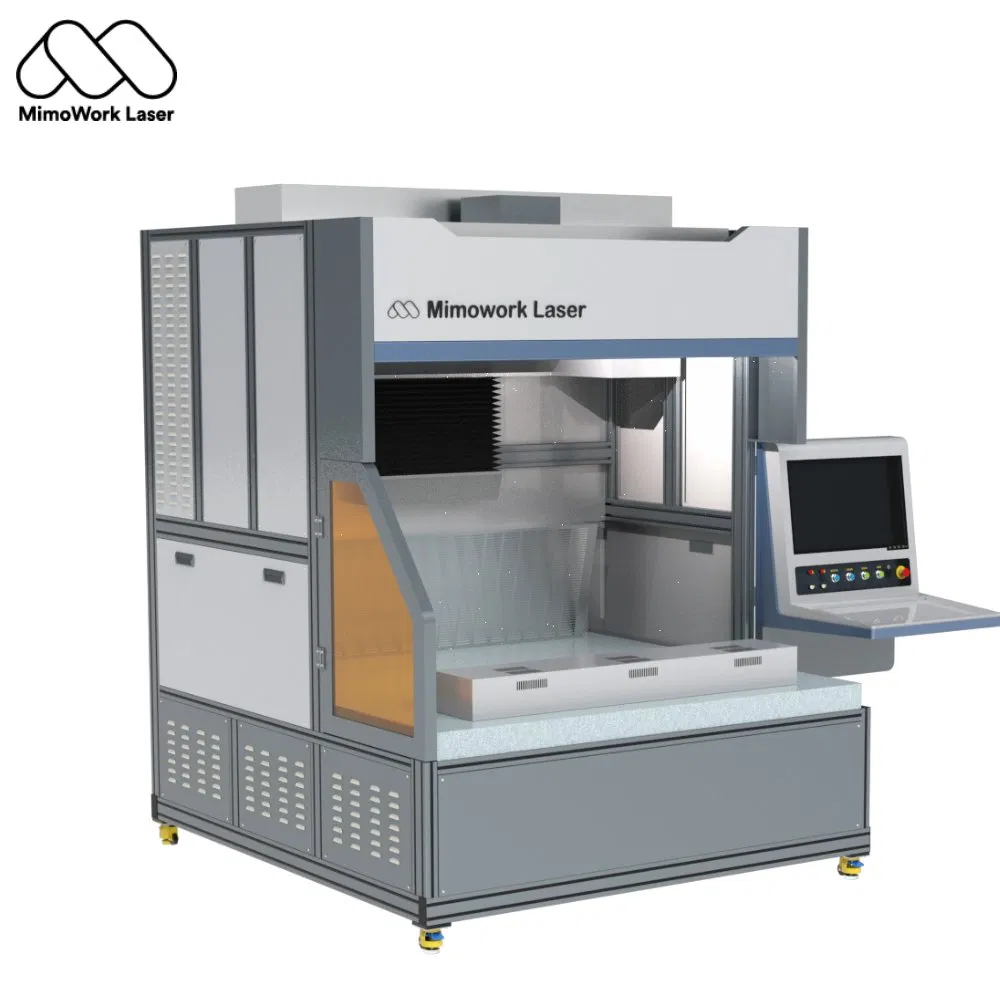

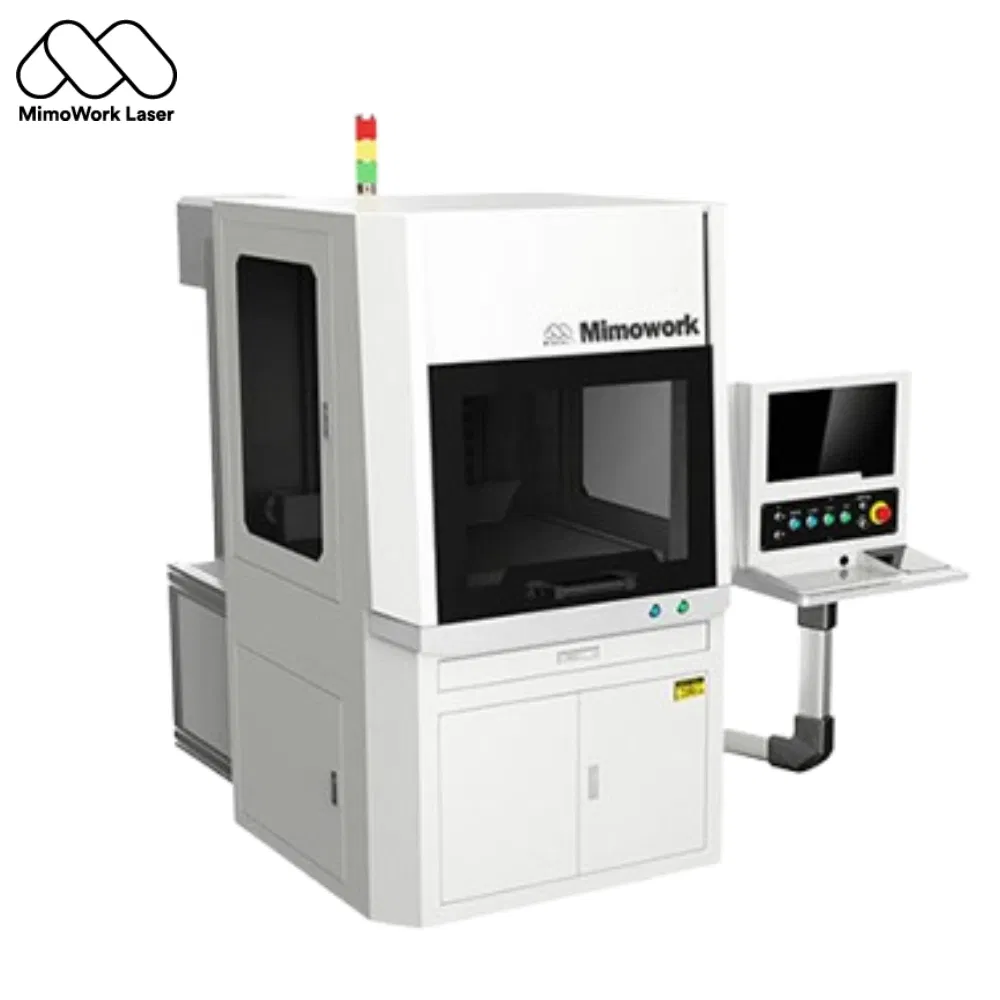

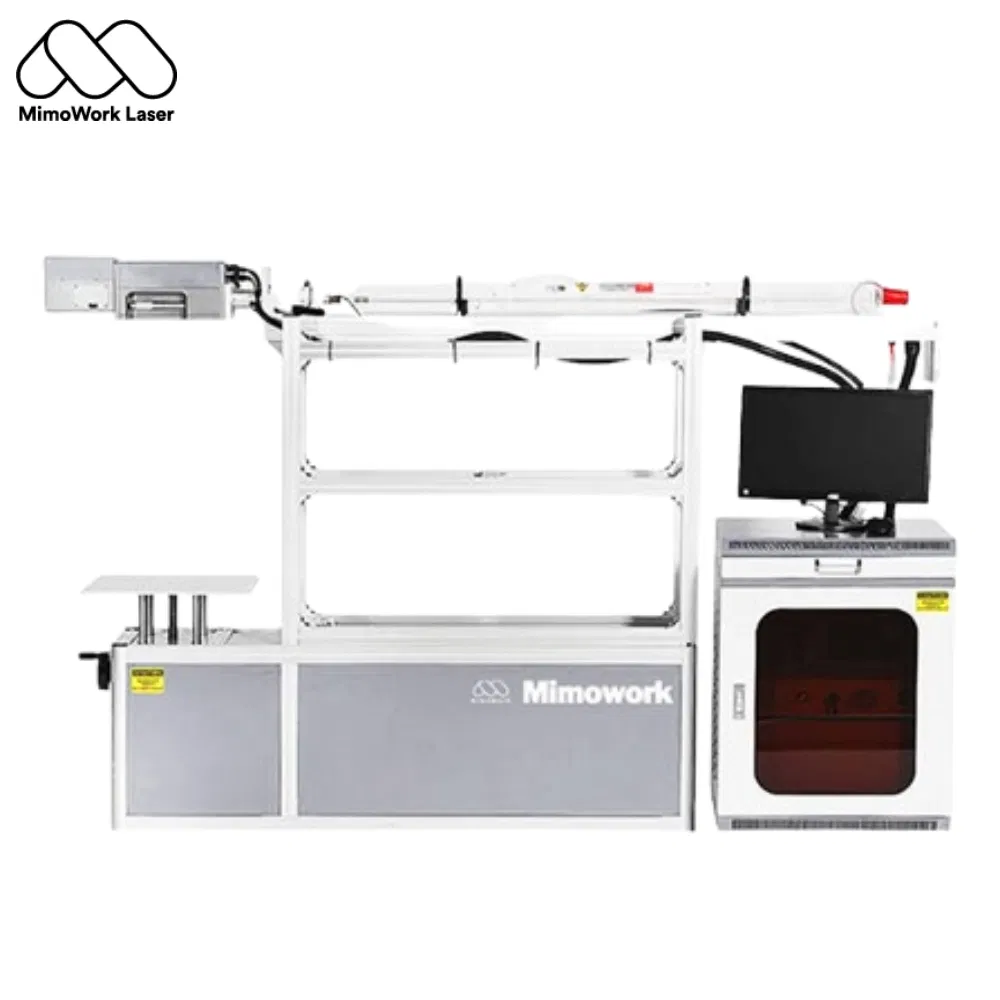

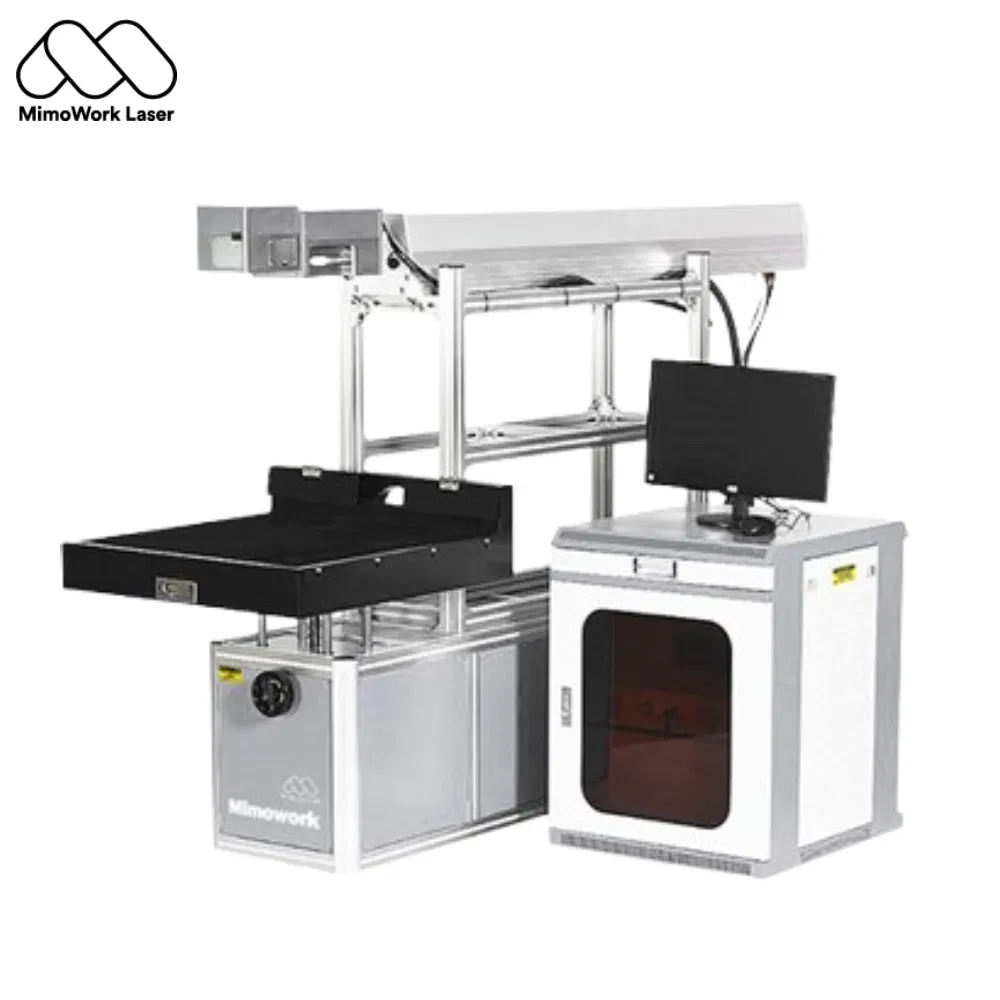

A CO2 galvo laser marking machine is a high-speed, precision laser system designed for marking, engraving, and cutting various non-metallic materials and coated metals. The "galvo" system uses galvanometer mirrors to direct the laser beam with exceptional speed and accuracy, making it ideal for intricate designs and high-volume production. The 3D dynamic focusing system is particularly useful for applications where the material surface is not perfectly flat or when you need to mark complex 3D objects.
Suitable for various materials and sizes, this system has different working sizes available ranging from 400mm * 400mm to 800mm * 800mm. For specific material sizes and marking requirements, custom configurations are available.
| Main Machine Models | |
|---|---|
| Model Type | G-40, G-40E, G-60, G-60E, G-80, G-80E, G-160 |
| Working Table Size | 400mm*400mm, 600mm*600mm, 800mm*800mm, 1600mm*Infinity, etc. |
| Laser Power | 100W, 150W, 180W, 250W, 350W, 500W, 600W, 800W, 1000W |
| Machine Specifications | |
|---|---|
| Laser Source | CO2 RF Laser Tube, CO2 Glass Laser Tube |
| Max Marking Speed | 10,000mm/s |
| Max Cutting Speed | 1000mm/s |
| Repetition Precision | ±0.01mm |
| Focusing | 3-axis dynamic focusing |
| Cooling Mode | Water Cooling and Protection System |
| Standard | CE, ROHS, FDA, ISO-9001 |
Integration of the RF laser tube and the high-speed Galvo scanning system allows for ultra-fast marking speeds, perfect for high-volume production without compromising quality. The high-quality optical components enable extremely precise engraving for fine text and intricate designs.

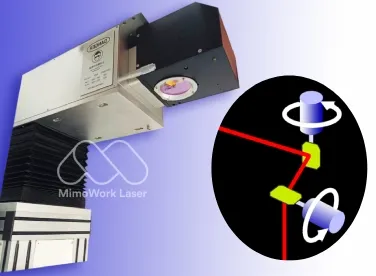

Uses two high-speed motors to control mirrors that direct the laser beam. This allows for much faster movement while maintaining pinpoint precision compared to traditional X-Y systems.

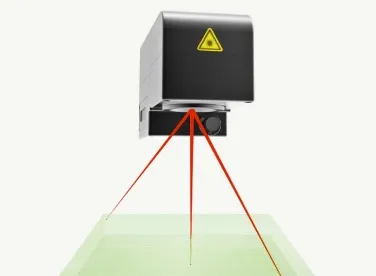

Automatically adjusts the focus in real-time based on material height variations. Perfect for engraving uneven surfaces or non-flat 3D geometries.

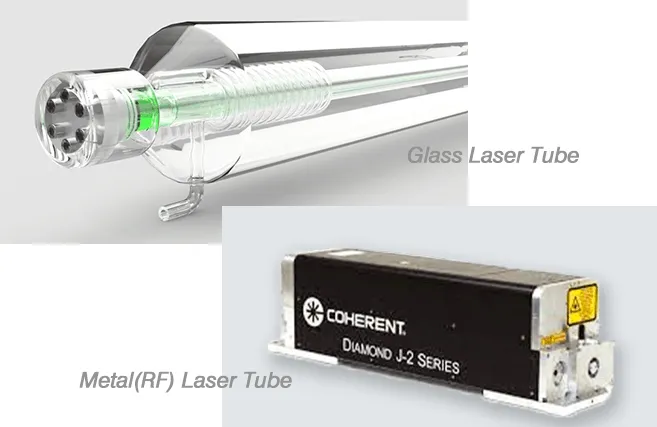

RF tubes offer higher stability, longer lifespan, and are maintenance-free. Glass tubes provide a cost-effective solution for less demanding marking tasks on wood or leather.

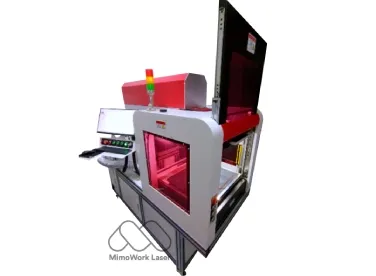

Protects operators from laser hazards and contains fumes/noise, ensuring a safe and comfortable industrial working environment.

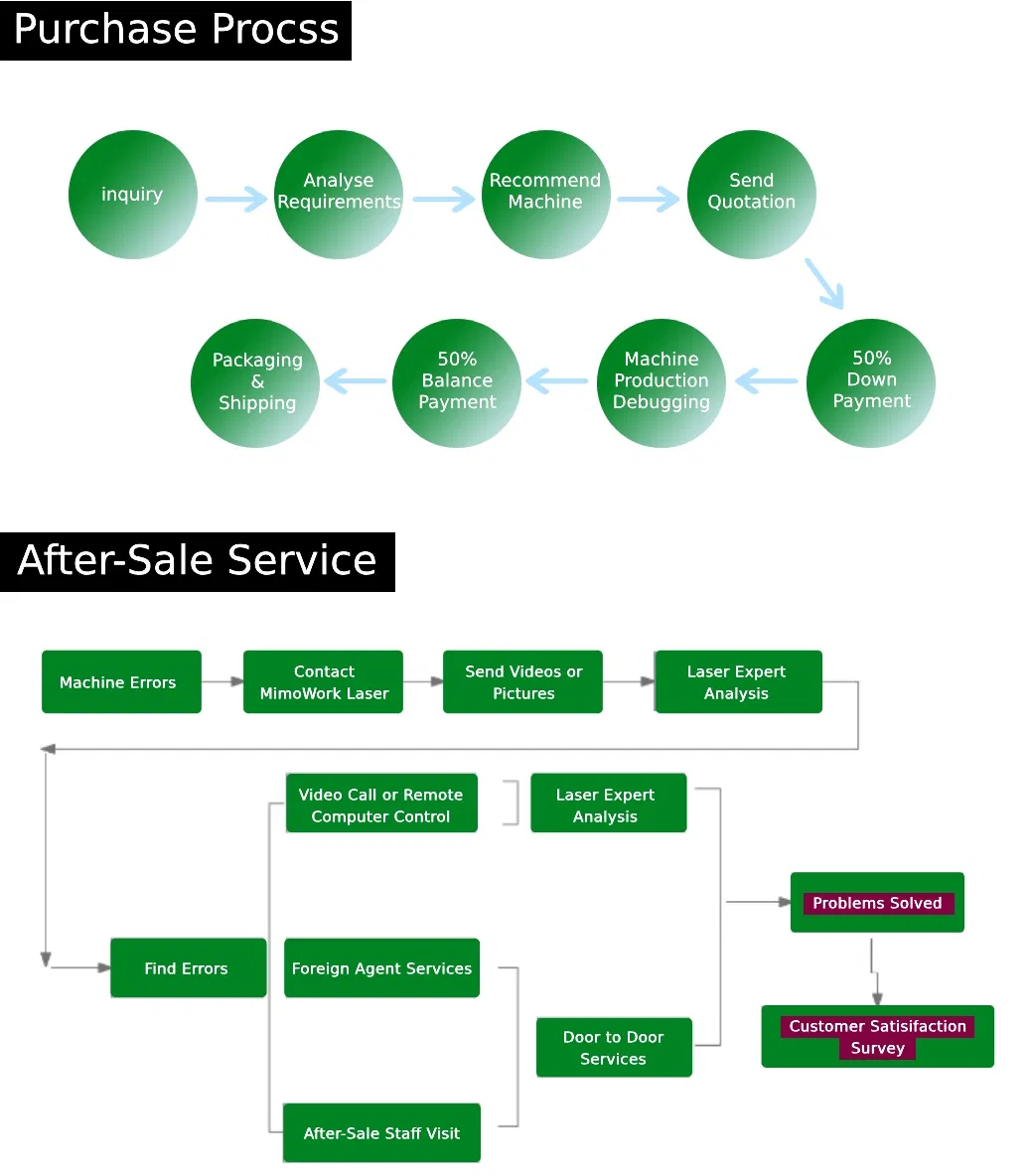

Delivery Period: 15-20 working days after payment.
Warranty: 12 months for the machine (6 months for laser tube).
