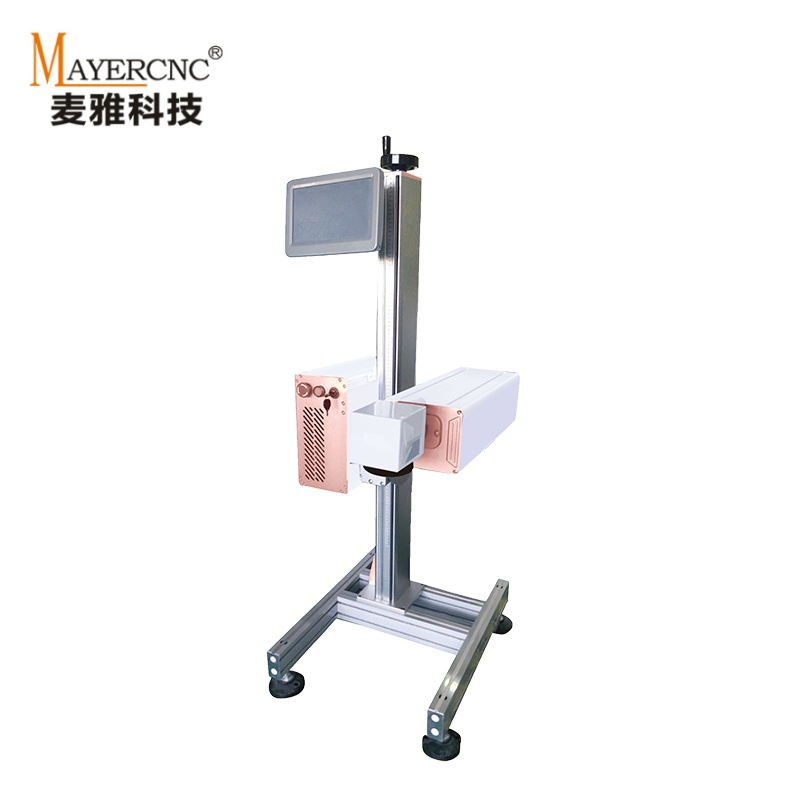

High-Precision Fiber Laser Engraving System for Tough Materials

Customization: Available
After-sales Service: Online
Warranty: 12 Months

Product Description

i

Basic Information

Model NO.
MY-FM-9020
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Scanning Speed
6000-22000mm/S
Scale Range
110*110mm
Operating System
Linux Embedded Touch Controller

Product Description

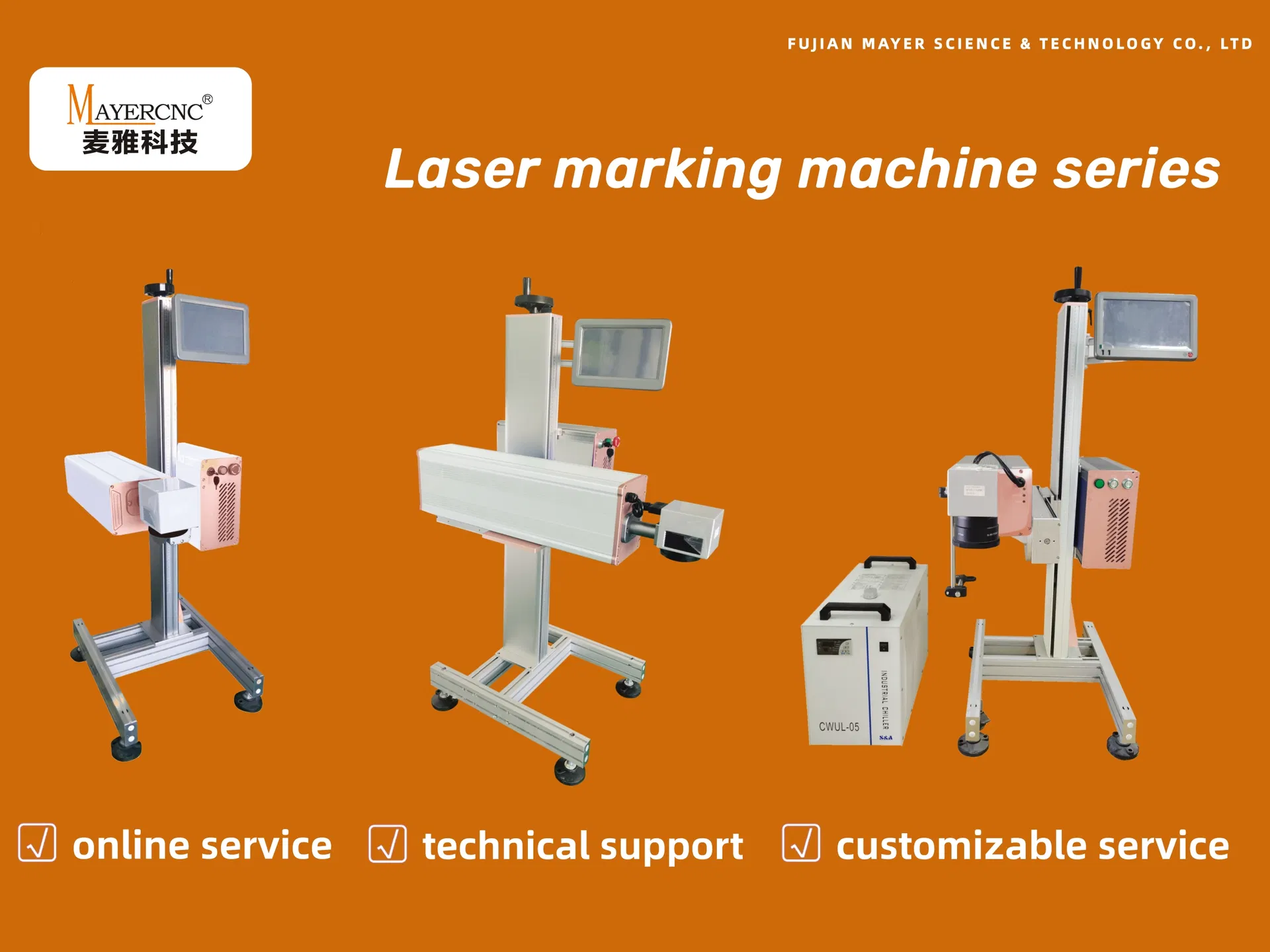

Laser Engraving System

Fiber laser marking machines are renowned for their superior beam quality and exceptional precision, enabling permanent, clear, and fine marking. They boast high electro-optical conversion efficiency, energy conservation, and environmental protection. The whole machine has a long service life, excellent reliability, compact size, high integration, and fast processing speed.

The application range is extremely wide, primarily used for marking various types of metals such as serial numbers on medical devices, jewelry, and automotive parts. They are also effective for plastic and rubber products, electronic chips, integrated circuits, and hardware tools.

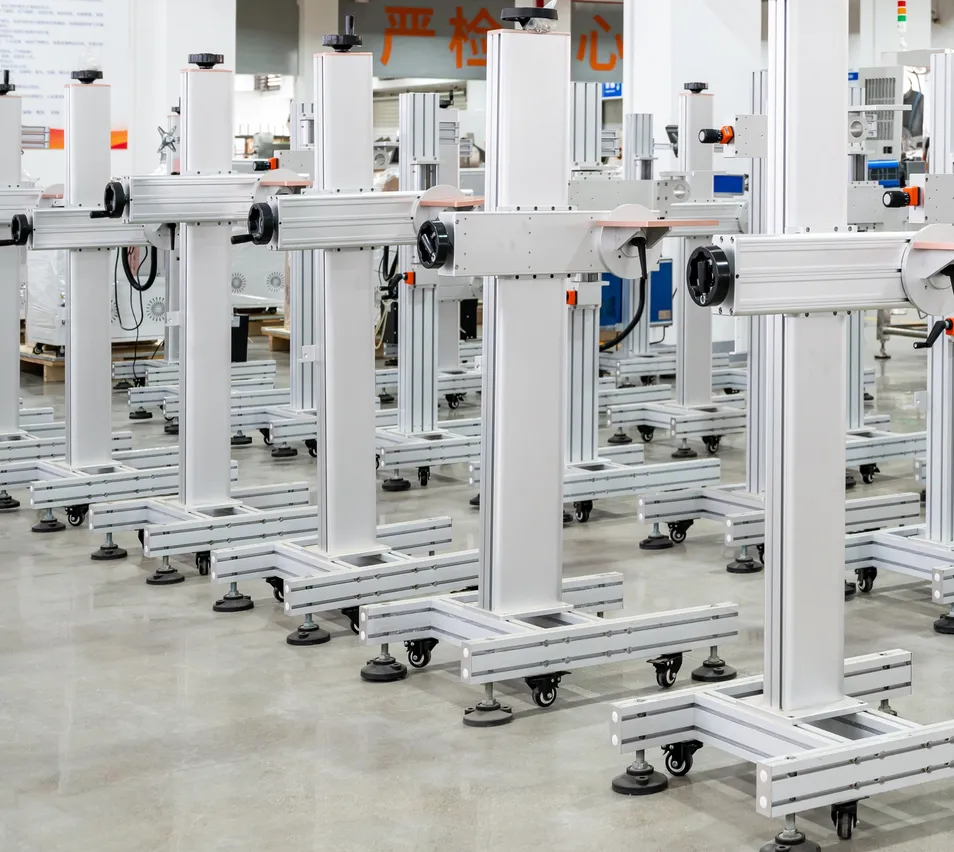

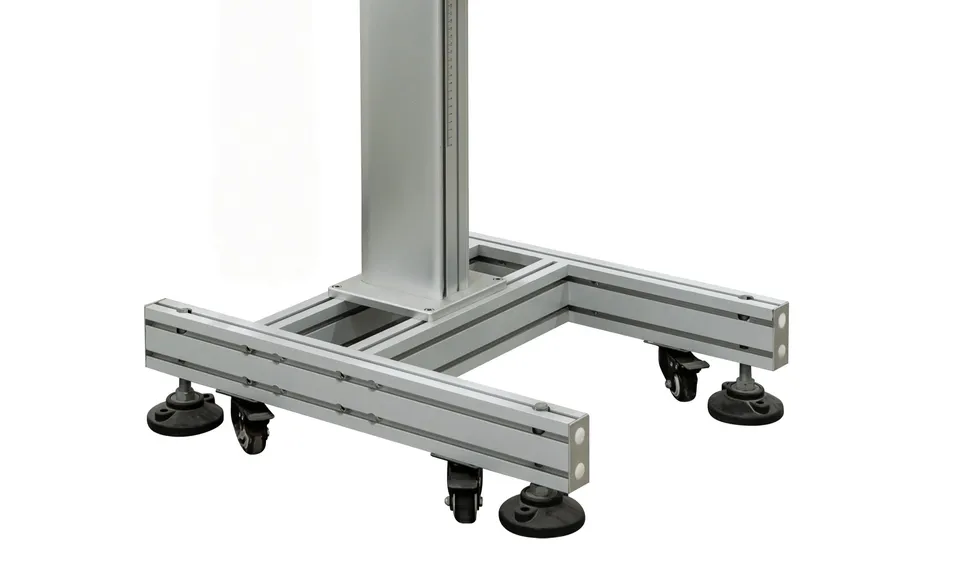

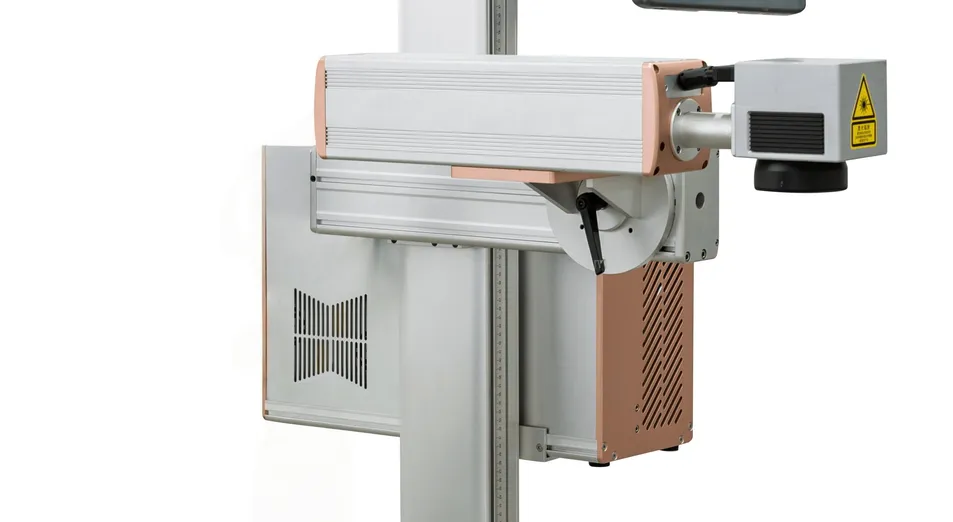

Structure Detail 1 Structure Detail 2 Structure Detail 3

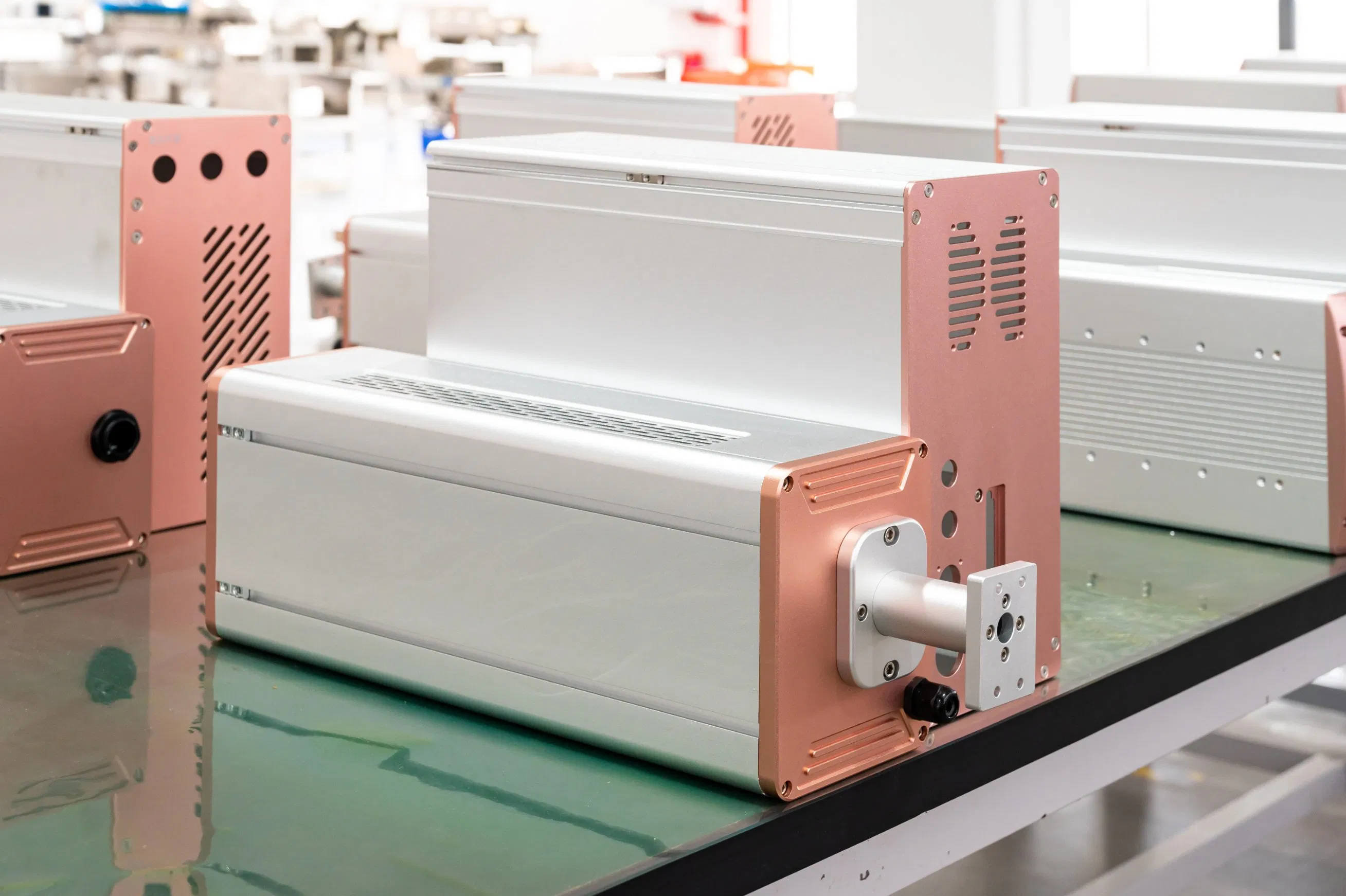

All-aluminum structure: Made of high-strength aluminum alloy and precision CNC machined, providing high rigidity, a low center of gravity, and strong vibration resistance.

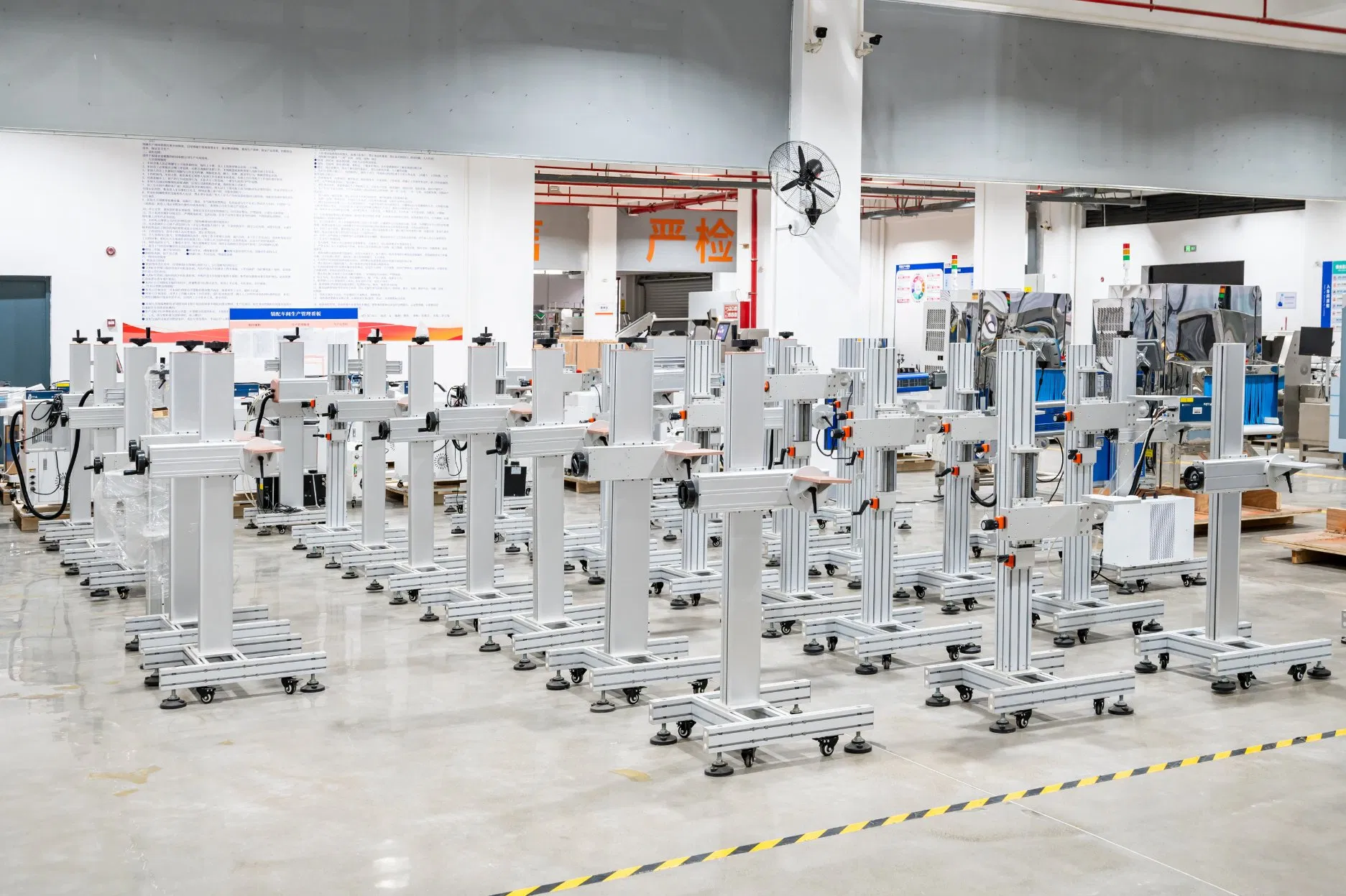

Modular design: The lifting column and lens module feature a modular all-aluminum design for smooth adjustment and precise positioning.

Lightweight & Agile: The body achieves excellent lightweight performance, reducing inertia of moving parts and increasing response speed.

Specifications

Model Number MY-FM-9020 MY-FM-9030 MY-FM-9050 MY-FM-9100
Laser Type Fiber laser
Laser Wavelength 1064nm
Laser Power >20W >30W >50W >100W
Min. Line Width 0.2mm
Min. Character Height 0.1mm
Scanning Speed 6000-22000mm/s
Scale Range Standard: 110*110mm (Adjustable)
Operating System Linux embedded touch controller
Cooling Model Air cooling

Core Capabilities

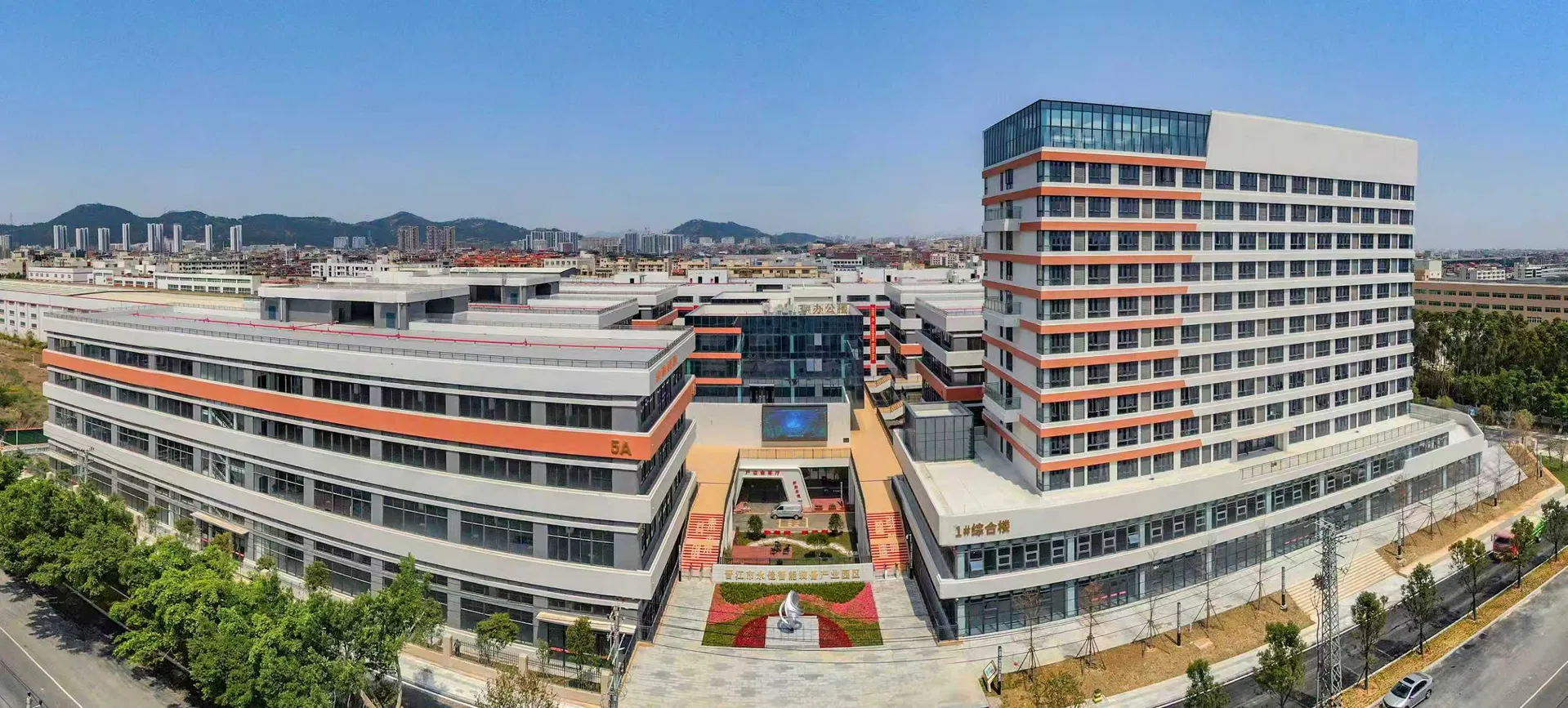

Factory Overview

Our expertise lies in the research, development, and production of precision inspection and marking equipment. As a high-tech enterprise, we integrate R&D and production to serve industries such as food, hygiene products, textiles, and pharmaceuticals. Our products detect metal impurities and provide quantitative testing, weight sorting, and permanent marking solutions.

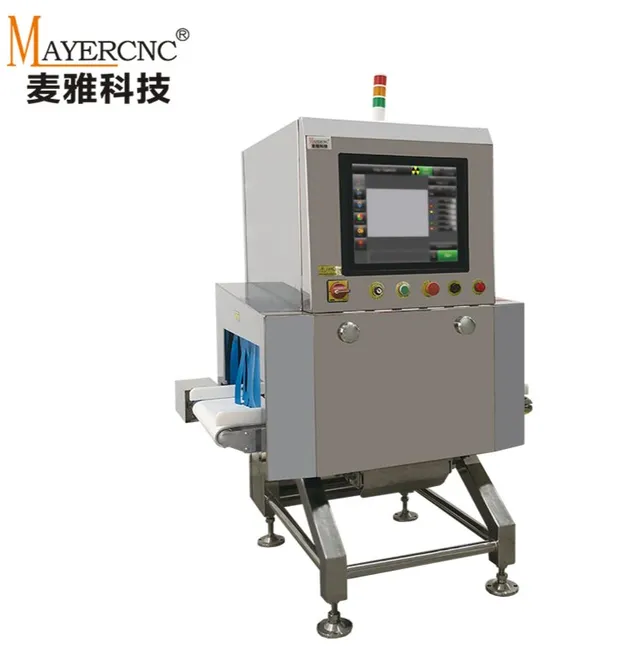

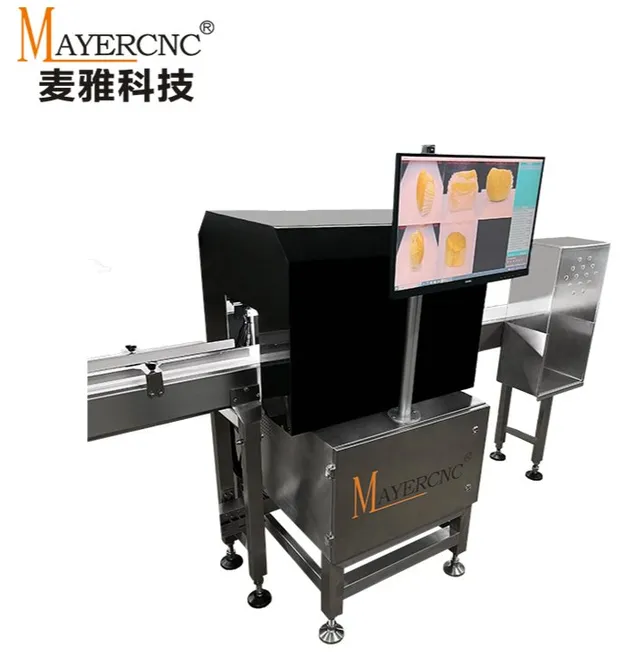

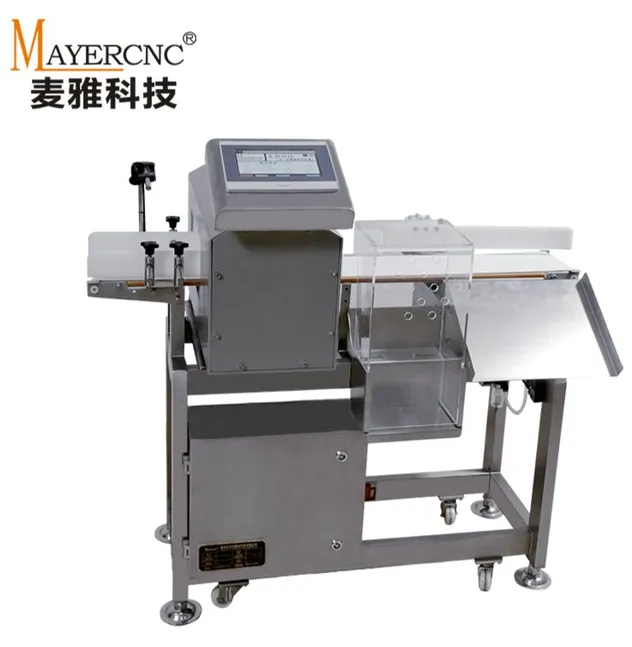

Metal Detector X-ray System Visual Inspection

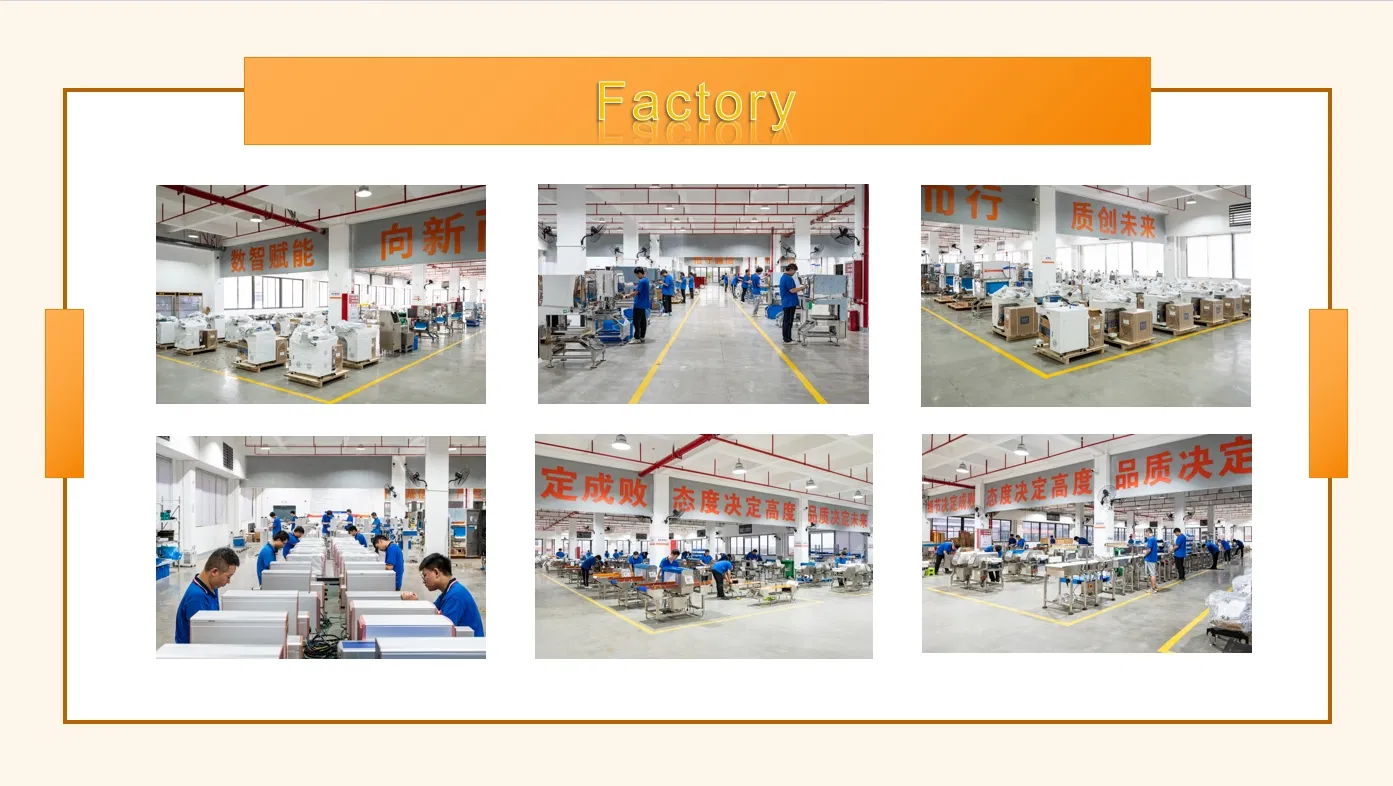

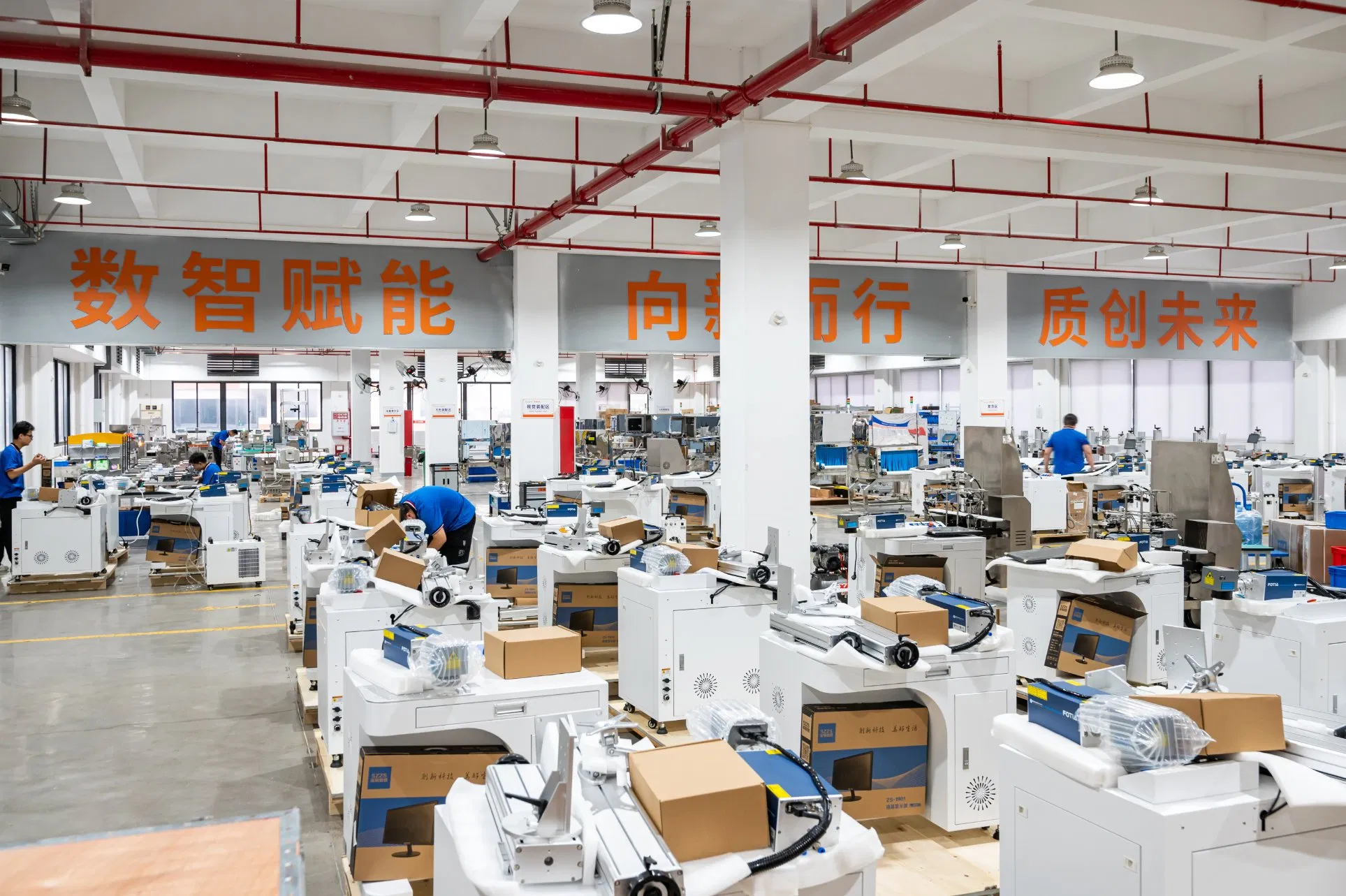

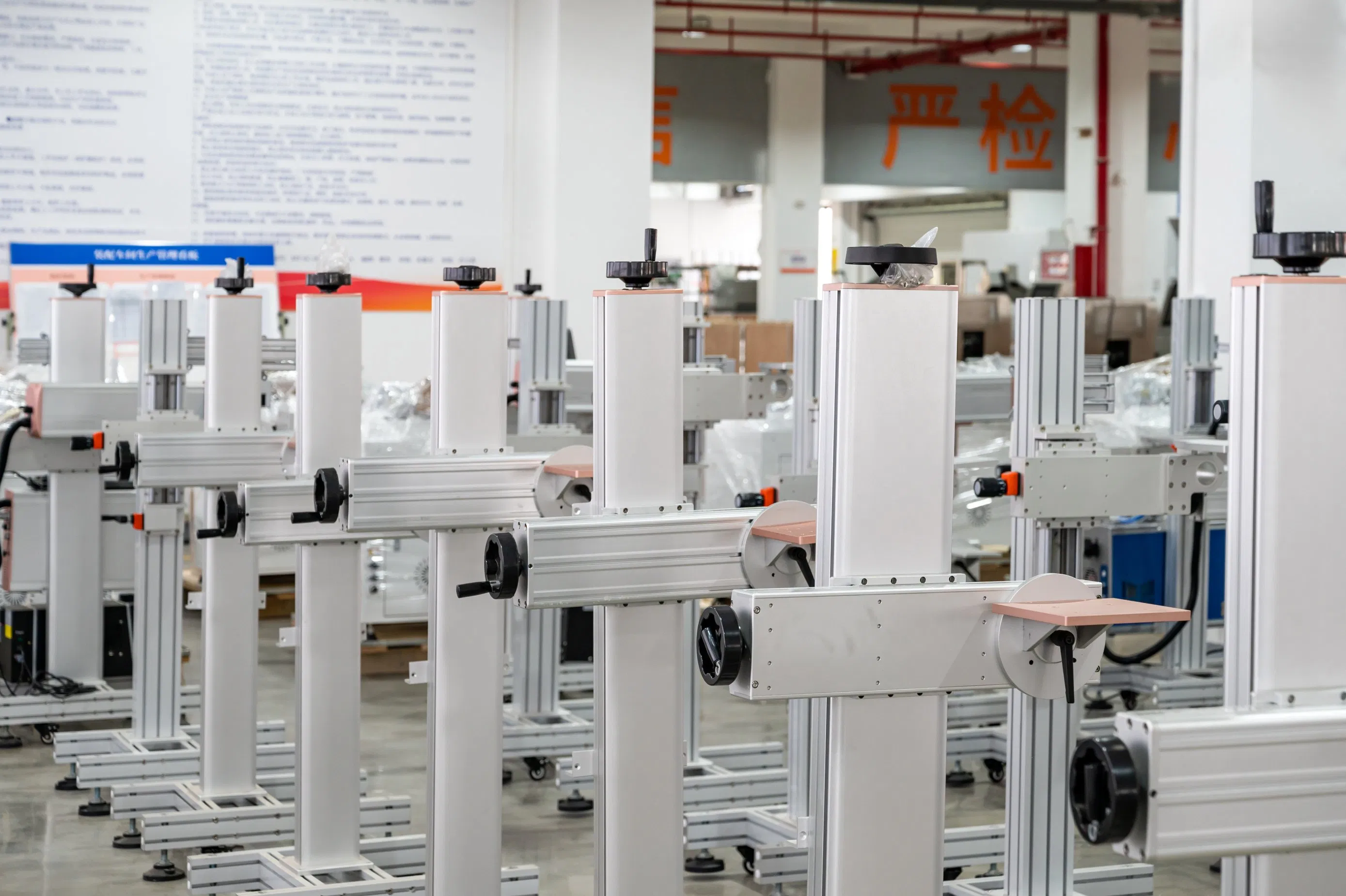

Workshop 1 Workshop 2 Workshop 3
?

Frequently Asked Questions

What are the main applications for this laser marking machine?
It is primarily used for high-precision marking on various metals (medical devices, automotive parts, jewelry) and certain plastic or rubber products.
Do you support product customization?
Yes, all of our products can be customized according to specific customer requirements and material characteristics.
What is the cooling system for the fiber laser?
The system utilizes efficient air cooling, which is compact and requires minimal maintenance.
How long is the standard delivery time?
Delivery typically takes about 20 business days after the receipt of the deposit.
What kind of after-sales technical support do you provide?
We provide remote technical support for installation and operation training via online communication and remote assistance tools.
What is the warranty period for the equipment?
All machines come with a standard one-year warranty period.
