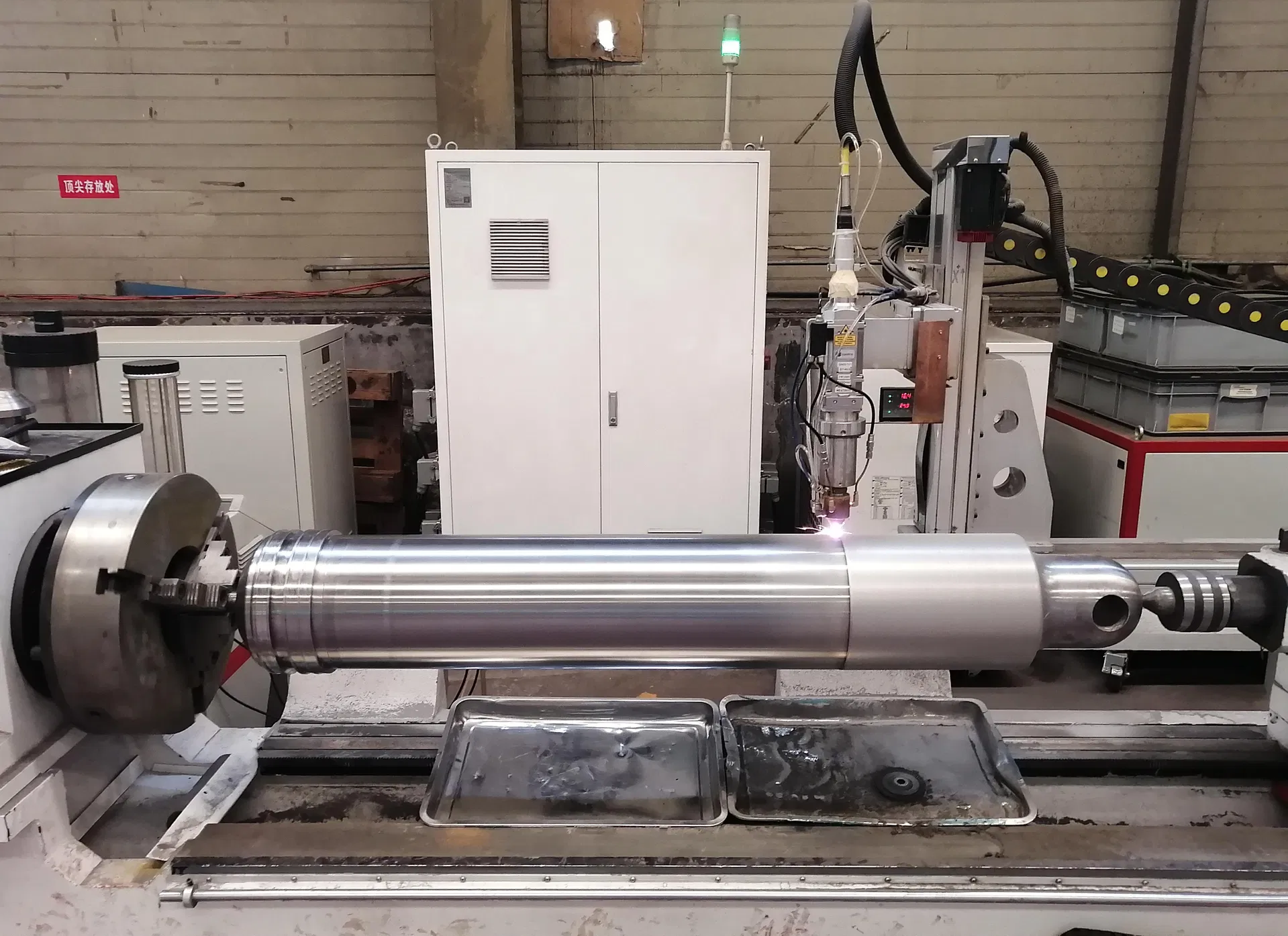

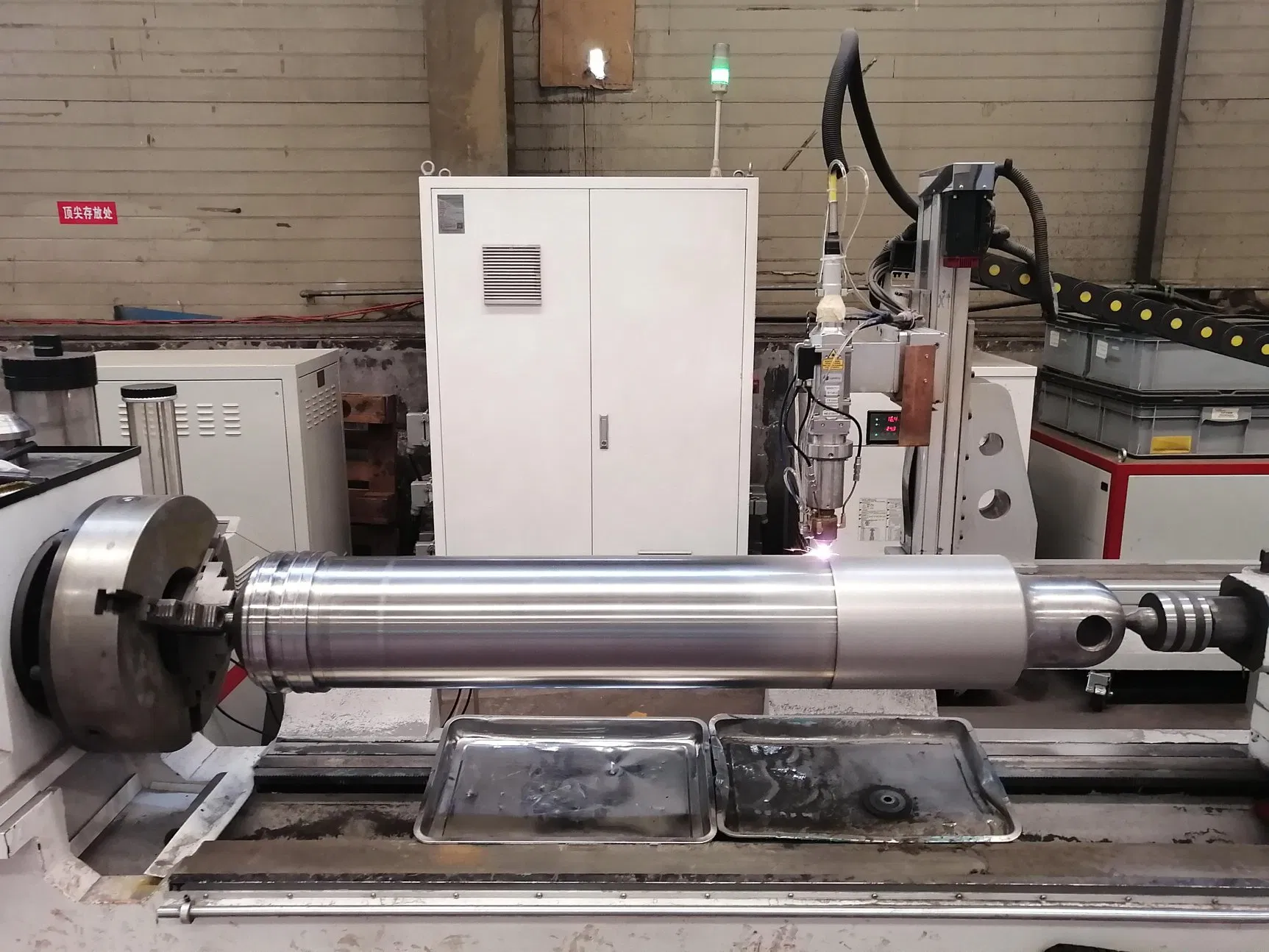

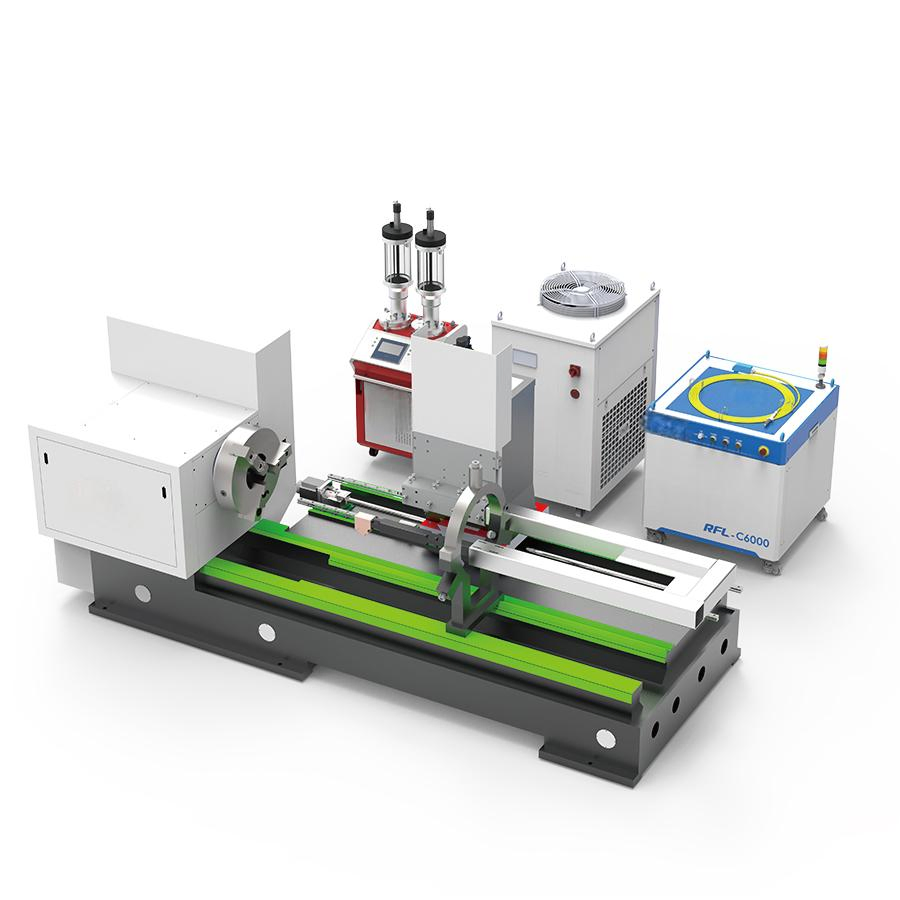

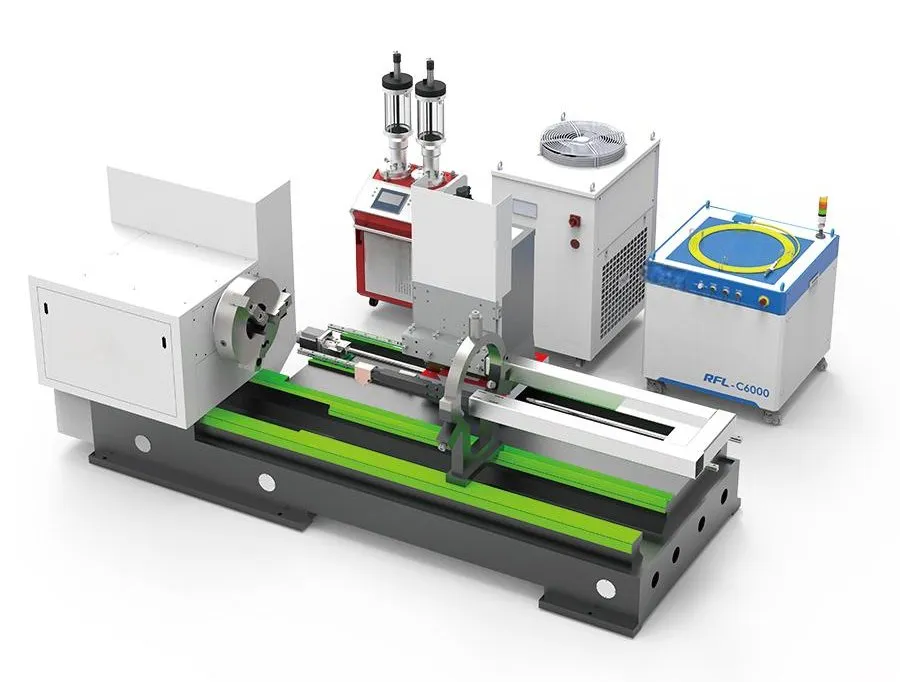

The Ultra-high-speed Laser Cladding System is an advanced composite machine that integrates turning, cladding, and mirror processing into one platform. Operators can complete additive machining, deductive machining, and mirror finishing on shaft parts using just a single clamping setup, eliminating round runout errors and significantly improving coating quality and efficiency.
| Specifications | Details |
|---|---|
| Laser Source | Fiber / Diode laser |
| Laser Power | ≤ 12 kW |
| Processing Length | 3 m |
| Maximum Rotation Diameter | 400 / 600 mm |
| Weight Capacity | 3 t |
| Motion Mechanism | 3+1 Axis |
| Spindle Speed | 1-150 / 1-200 rpm |
| Deposition Efficiency | ≤ 500 cm²/min |
| Layer Thickness | 50 - 1500 μm |
| Substrate Dilution Rate | < 1% |
| Repeat Position Accuracy | ± 0.05 mm |

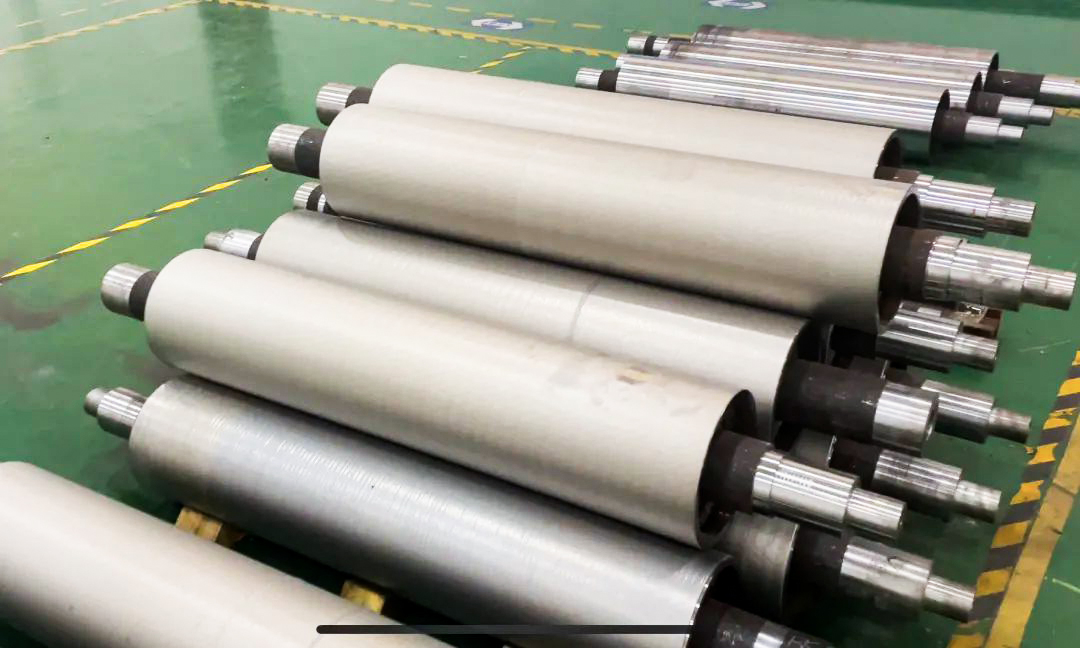

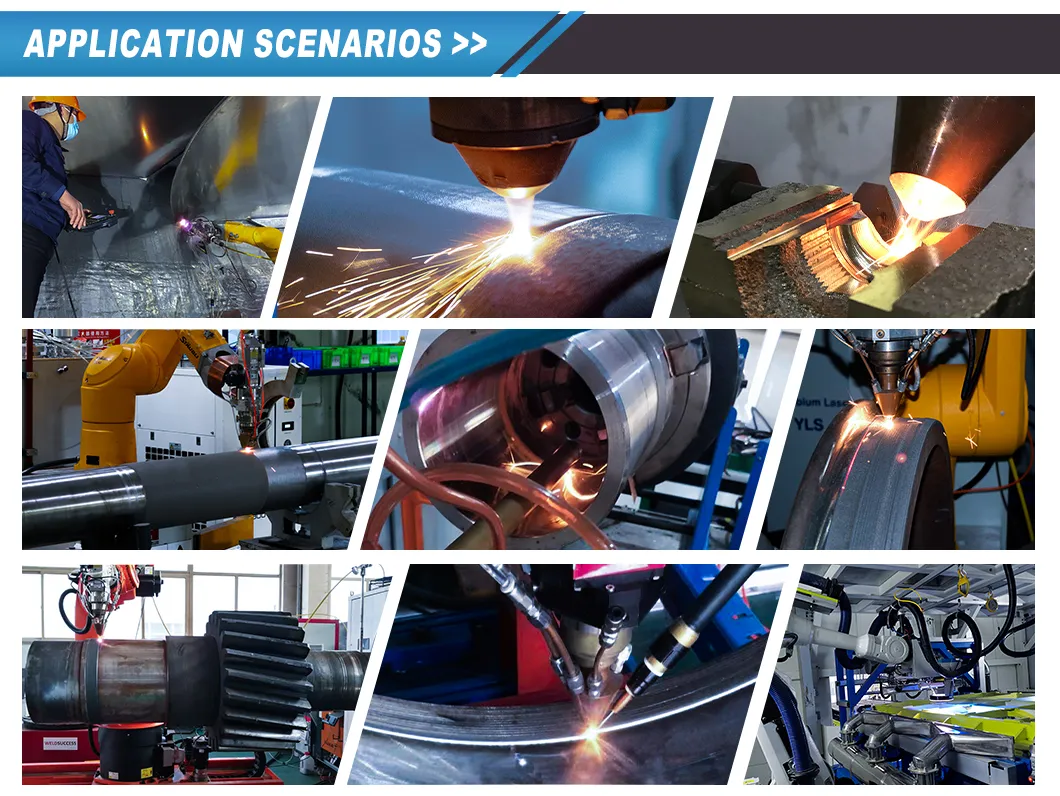

This equipment processes all types of industrial shafts and rolls. It is an essential tool for repair and manufacturing in:
Stop replacing parts so often. Industrial wear and corrosion eat profits every year. Traditional repair methods generate high heat that distorts precision parts. Our system restore factory precision through industry-leading surface strengthening.
