All-in-One Intelligent System for Thin Plate Edge Deburring, Oxide Removal, and Consistent Satin Brushing Treatment

Customization:	Available
After-sales Service:	Onsite and Offsite Service Available
Warranty:	1year

i

Basic Information

Model NO.

XDP-RP

Certification

ISO, CE

Condition

New

Voltage

220V

Application

Metal Sheet

Feed Speed

0.5-6m/Min

Working Width

450mm - 1600mm

Roller Brush Size

Up to 300×400mm

Capacity

100PCS/Month

HS Code

84602990

P

Product Description

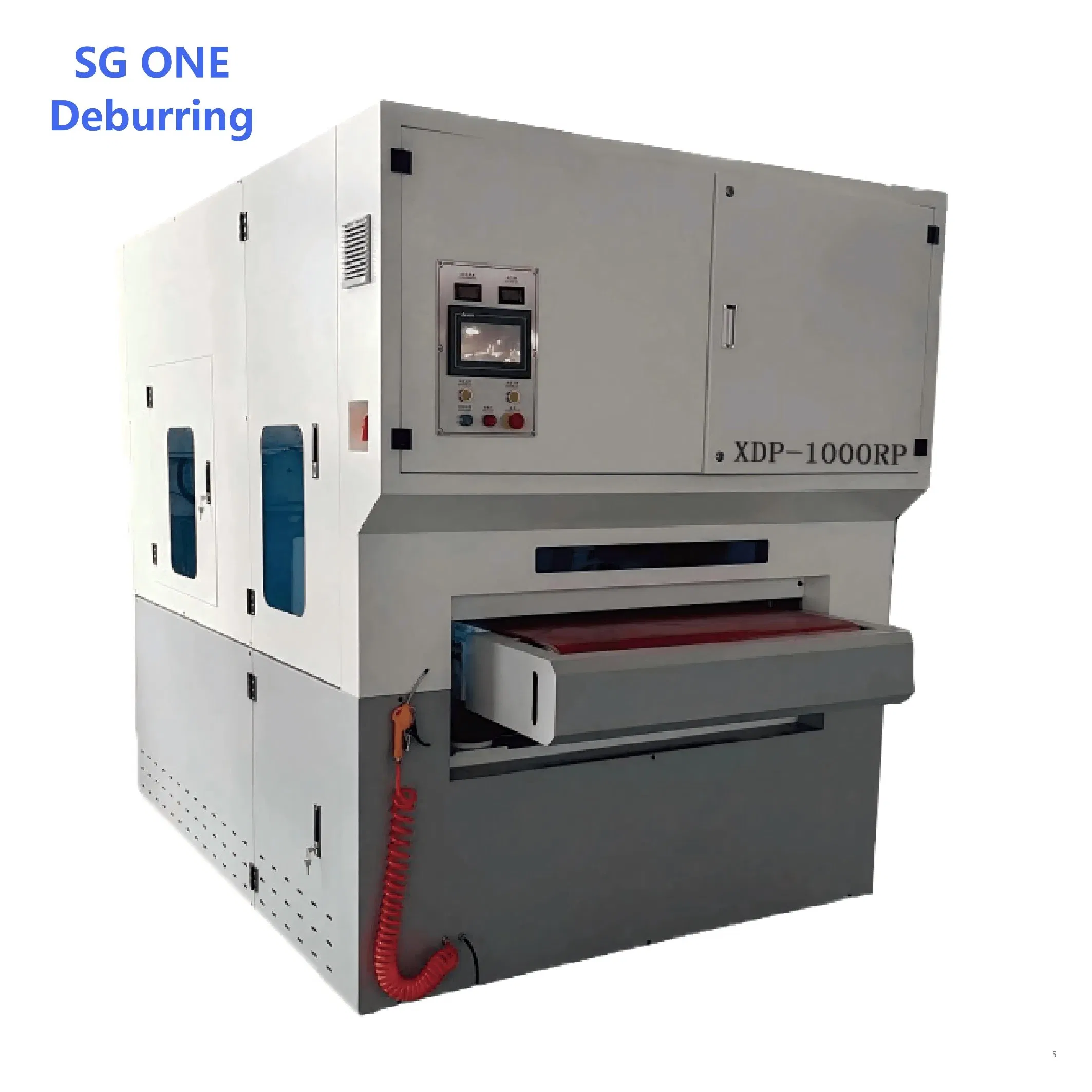

Model: XDP-RP Smart Deburring & Grinding Machine

Designed for precision edge treatment of sheet metal after laser cutting, stamping, and punching operations, this advanced machine delivers efficient deburring, oxide layer removal, and automatic compensation functions. Ideal for sheet metal fabrication industries, it enables flexible manufacturing and intelligent production upgrades.

Key Features

Edge Deburring - Efficiently removes hard burrs from cut edges, enhancing surface quality.
Cutting Residue Removal - Thoroughly eliminates micro-particles and oxides.

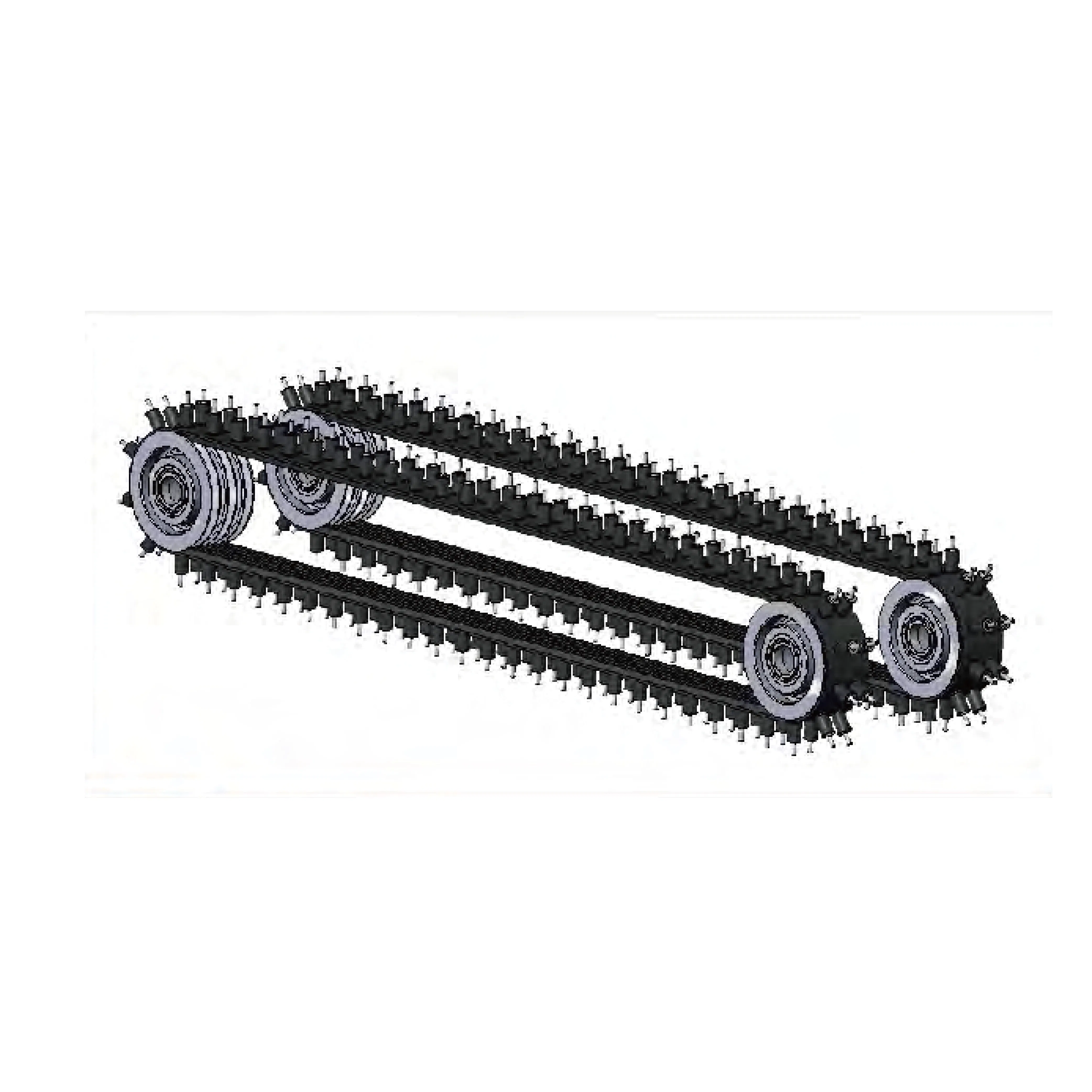

Magnetic Conveyor System - Ensures stable material feeding for consistent results.
Auto Compensation - Automatically adjusts grinding tools to minimize manual intervention.
Consumable Life Monitoring - Real-time tracking of abrasive wear.
Oxide Layer Removal - Effectively strips oxidation films for improved welding/painting.

Compatible Processes

Laser & Plasma Cutting
Flame Cutting
NCT Punching
Die Stamping
Shearing & Punching

Supported Materials

Stainless Steel & Aluminum
Cold-Rolled & Carbon Steel
Coated Sheets & Galvanized Steel

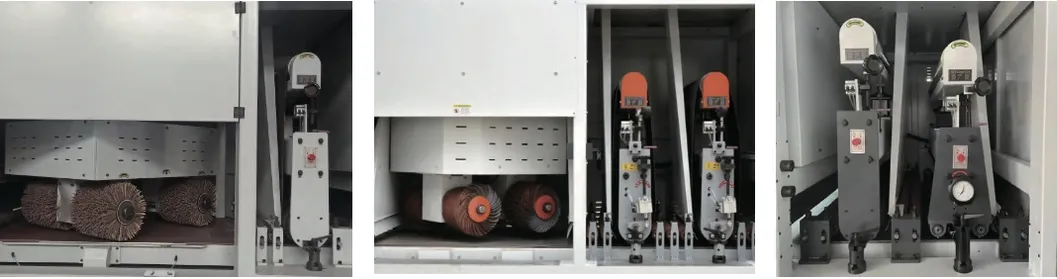

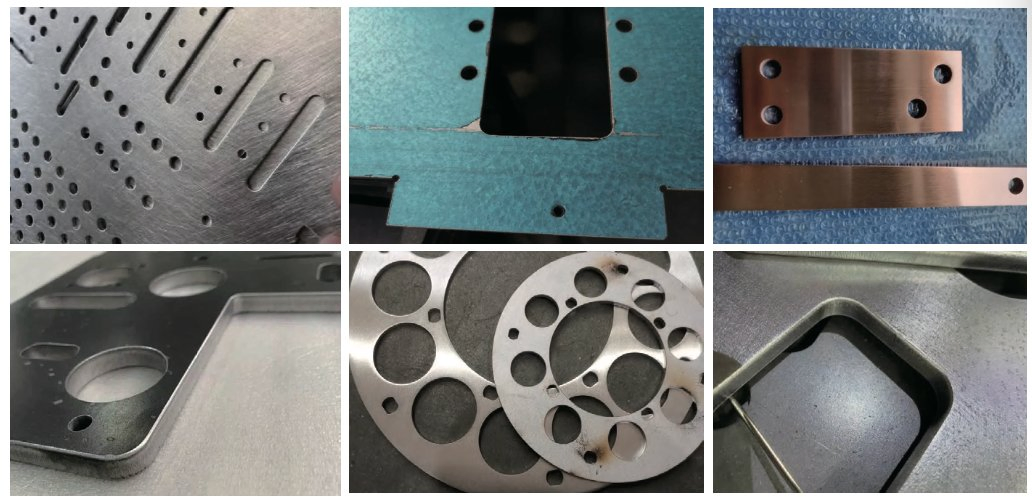

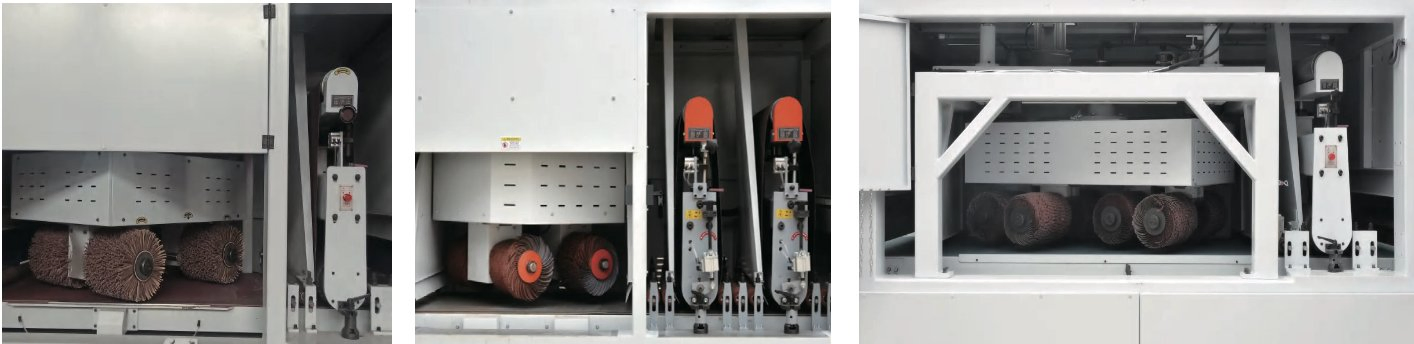

Detail Images & Samples

T

Technical Parameters

Item / XDP-RP	Specification
Working Width	450mm, 800mm, 1000mm, 1300mm, 1600mm
Roller Brush Size	150×250mm, 300×300mm, 300×400mm
Material Thickness	0.5-80mm
Chamfer Range	R0.1-0.5mm
Feed Speed	0.5-6m/min
Roller Speed	9-21r/s
Min Workpiece Size	50×50mm (Suction Type)
