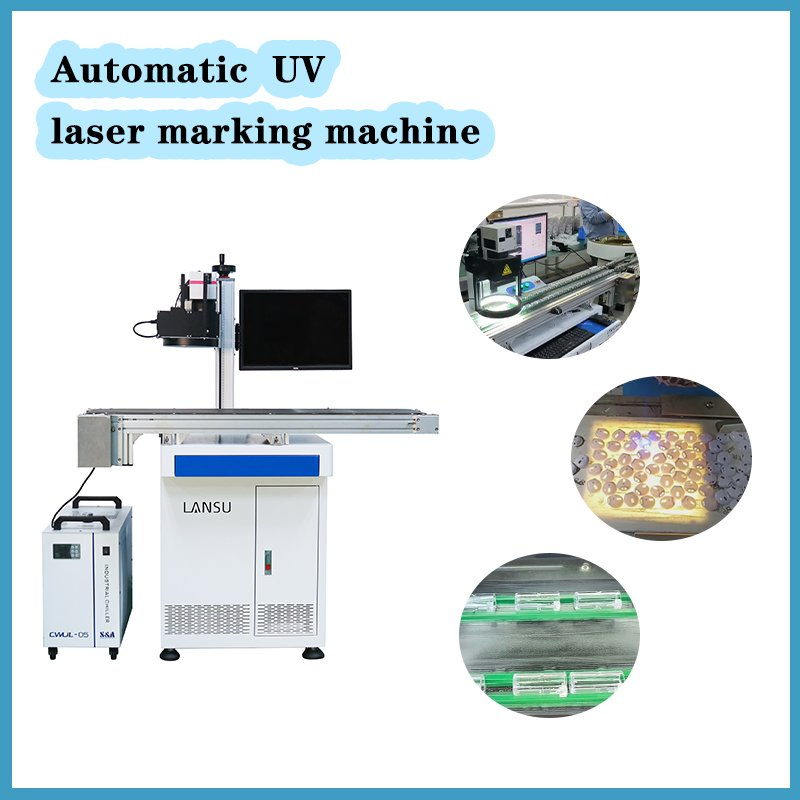

Lansu Vision UV Laser Marking System for Micro Plastic Parts with High Accuracy and CE

1 / 5

Lansu Vision UV Laser Marking System for Micro Plastic Parts with High Accuracy and CE

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Type:

UV Laser Marking Machine

Laser Wavelength:

355mm

Applicable Material:

Plastic

Cooling System:

Water Cooling

Model:

Ls-Sjuv-5/10/20/25W

Laser Power:

5/10/20/25W

Marking Speed:

≤7000mm/S

Minimum Linewidth:

0.01mm

Repeatability:

±0.01mm

Origin:

China

Product Description

Packed size display

Key Product Features

Production Efficiency: Rapid positioning for marking multiple products simultaneously. Compatible with automatic assembly line feeding and visual positioning.

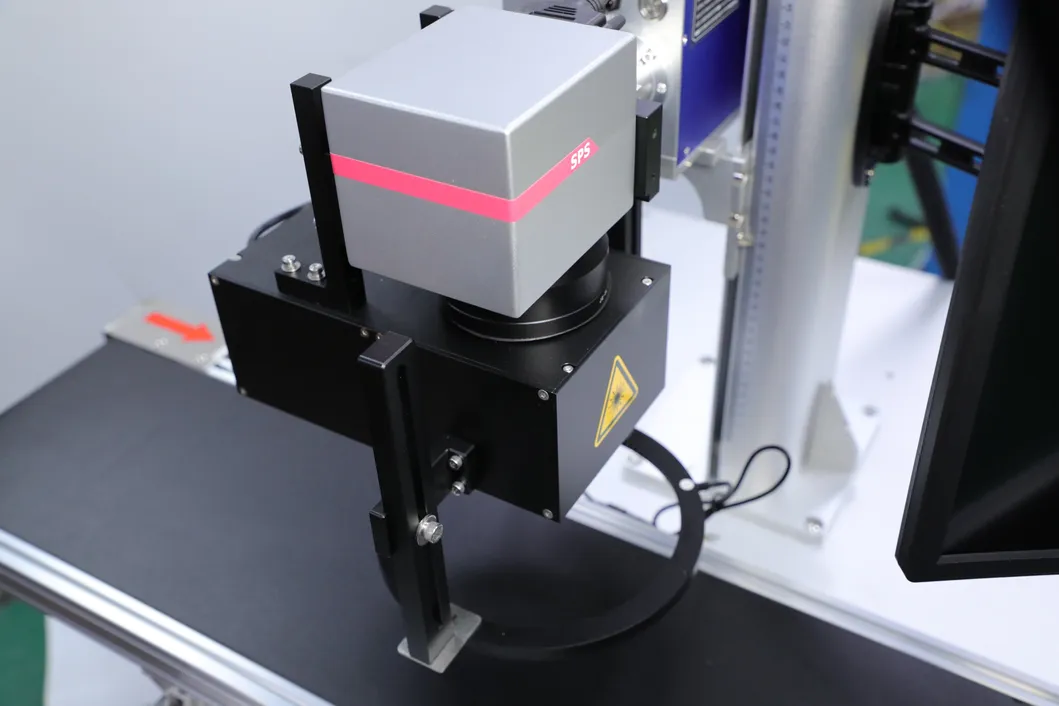

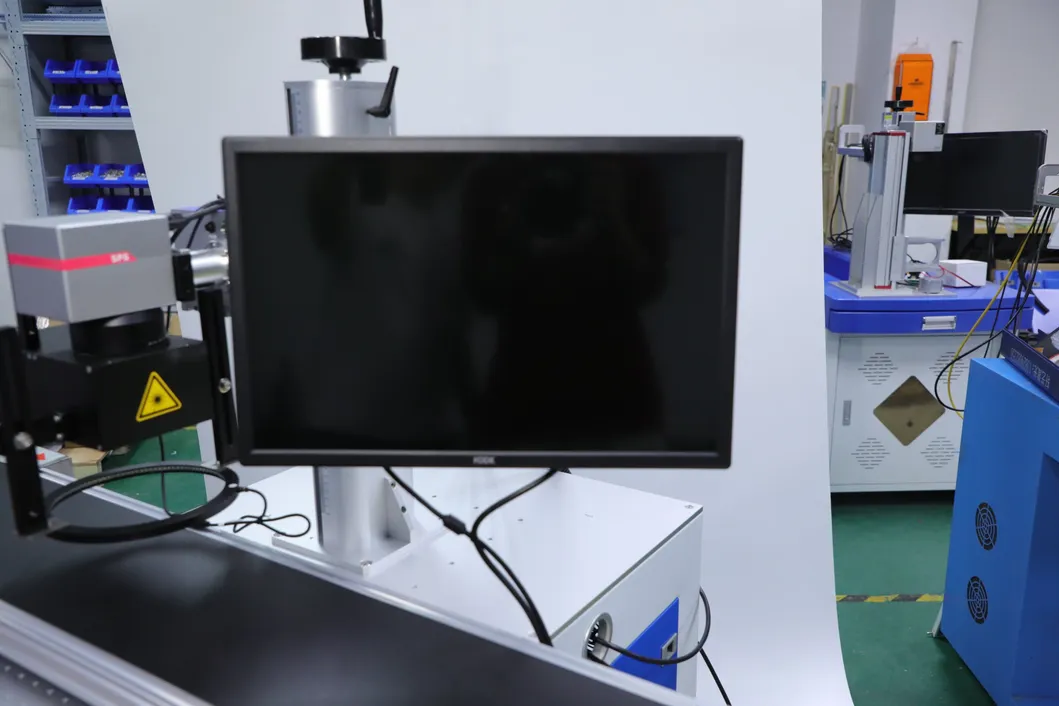

High Precision: Combines marking machine with CCD vision to achieve high-accuracy positioning at any angle, number, or position.
Automation Ready: Works seamlessly with vibration plates, XY platforms, and assembly lines to realize unmanned production and improve consistency.
Flexibility: Easily adjust marking content (text, patterns, QR codes) via computer programming without changing molds.

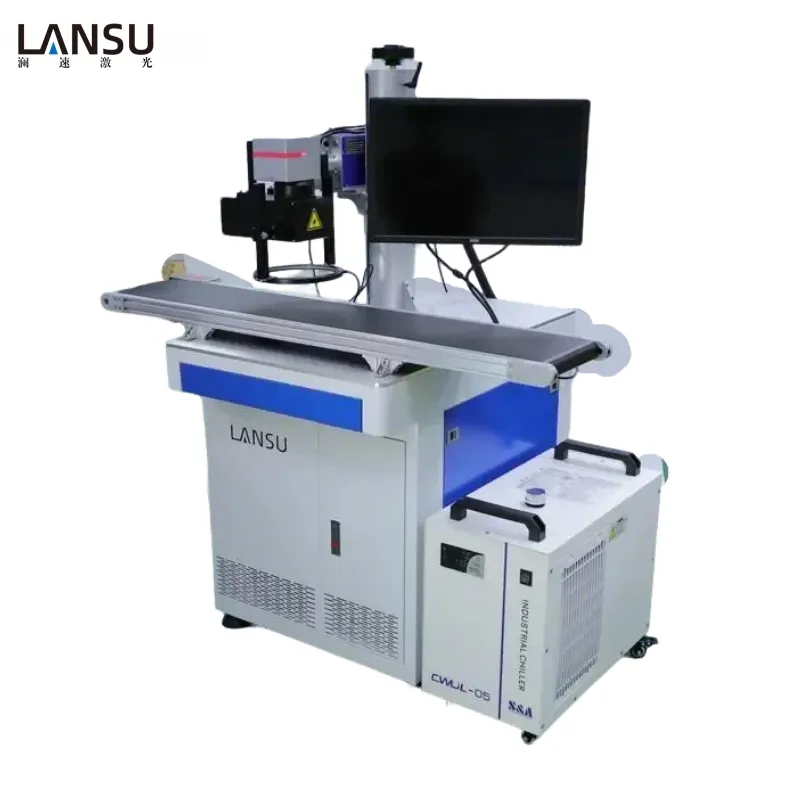

Technical Parameters

Parameter	Specification
Model	LS-SJUV-5/10/20/25W
Laser Power	5/10/20/25W
Marking Area	150mm×150mm (optional)
Marking Speed	≤7000mm/s
Minimum Linewidth	0.01mm
Minimum Character	0.05mm
Repeatability	±0.01mm
Power Supply	AC220V/50Hz
Output	4000 ∽ 10000pcs/h
Capture Time	≤0.2s
Cooling Mode	Water cooling

Applicable Materials

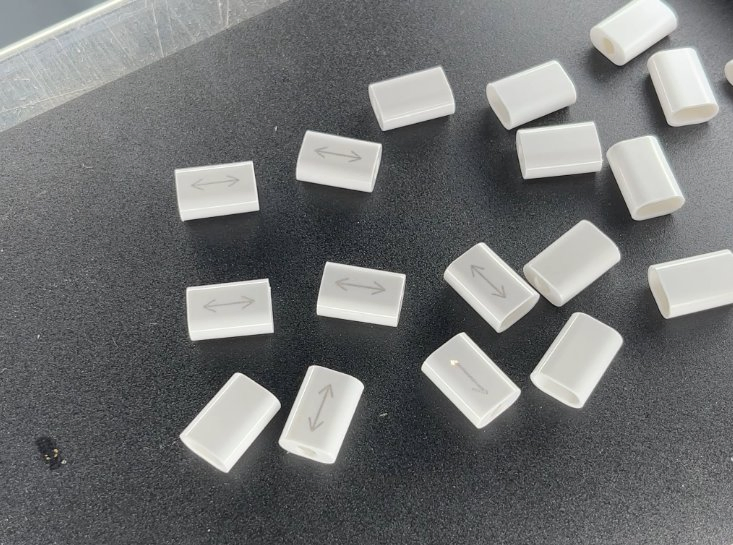

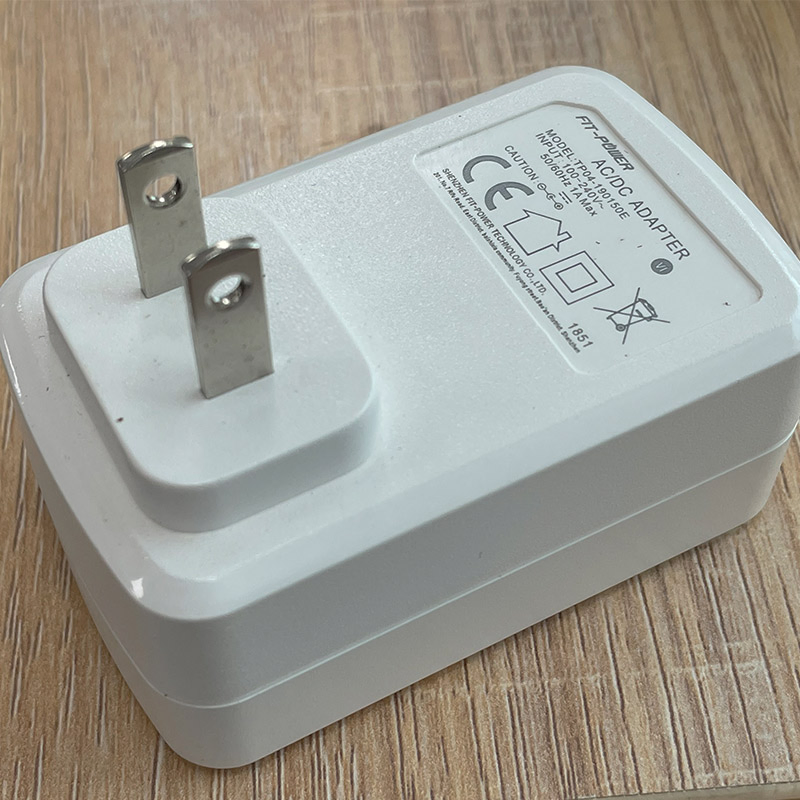

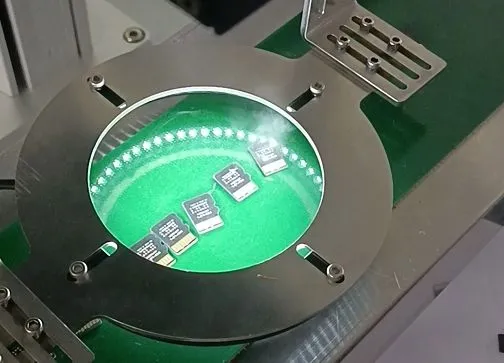

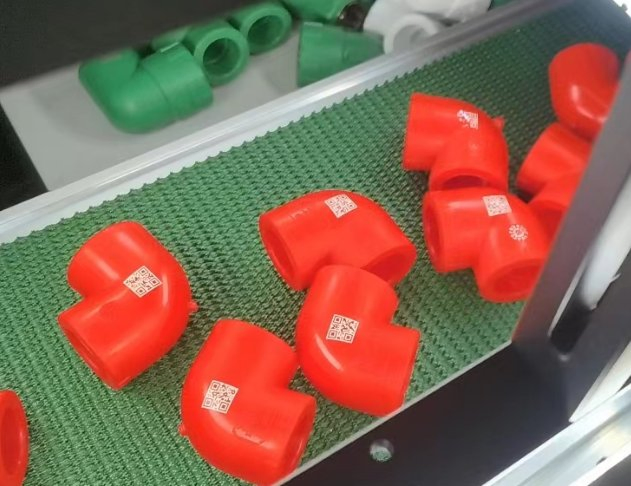

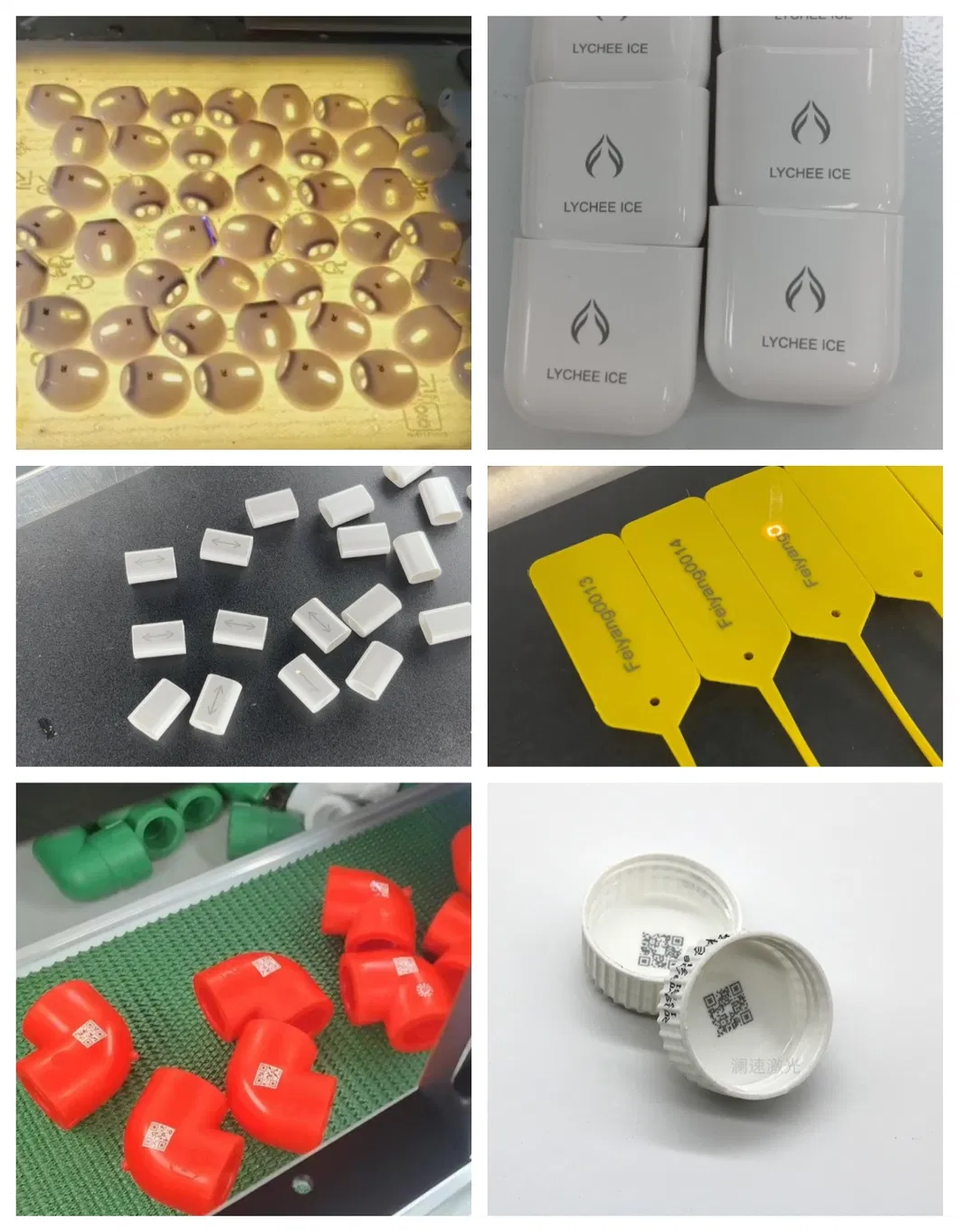

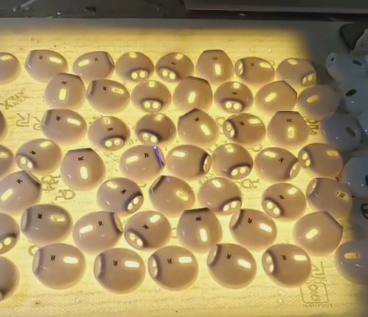

This system is ideal for marking small or extremely small items including IC components, small screws, and resistors. It works perfectly on various plastics such as ABS, PP, PC, PA, TPU, and more, providing high-contrast markings on flat surfaces.

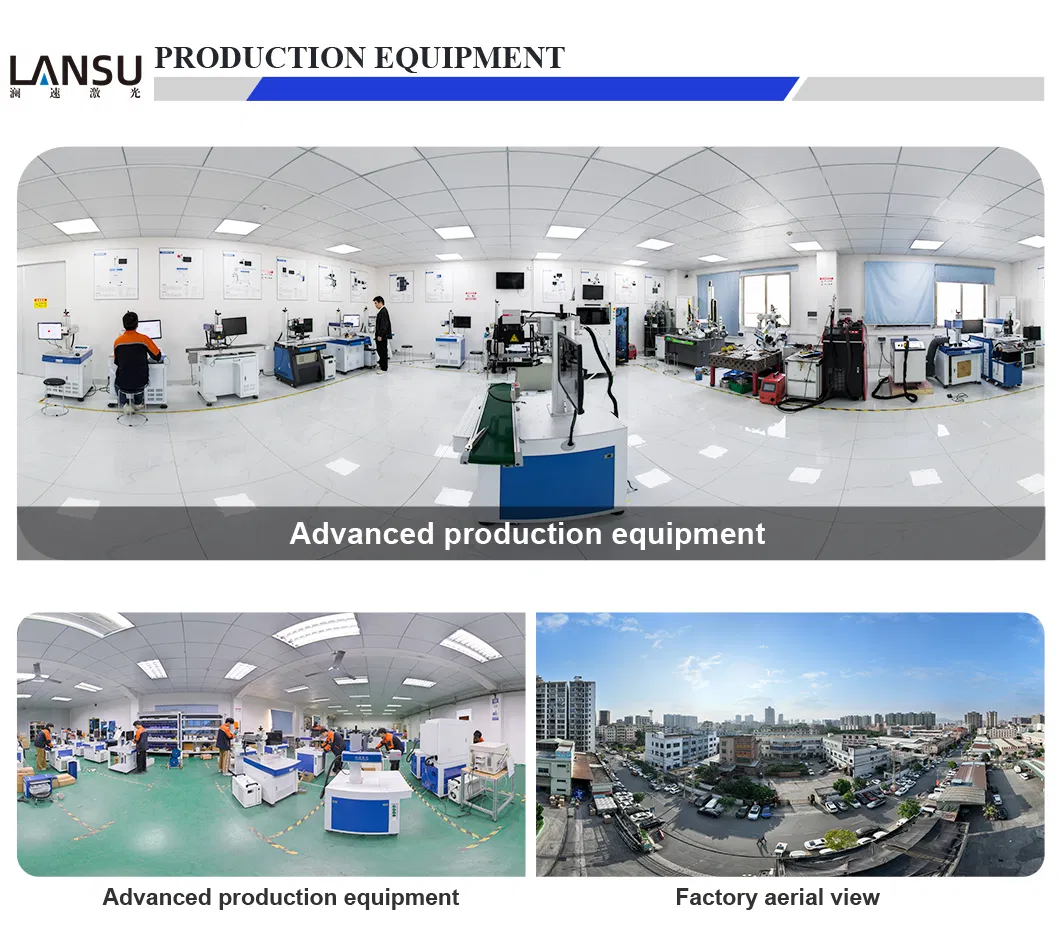

Production & Quality Showcase

Frequently Asked Questions

What materials are best suited for this UV laser marking machine?

The machine is primarily designed for high-precision marking on various plastics (ABS, PP, PC, PA, TPU) and small electronic components like ICs, resistors, and small screws.

How do you ensure the quality of the laser equipment?

We perform a pre-production sample check before mass production and conduct a final inspection for every unit before shipment to ensure stability and performance.

What is the expected lifespan of the laser machine?

Our machines use high-quality components designed for 24-hour continuous operation, with a potential lifespan of up to 100,000 hours.

Can this machine be integrated into an automated production line?

Yes, the system is designed to cooperate with vibration plates, XY platforms, and assembly lines to achieve fully automated and unmanned production.

What makes the vision system special?

The CCD vision system allows for high-precision marking regardless of the angle or position of the product, with a rapid capture time of ≤0.2s.
