Multi-Material Fiber Laser Engraving System for Professional Use

Customization:	Available
After-sales Service:	Online Support or on-Site Service
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.ZXJN-P30WM

Laser VisibilityInvisible

Applicable MaterialMetal

Cooling SystemAir Cooling

Technical ClassContinuous Wave Laser

Laser WavelengthFiber Laser

Laser ClassificationSolid Laser

TypeOptical Fiber Laser Marking Machine

Marking MethodScanning Marking

Laser Power20W 30W

Marking Depth0.01-0.5mm

Production Capacity5000sets/Year

Product Description

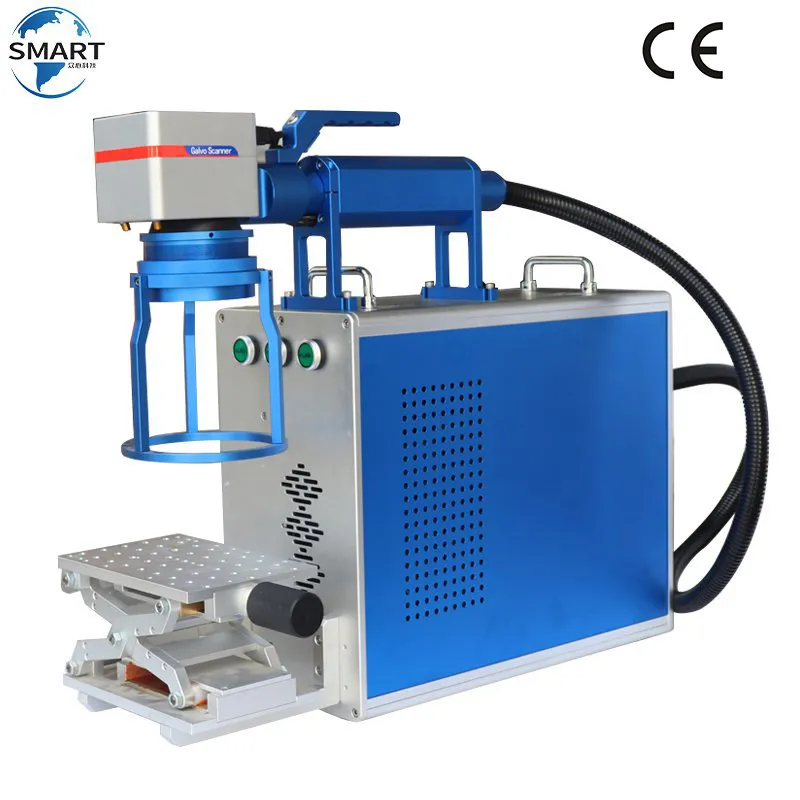

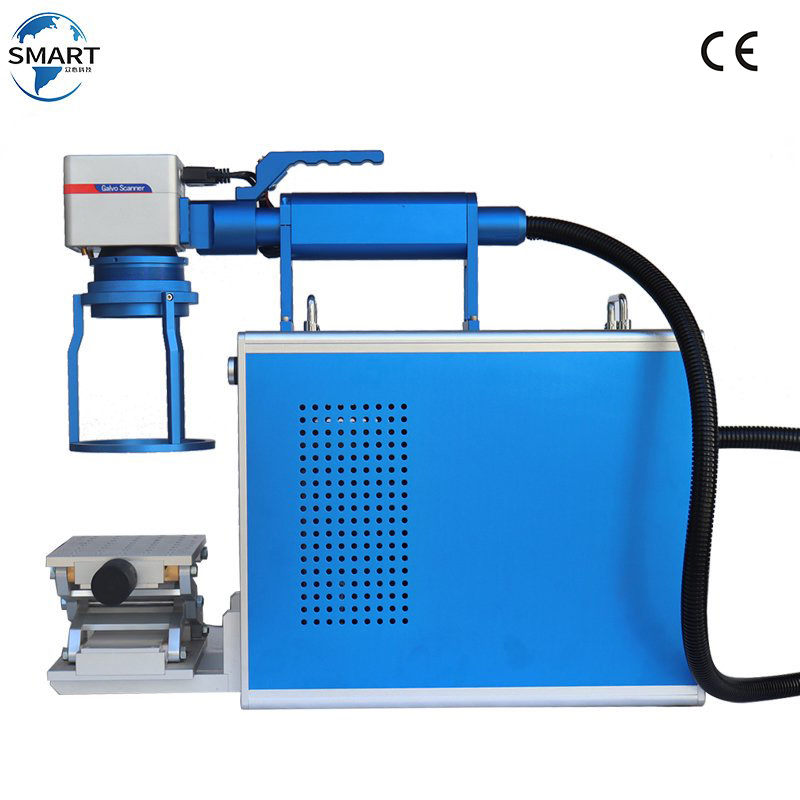

Portable Fiber Marking Machine

Model: ZXJN-P30WM

Laser power: 20W/30W (210lens)

Marking range: 150*150mm

Marking line width: 0.01mm

Engraving line speed: 10-7000mm/s

Repeatability: ±0.002mm

Laser wavelength: 1064nm

Lifespan: ≥100000 hours

Cooling method: Wind cooling

Support format: BMP/DXF/AI/PLT

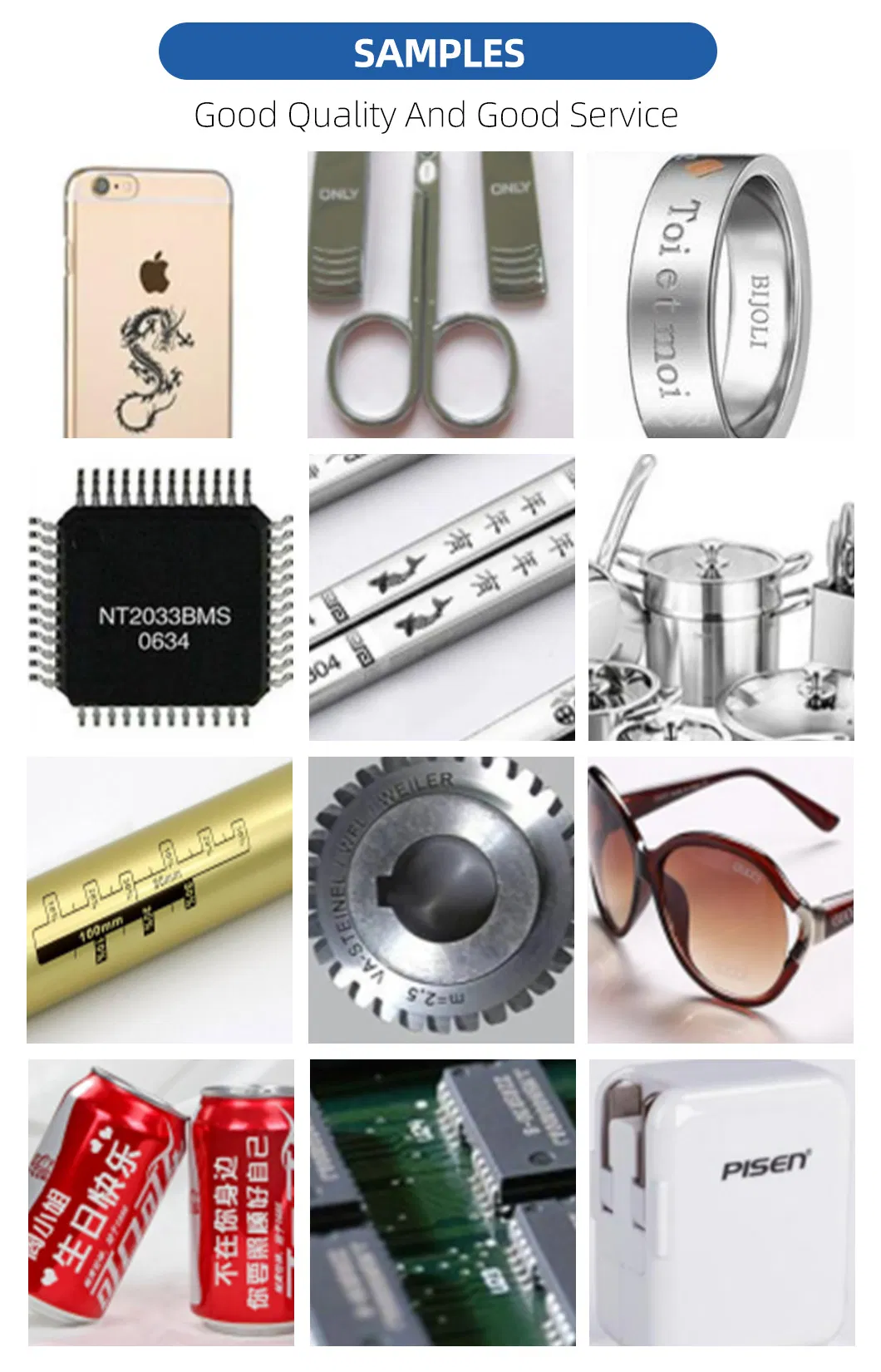

Sample Display

Applicable materials: Various metals (stainless steel, iron, copper, aluminum, magnesium, zinc, etc.), engineering plastics, electroplating materials, coating materials, spraying materials, inks, ABS, plastic rubber, epoxy resin, and more.

Technical Parameters

Laser Type	Wavelength	Principle	Applicable Products	Features
UV	355nm	Photochemical ablation by breaking atomic bonds for gasification.	Flexible PCB, polymers, Glass, Ceramics, Metal	Cold light source, small spot, fine marking, low power consumption.
Fiber	1064nm	Physical/chemical surface changes for permanent marks.	Metals, Partial Plastics, Paper, Leather, Polymers	High efficiency, air-cooled, long life, high repetition frequency.
CO2	10.6um	Thermal energy converts surface to melted/vaporized state.	Wood, Glass, Paper, Rubber, Crystal, Ceramics	Clear, permanent, fast, maintenance-free, low cost.
Green light	532nm	Side pumping technology.	Gold, Silver, Reflective materials, Plastic	Concentrated energy, high beam quality, clear contrast.

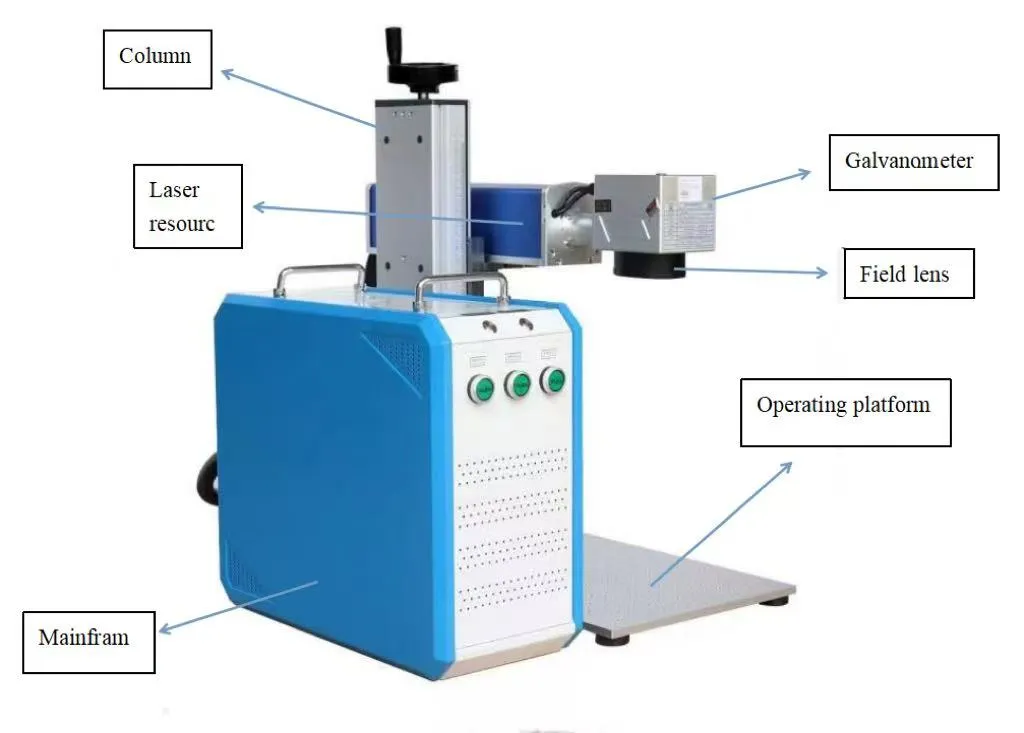

Key Components

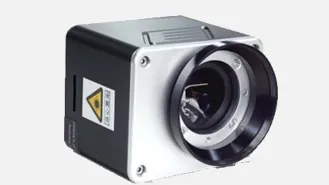

Galvanometer: High-performance micro motor, fast speed, stable operation.

Field Lens: Precise range, uniform lighting, challenge-resistant.

Lifting Column: Precise rulers for accurate positioning and smooth movement.

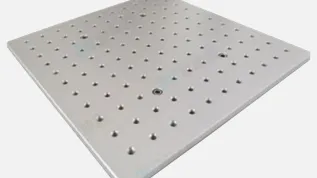

Workbench: 25x25 hole spacing for professional modular positioning.

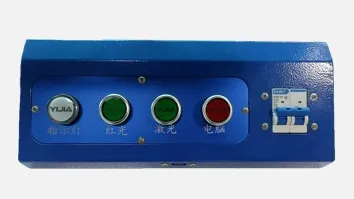

Control Panel: Multilingual customization, humanized switches, USB interface.

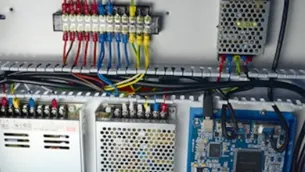

Circuit Design: Standardized installation for safety and long-term efficiency.

Scenarios & Support

Frequently Asked Questions

What is the delivery time for the machine?

Standard models usually take 7-15 days. Customized models are typically delivered within 15-30 working days.

How do I know which machine is suitable for me?

Please provide your material type, desired marking effect, maximum material size, and required marking/cutting thickness so we can recommend the best solution.

How do you provide after-sales service and installation?

We provide training videos and English manuals. Our engineers offer remote technical guidance via email, phone, or messaging apps. On-site engineering support is available if required.

What is the warranty period and coverage?

The quality guarantee period is 12 months. Except for man-made damage, we provide spare parts free of charge during this period.

Can you provide OEM/ODM services?

Yes, we offer customized solutions for OEM and ODM projects, including logo customization and specific technical configurations.

Are you a manufacturer or a trading company?

We are a manufacturer with 11 years of experience, combining manufacturing expertise with raw material development to offer competitive pricing.
