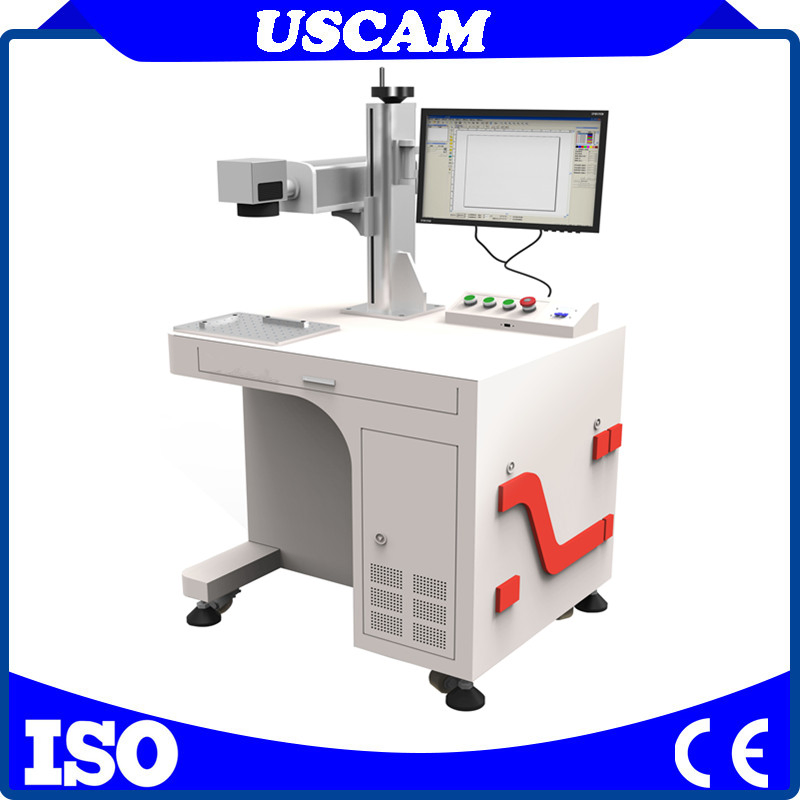

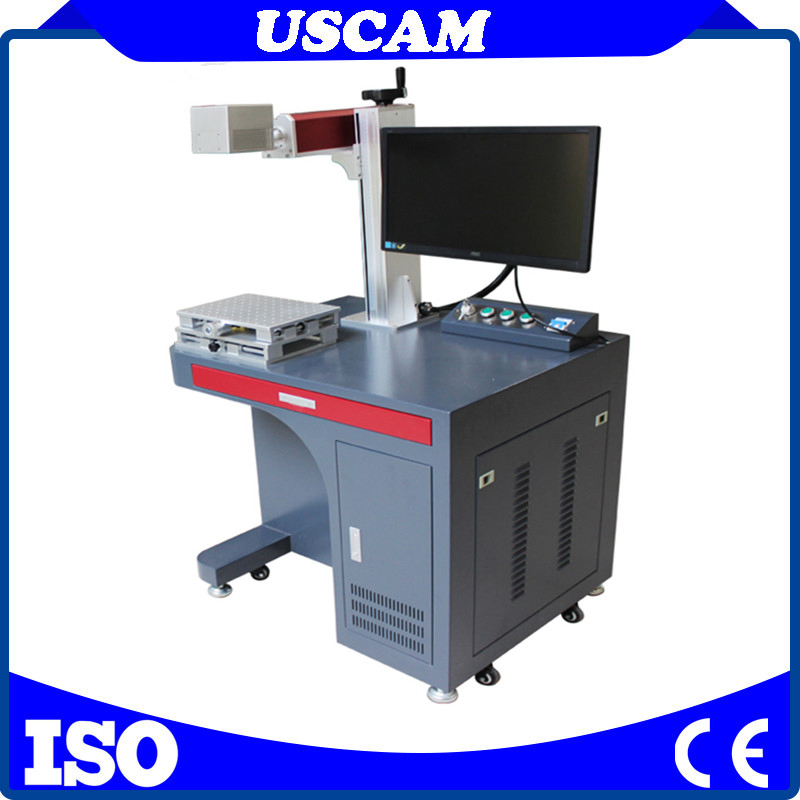

Non Metal Laser Engraving CNC Marking Equipment System

Customization: Available
Laser Visibility: Visible
Applicable Material: Metal and Non-Metal

Product Description

i

Basic Specifications

Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser (1064nm)
Laser Classification
Free Electron Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Mask Pattern Marking
Model
Usf-20W
Laser Power
20W (Optional: 10W/30W/50W)
Power Brand
Raycus (Optional: Ipg, Max)
Marking Area
110X110mm / 200X200mm
Software
Ezcad
Laser Life
100,000 Hours
Control Card
Jcz
Origin
China
HS Code
8456110090
Capacity
3000 Units/Year

Product Description

Non-metal laser engraving CNC marking equipment system: Fiber laser marking machine is designed to make non-contact permanent marking on a variety of metal and non-metal material surfaces. It is compatible with stainless steel, aluminum, brass, copper, silver, gold, and non-metals such as ABS, acrylic, Nylon, PVC, marble, and ceramic.

This system supports text, numbers, logos, Bar codes, QR codes, serial numbers, and images. Real-time design allows for instant marking which is simple, fast, exquisite, and highly efficient. It significantly enhances product branding by marking fine, permanent lines.

Technical Parameters

NO Model Parameter Specifications
1Laser power10W/20W/30W/50w/60w
2Working area100*100 / 200*200 / 300*300mm (Optional)
3Cooling systemAir cooling
4Table TypeAluminum alloy table
5Control softwareEZCAD control software
6Operation systemWindows XP / Windows 2000 / 7 / 10
7Laser Wavelength1064nm
8Format supportBMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc.
9Life span100,000 hours
10Marking speed≤7000mm/s
11Min line width0.01mm
12Repeatability±0.002mm

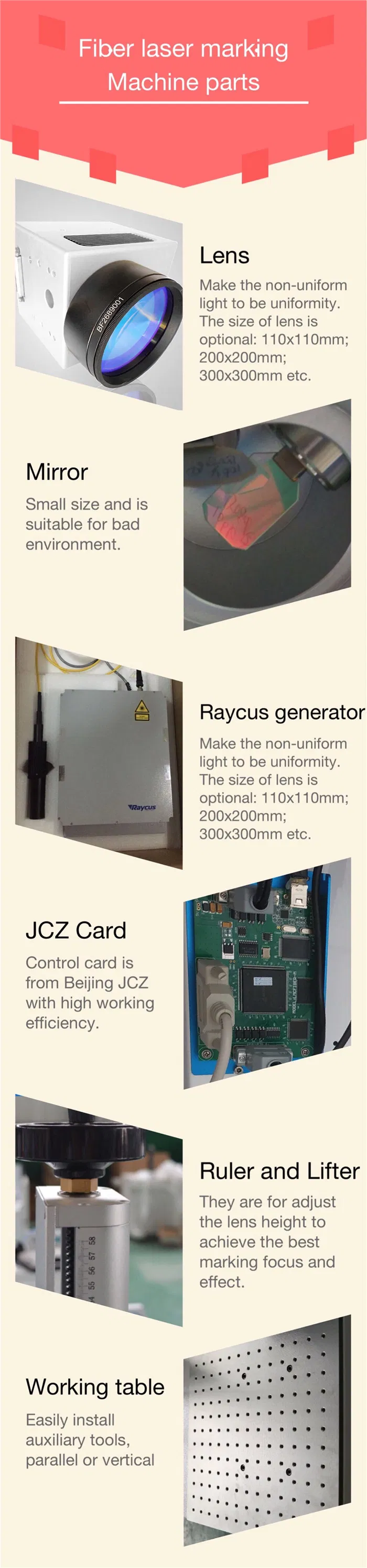

Detailed Technical Chart

Applications & Materials

Widely used in integrated circuit chips, computer accessories, industrial bearings, watches, electronic products, aerospace devices, auto parts, home appliances, hardware tools, molds, cables, food packaging, jewelry, and more.

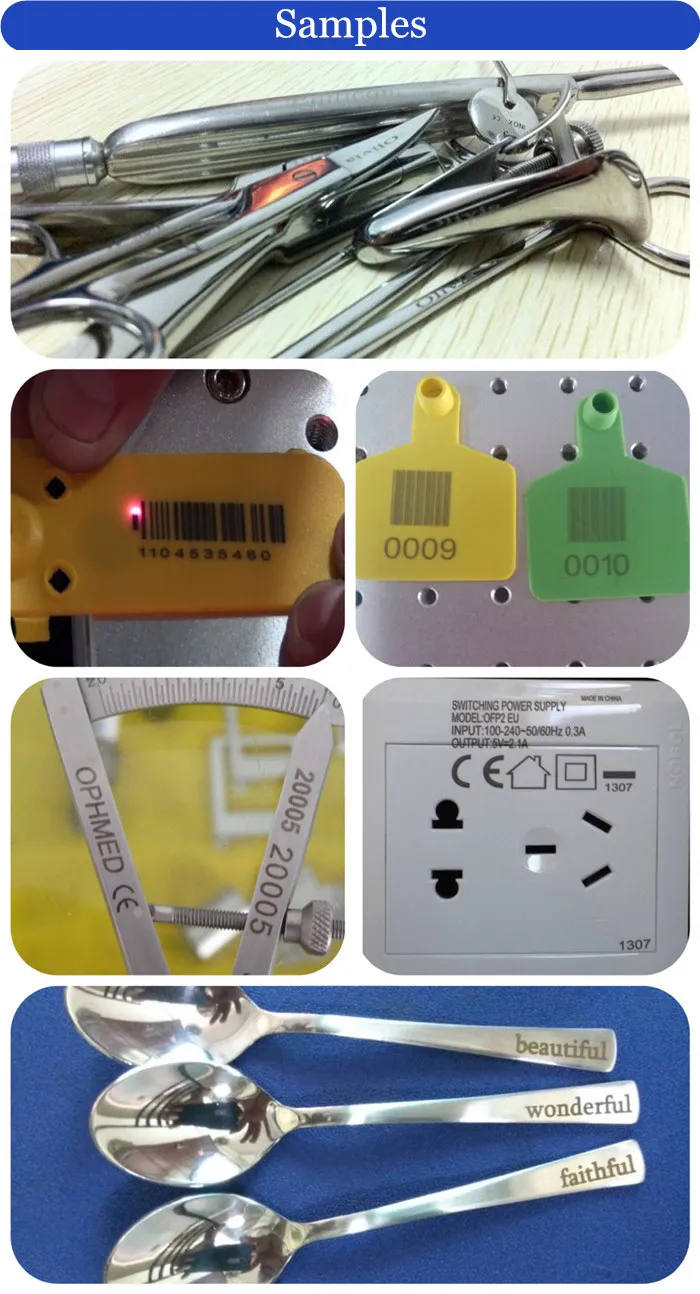

Application Examples
Material (Non-Metal) CO2 Laser Material (Metal/Plastic) Fiber Laser
Wood / AcrylicAluminum / Stainless Steel
Fabric / GlassABS / Brass
Ceramic / LeatherCopper / Carbon Fiber
Rubber / PaperNylon / PET
Material Comparison
?

Frequently Asked Questions

What is the maintenance requirement for this machine?
The system uses air cooling and a solid-state fiber laser source, meaning it is virtually maintenance-free with no water chillers or frequent bulb replacements required.
How long does the fiber laser source last?
The high-quality fiber laser source has an estimated life span of approximately 100,000 hours, ensuring long-term reliability for industrial production.
Can this machine mark on curved surfaces?
While standard marking is for flat surfaces, the system can be integrated with a rotary axis for marking cylindrical objects like rings, tubes, and pipes.
Which software is used and is it difficult to learn?
The machine uses EZCAD software, which is industry-standard, user-friendly, and supports various file formats like DXF, AI, and PLT from common design software.
What materials are best suited for the Fiber Laser version?
Fiber lasers are exceptionally effective for all types of metals (steel, brass, aluminum) and specific plastics like ABS and Nylon where high contrast is needed.
Is the marking permanent?
Yes, the laser marking is a non-contact, permanent process that resists wear, chemicals, and heat, making it ideal for serial numbers and branding.
