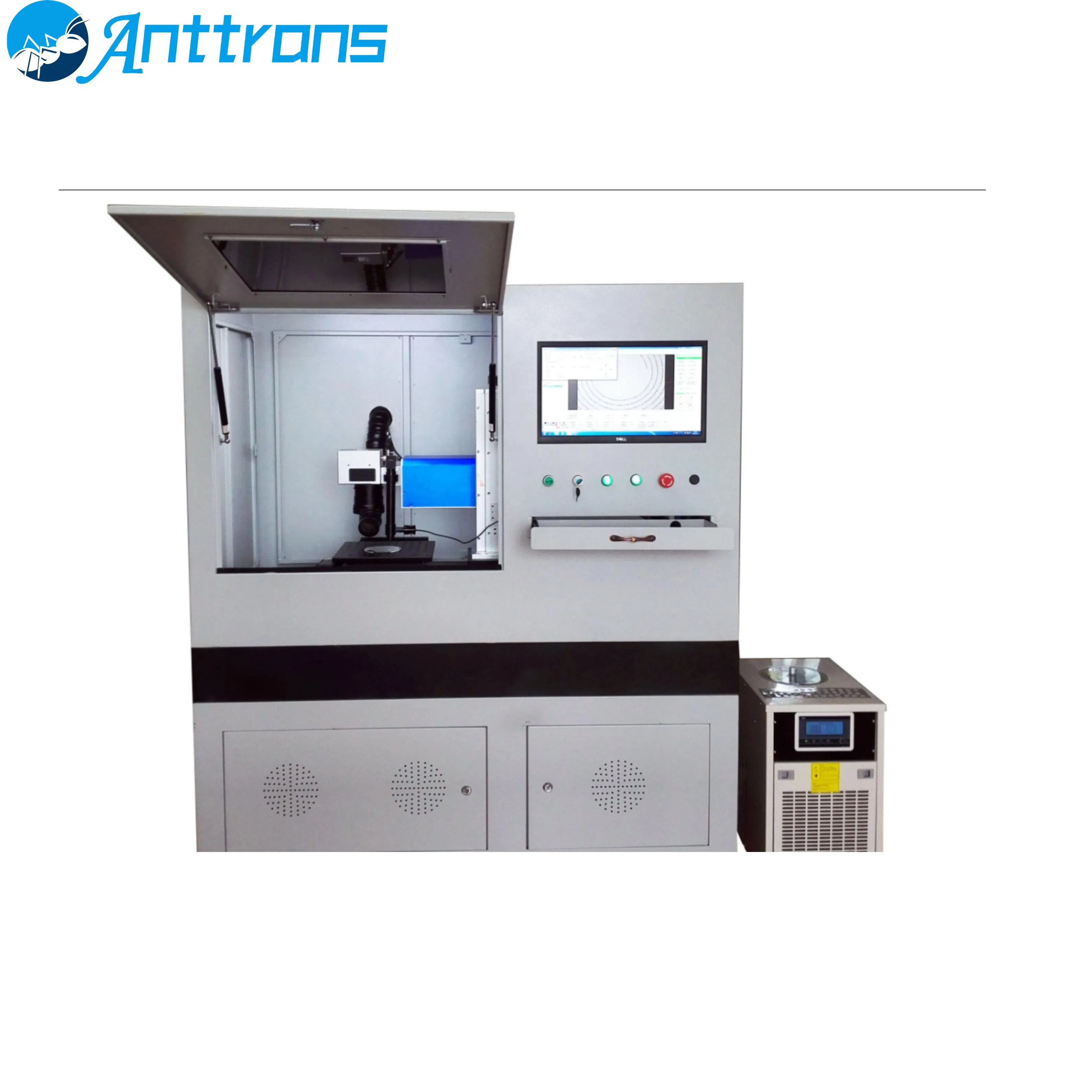

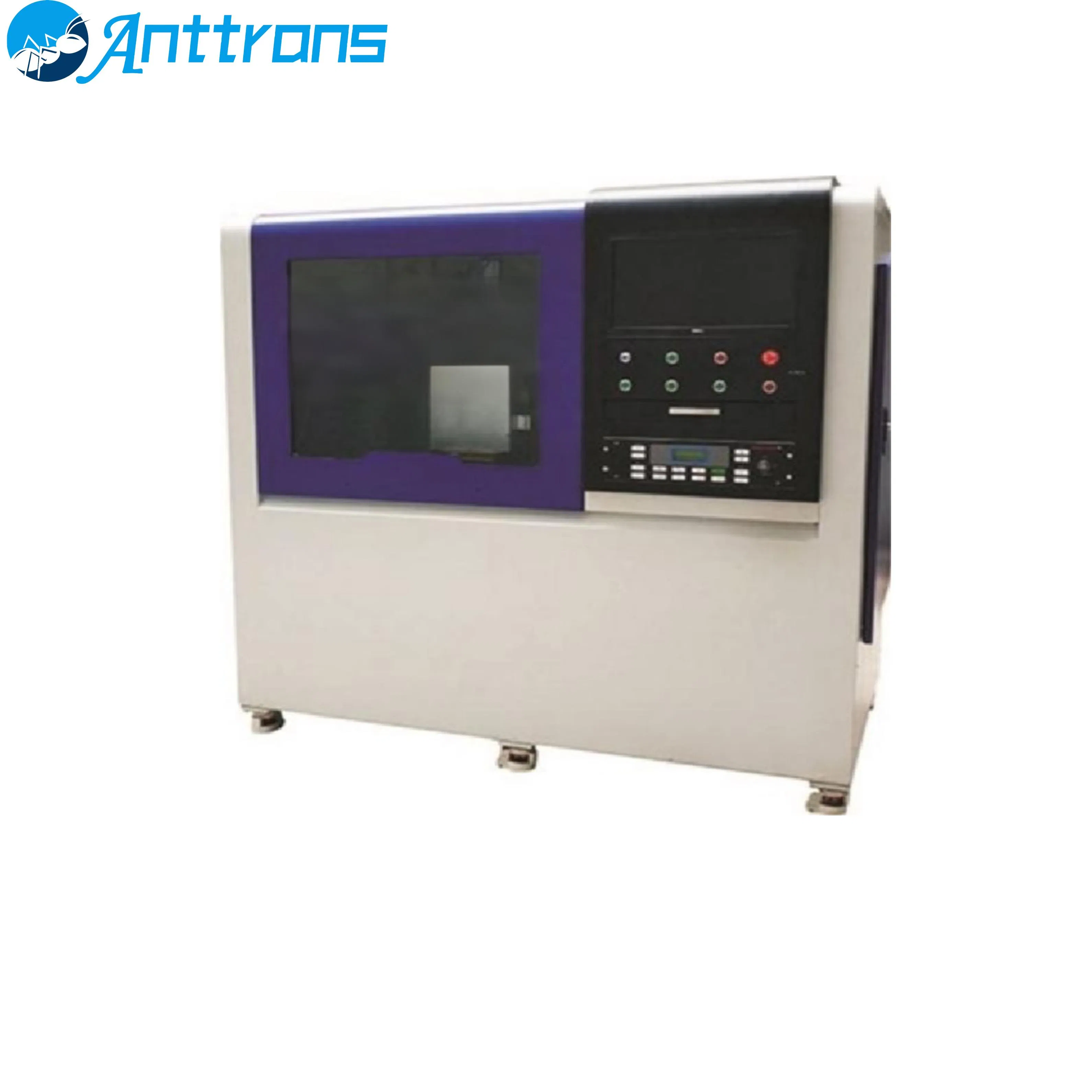

Robust Laser Micro-Machining Equipment/Micro Nozzle Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Overview

Basic Info.

Model NO. AT-61163

Origin China

Packaging & Delivery

Package Size 150.00cm * 90.00cm * 150.00cm

Gross Weight 2000.000kg

Product Features

High-energy density and stable ultraviolet laser directly ablates and vaporizes materials, with a μm-level heat-affected zone and a minimum processing spot size of 5μm.
A high-resolution camera, in conjunction with a high-precision linear motor-driven platform, enables sub-micron-level high-precision alignment of the center of circular holes in workpieces.
The high-resolution camera, paired with a precision Z-axis, achieves high-precision focusing to ensure stable and repeatable processing techniques.
A sub-micron-level runout spindle holds the workpiece for rotation, enabling high-speed, high-precision, and high-surface-finish micro-machining.
An auxiliary W-axis allows for the processing of straight holes and inverted taper holes.
The system utilizes a marble tabletop to enhance overall system stability, with all mechanical components carefully selected to ensure long-term precision.
Minimum processing hole diameter of 5μm, controllable hole shape, capable of processing both tapered and straight holes with a depth-to-width ratio > 10:1.

Product Parameters

Category	Parameter	FM-UVD7
Laser	Wavelength	355nm
Laser	Power	>7W@40 kHz (3~40 W optional)
XY Stage	Travel	300*300mm
XY Stage	Positioning Resolution	0.1μm
XY Stage	Repeatability	≤±1μm
XY Stage	Positioning Accuracy	≤±3μm
Z-axis	Travel	200mm
Z-axis	Repeatability	≤±3μm
Z-axis	Positioning Accuracy	≤±5μm
W-axis	Angular Range	±10°
CCD Monitoring	Camera	5-megapixel
CCD Monitoring	Optical Magnification	10X
Spindle	Circular Runout	<1μm
Capability	Minimum Spot Size	5μm (10μm optional)
Capability	Hole Diameter Accuracy	±3μm (hole <0.5mm, depth <0.5mm)
Capability	Processing Materials	Glass, organics, metals, ceramics, etc.
Others	Cooling	Water-cooled
Others	Power Consumption	≤2000W
Dimensions	Size	1200 * 1600 * 1900mm
Weight	Weight	1200Kg

Product Applications

Automotive Industry

GDI Fuel Injectors: Processes orifices with diameters of 50-200μm to improve fuel atomization.
Diesel Fuel Injectors: Processes micro-holes with diameters of 30-100μm for high-pressure injection.
Urea Injectors: Processes orifices with diameters of 100-300μm to meet emission standards.

Aerospace

Aircraft Engine Fuel Nozzles: Processes micro-holes with diameters of 50-150μm for high-pressure environments.
Rocket Propellant Nozzles: Processes micro-holes with diameters of 100-500μm for precise propellant control.

Medical Equipment

Nebulizer Nozzles: Processes micro-holes with diameters of 10-50μm for drug atomization.
Microfluidic Chip Nozzles: Processes micro-holes for biological sample analysis.

Electronics and Precision Instruments

Inkjet Printhead Nozzles: Processes micro-holes with diameters of 10-30μm for high resolution.
Sensor Nozzles: Processes micro-holes for pressure balancing and fluid control.

Company Profile

Our company generally operates some general projects: technical services, technology development, technology consulting, technology exchange, technology transfer, technology promotion: computer Wholesale of software, hardware, and auxiliary equipment: Retail of computer software, hardware, and auxiliary equipment: Import and export of goods: Import and export of technology: Credit Information consulting services (excluding licensing information consulting services): graphic and textual design and production: sales of functional glass and new optical materials Selling; Sales of optical instruments; Sales of specialized equipment for semiconductor devices: sales of experimental analysis instruments: sales of CNC machine tools: sales of instruments Sales of instruments and meters; Sales of electronic components and electromechanical equipment; Sales of metal cutting and welding equipment; Fiber optic sales;Sales of photovoltaic equipment and components; Sales of optical glass; Sales of electronic specialized materials.

Detailed Photos

Frequently Asked Questions

Q1: What is the minimum processing hole diameter of this equipment? The minimum processing hole diameter is 5μm, with a controllable hole shape.

Q2: What types of materials can be processed? The system is capable of processing glass, organic materials, metals, ceramics, and more.

Q3: What kind of laser technology is used in this system? It uses a high-energy density and stable 355nm ultraviolet (UV) laser for precise ablation and vaporization.

Q4: Does the machine support both straight and tapered hole processing? Yes, the auxiliary W-axis allows for the processing of both straight holes and inverted taper holes.

Q5: How does the system ensure long-term stability and precision? The system utilizes a marble tabletop and carefully selected mechanical components to enhance stability and ensure long-term precision.

Q6: What industries typically use the Micro Nozzle Processing System? Main applications include the automotive industry (fuel injectors), aerospace (engine nozzles), medical equipment (nebulizers), and electronics (inkjet printheads).
